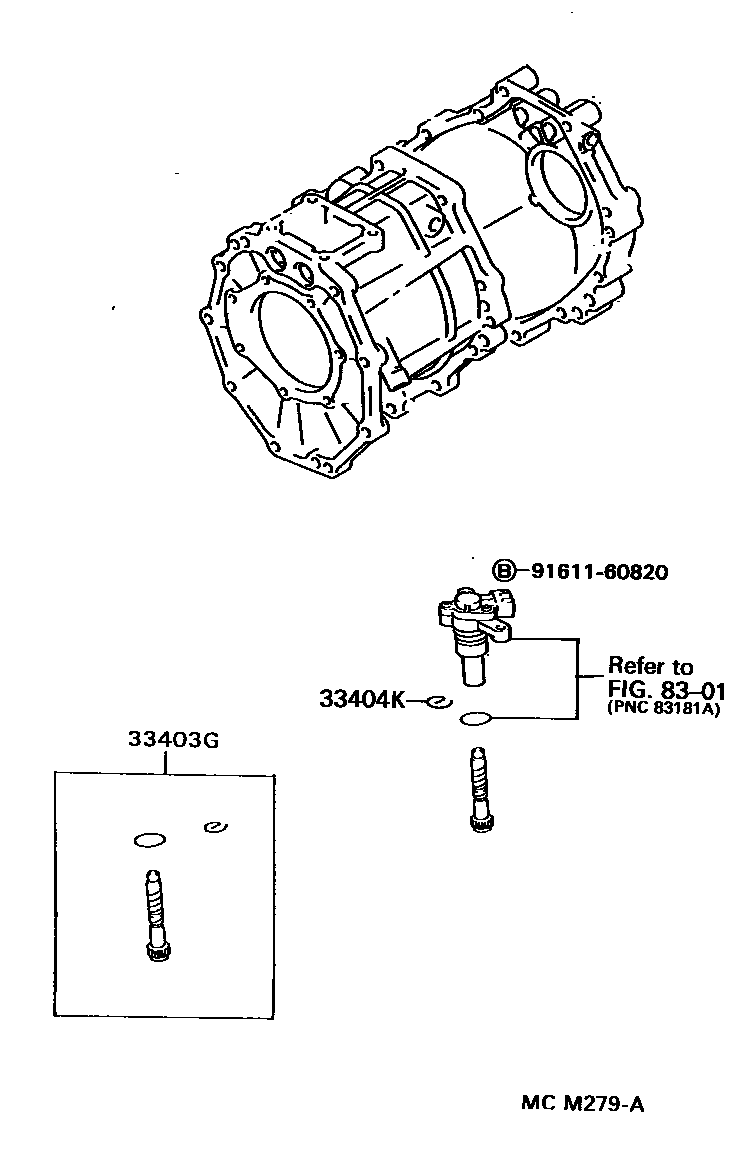

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29315iRN101..4FC199202-199501

N=32,MARK 32:10

main33403-39315iVZN110..4FC199303-199501

N=20,MARK 20:6

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iRN101,VZN110..4FC199202-199501

8301METER

→ Go to FIG 83-01

9161160820

main91611-60820

4 parts on this diagram · 1 diagram in section
