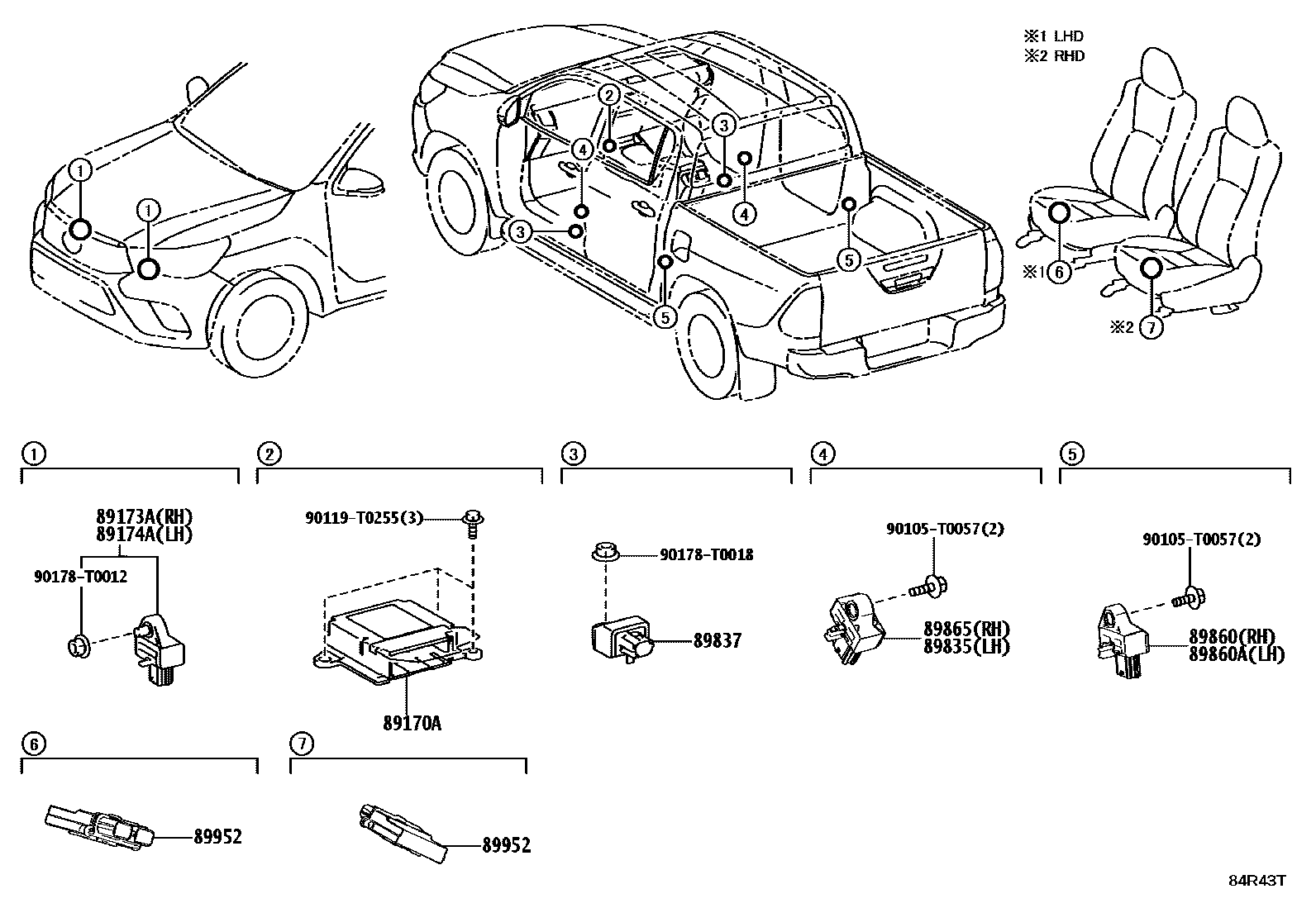

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-0K400iGUN125..6F..L..(GEN,GHA,KEN,SA); GUN125..6FC..L..GEN; TGN126..H..GEN; TGN126..L..GEN;LAN125,TGN126,136..LHD..SA202408
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT; VSC-WITHOUT; VSC-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
ASEAN GENERAL SPEC&VSC-WITHOUT; VSC-WITHOUT
main89170-0KB50supersedes 89170-0KB30iGUN125..6FC..S..GEN; GUN125..LHD..S..GEN; GUN125..LHD..S..GEN;GUN125..RHD..6F..L..GEN; GUN135..H..PH;GUN126..6F..PH; GUN135..L..TH; GUN135..L..VN;GUN126..RHD..6F..S..GEN;GUN125,135..S..(IDN,MA,PH,TH);GUN125,126..RHD..6FC..(H,L)..GEN202408
ASEAN GENERAL SPEC; BRUNEI SPEC&REAR HEADREST-WITH(RH/LH/CENTER); CAMBODIA SPEC; SRS AIR BAG-WITH(*DRP); VSC-WITH(*HSAC & *TSC)
main89170-0KB80supersedes 89170-0KB60iGUN125..6FC..S..GEN; GUN125..LHD..S..GEN; GUN125..LHD..S..GEN;GUN125..RHD..6F..L..GEN; GUN125..RHD..S..GEN;GUN125..RHD..6F..L..GEN;GUN126..RHD..6FC..S..GEN; GUN135..H..(PH,TH);GUN126..LHD..H..GEN;GUN125..THP..6F..S..(LA,VN);GUN135..THP..(H,S)..(GEN,LA,VN);GUN125,13#..(MAP,THP)..(H,L)..(LA,MA);GUN125,TGN126..THP..(5F,6FC)..(IDN,LA);GUN126..(MAP,MMRP,THP)..DCRL..(LA,MA,MMR,PH,TH,VN); GUN135..L..VN;GUN125..S..IDN;GUN126..RHD..6F..S..GEN;GUN125,126..RHD..6FC..(H,L)..GEN; TGN136..GEN202408
ASEAN GENERAL SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); BRUNEI SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CAMBODIA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KF60iGUN125,126..RHD..6FC..(H,L)..GEN; GUN125..6F..L..GCC;GUN126..LHD..S..GEN; GUN125..6FC..L..GEN; GUN126..RHD..6FC..H..GEN; GUN135..S..SA;GUN125..6F..(H,S)..GCC;GUN126..RHD..6F..H..GEN;GUN126..RHD..6FC..S..GEN;GUN125..RHD..6F..(GEN,KEN,SA);GUN125..LHD..(L,S)..(GEN,GHA,SA);GGN125,GUN125..6FC..(H,S)..(GCC,GEN);GUN126,TGN126..(H,S)..(DCRL,HTWC)..GCC; TGN126..H..GEN202408
DATA COMMUNICATION MODULE-WITHOUT; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION); OCEANIA GENERAL SPEC; OCEANIA(EURO 5 REGULATION); SRS AIR BAG-WITH(*DRP)
main89170-0KF70supersedes 89170-0K420iGUN125,126..RHD..6FC..(H,L)..GEN; GUN125..6FC..L..GEN; GUN126..LHD..S..GEN;GUN125..LHD..H..(GEN,SA);GUN126,136..DCRL..(GHA,KEN,SA);GGN125,GUN125..RHD..6FC..(KEN,SA); GUN126..LHD..THP..H..GEN; GUN126..RHD..6FC..H..GEN; GUN135..S..SA;GUN125..6F..L..GEN;GUN125..LHD..S..GEN;GUN126..RHD..6F..H..GEN;GUN125,126..RHD..6FC..S..GEN;GUN125..RHD..6F..(H,S)..(GEN,SA); TGN126..H..GEN202408
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); OCEANIA GENERAL SPEC; OCEANIA GENERAL SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); OCEANIA(EURO 5 REGULATION)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)&DATA COMMUNICATION MODULE-WITHOUT
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
EXPORT FROM SA&VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG); NIGERIA SPEC&VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG); SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG); SUB-SAHARAN AFRICA SPEC(EURO 2)&VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIRBAG)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
VSC-WITH(*HSAC & *TSC)
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB); VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
main89170-0K510iGUN125..6F..L..GEN; GUN125..6FC..L..GEN; GUN125..RHD..6F..L..GEN; TGN126..H..GEN202408
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE &CURTAIN); VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)&DATA COMMUNICATION MODULE-WITHOUT
VSC-WITHOUT
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASEAN GENERAL SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB); VSC-WITHOUT; VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
main89170-0KB60iGUN125..6FC..L..GEN; GUN125..RHD..6F..L..GEN; GUN125..S..IDN;GUN125..6FC..L..GEN; TGN136..GEN202408
ASEAN GENERAL SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); ASEAN GENERAL SPEC&VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED))& WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED))& WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89835SENSOR, DOOR SIDE AIRBAG, LH
89837SENSOR, FRONT FLOOR SIDE AIRBAG
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89865SENSOR, DOOR SIDE AIRBAG, RH
89952COMPUTER, OCCUPANT DETECTION
90105T0057
main90105-T0057
90119T0255
main90119-T0255
90178T0012
main90178-T0012
90178T0018
main90178-T0018
13 parts on this diagram · 1 diagram in section
