SWITCH & RELAY & COMPUTER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
main83530-28010iGUN122..IV3; GUN122..L..GCC; GUN122..S..GEN; GUN125..6FC..S..GEN;GUN125..LHD..(H,L)..GEN;GUN126..RHD..6FC..H..DCRL..GEN; GUN125..H..GCC;GUN122..S..GCC..CBU; GUN125..H..GCC;GUN125..6F..L..GCC;GUN125..RHD..L..GEN;GUN122..S..GCC..CBU;GUN126..THP..6FC..H..DCRL..LA; GUN125..RHD..H..GEN; GUN125..RHD..S..GEN;GUN125..LHD..L..GEN;GUN126..RHD..6FC..DCRL..GEN;GUN126..LHD..(MMRP,THP)..6FC..H..(GEN,MMR); GUN125..THP..L..LA; GUN126..S..GEN;GUN122,135..GEN;GUN125..THP..S..SA;GUN125..RHD..(H,S)..GEN;GUN126..LHD..6F..H..GEN;GUN126..THP..6FC..S..LA;GUN126..THP..6FC..H..DCRL..GEN;GUN125,136..LHD..THP..(H,L)..(GEN,LA,SA); GUN135..THP..LA;GUN125..THP..S..LA;GUN126..THP..6F..H..LA202308-202407
CAMBODIA SPEC,DENSO,*369; CENTRAL AND SOUTH AMERICA SPEC,DENSO,*369; COSTA RICA SPEC,DENSO,*369; DENSO,*369; EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),DENSO,*369; EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),DENSO,*369; EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),DENSO,*369; EXHAUST EMISSION CONTROL-WITHOUT,DENSO,*369; IRAQ SPEC,DENSO,*369; OCEANIA(EURO 5 REGULATION),DENSO,*369; SYRIA SPEC,DENSO,*369
DENSO,*369
main83530-60010iGUN122..IV3; GUN122..L..GCC; GUN125..H..GCC;GUN122..S..GCC..CBU; GUN125..H..GCC;GUN125..6F..L..GCC;GUN125..RHD..L..GEN;GUN122..S..GCC..CBU;GUN126..THP..6FC..H..DCRL..LA; GUN126..S..GEN;GUN122,135..GEN;GUN125..THP..S..SA;GUN125..RHD..(H,S)..GEN;GUN126..LHD..6F..H..GEN;GUN126..THP..6FC..S..LA;GUN126..THP..6FC..H..DCRL..GEN;GUN125,136..LHD..THP..(H,L)..(GEN,LA,SA); GUN135..THP..LA;GUN125..THP..S..LA;GUN126..THP..6F..H..LA202308-202407
CENTRAL AND SOUTH AMERICA SPEC,YAZAKI,*369; EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),YAZAKI,*369; EXHAUST EMISSION CONTROL-WITHOUT,YAZAKI,*369; IRAQ SPEC,YAZAKI,*369; SYRIA SPEC,YAZAKI,*369; YAZAKI,*369
YAZAKI,*369
DENSO,*369
89465SENSOR, OXYGEN
89465ASENSOR, OXYGEN NO.2
89467BSENSOR, AIR FUEL RATIO
main89467-71120iGUN125..6FC..L..GEN; GUN126..MHV..LA;GUN125..RHD..6FC..L;GUN125..6F..(ARL,VN);GUN126,13#..ARL,GCC,VN202308-202407
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
89615SENSOR, KNOCK CONTROL
8271571180BRACKET,WIRING HARNESS CLAMP
main82715-71180
8271571210BRACKET,WIRING HARNESS CLAMP
main82715-71210
90119T0134
main90119-T0134
9155180830
main91551-80830

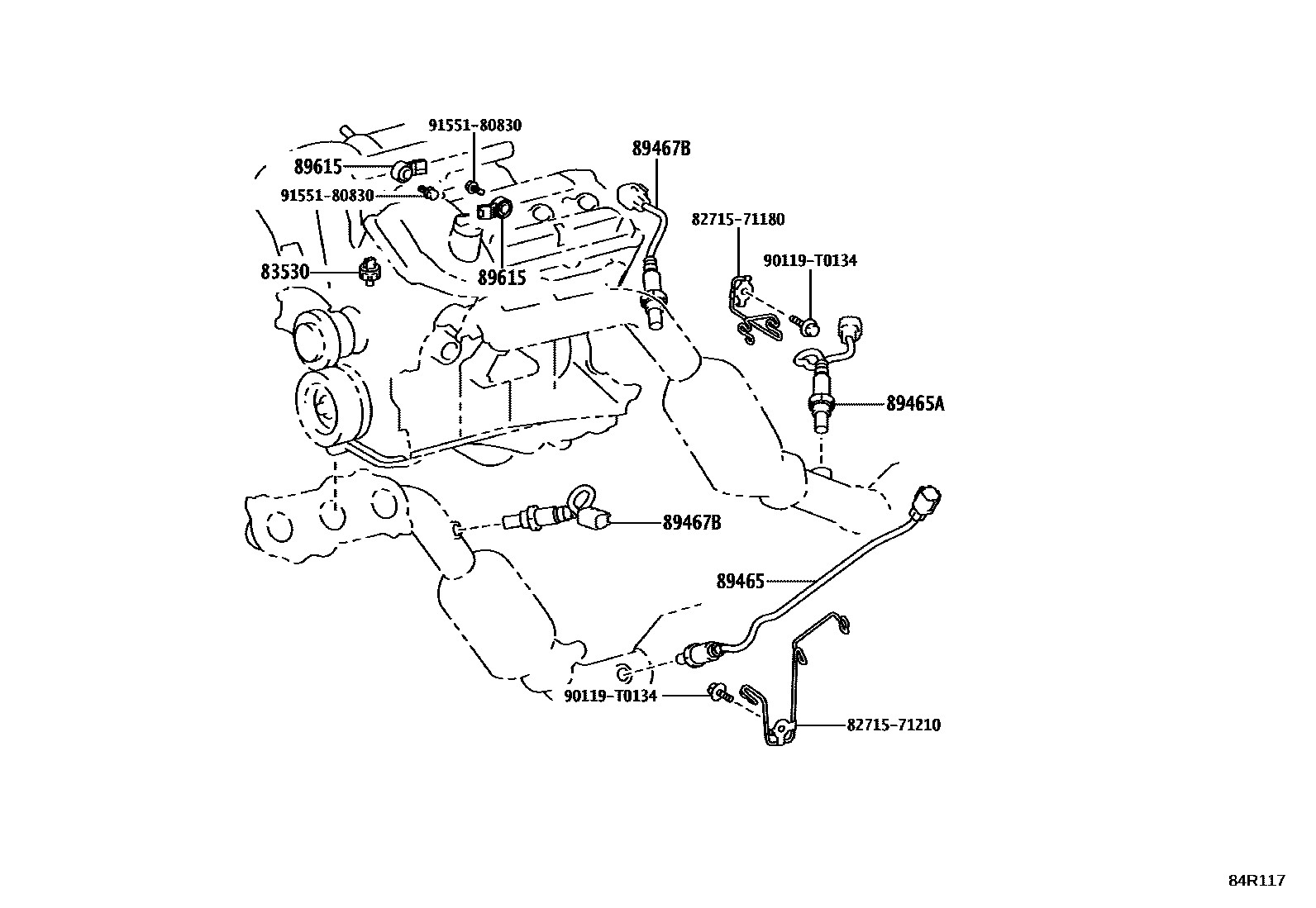

9 parts on this diagram · 23 diagrams in section
