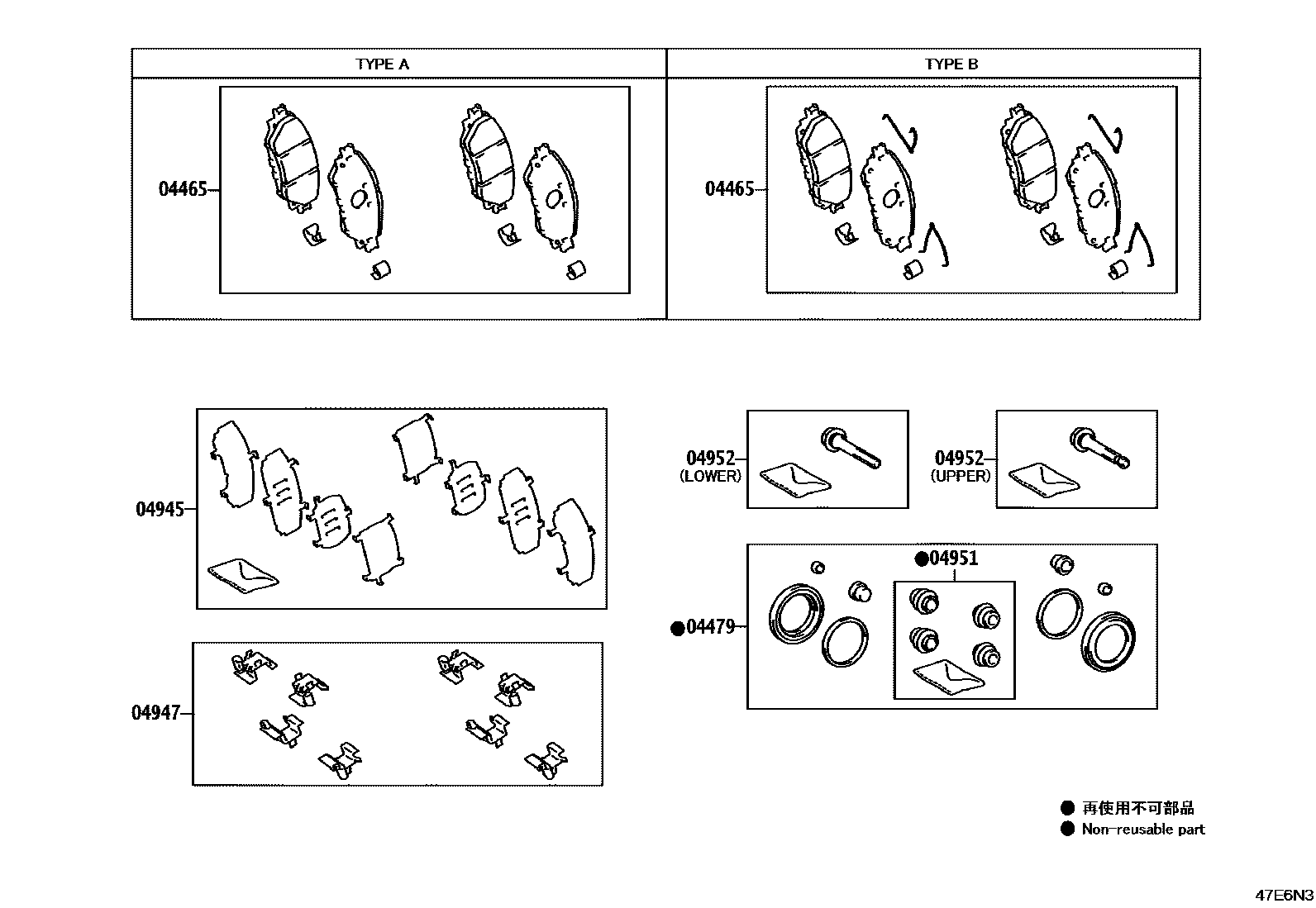

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK ADVICS PS558H,PNC 04945=TYPE A
main04465-0K391iGUN125,126..RHD..S..GEN;GUN125..RHD..6F..L..GEN;GUN126..RHD..6FC..H..DCRL..GEN202308-202409
MARK AK NS265H,PNC 04945=TYPE B
MARK AK NS265H,CENTRAL AND SOUTH AMERICA SPEC,PNC 04945=TYPE B
MARK AK NS265H,PNC 04945=TYPE B
MARK ADVICS VC060H,VSC-WITHOUT,TYPE A:REFER ILLUST.
MARK ADVICS VC060H,TYPE A:REFER ILLUST.
MARK ADVICS PS558H,PNC 04945=TYPE C
MARK ADVICS VC084H,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT),TYPE B:REFERILLUST.
MARK ADVICS VC084H,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK ADVICS VC084H,TYPE B:REFER ILLUST.
MARK ADVICS VC084H,VSC-WITH(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE B:REFER ILLUST.
MARK ADVICS VC084H,VSC-WITH(*HSAC & *TSC),TYPE B:REFER ILLUST.
04479CYLINDER KIT, DISC BRAKE, FRONT
04945SHIM KIT, ANTI SQUEAL, FRONT
VSC-WITHOUT
TYPE A:REFER ILLUST.
CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT
VSC-WITH(*HSAC & *TSC)
VSC-WITH(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C ALUMINUM
TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
CENTRAL AND SOUTH AMERICA SPEC,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
04947FITTING KIT, DISC BRAKE, FRONT
TYPE A:REFER ILLUST.
CENTRAL AND SOUTH AMERICA SPEC,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
MLM ADVENTURE WIDE TREAD,TYPE A:REFER ILLUST.
MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM,TYPE A:REFER ILLUST.
MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM,TYPEA:REFER ILLUST.
GR SPORT WIDE TREAD,TYPE A:REFER ILLUST.
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT),TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
04951BUSH KIT, DISC BRAKE, FRONT
04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
LOWER SIDE
UPPER SIDE
6 parts on this diagram · 4 diagrams in section
