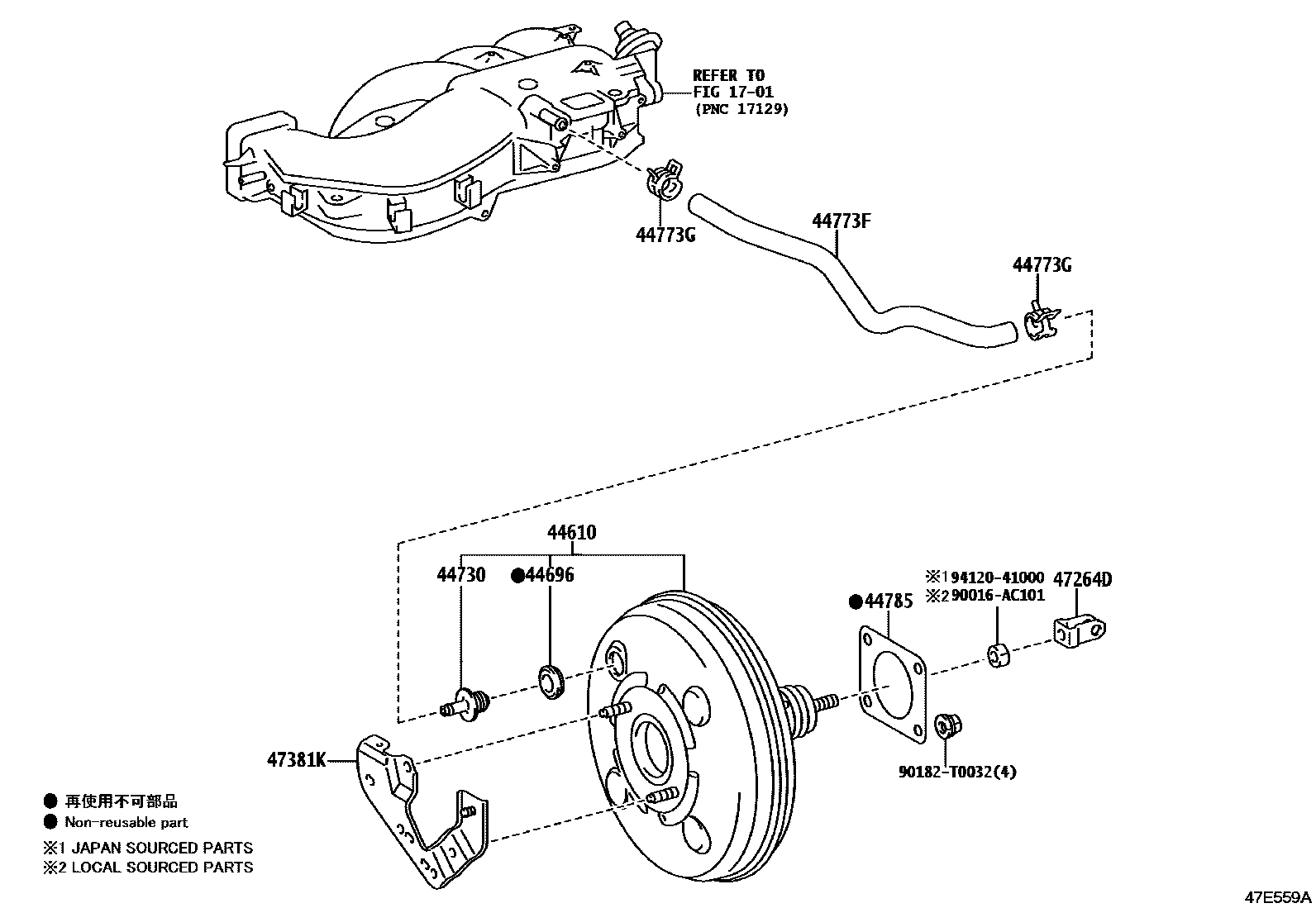

BRAKE BOOSTER & VACUUM TUBE
1701MANIFOLD
44610BOOSTER ASSY, BRAKE
main44610-0K580iGUN126..6FC..TH; GUN126..RHD..THP..6F;GUN120,121,122,125,13#..RHD..THP;GUN126..RHD..6FC..DCRL..(ARL,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT
VSC-WITHOUT
main44610-0K880iGUN126..6FC..TH;GUN126..MHV..ARL; GUN135..(H,S)..TH;GUN125,126..6F..TH; GUN135..L..TH202308-202407
TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD&TOYOTA STOP & START SYSTEM-WITH
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
main44730-60070×2iGUN126..MHV..(ARL,GCC,LA);GGN125,GUN12#,13#..THP..(DCRL,HTWC); TGN12#,136..THP..(ARL,GCC,GEN,LA)202308-202407
44773FHOSE, UNION TO CHECK VALVE
44773GCLIP(FOR UNION TO CHECK VALVE HOSE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
main47264-04010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
47381KBRACKET, BRAKE BOOSTER TUBE CLAMP
90016AC101
main90016-AC101
90182T0032
main90182-T0032
9412041000
main94120-41000
12 parts on this diagram · 7 diagrams in section
