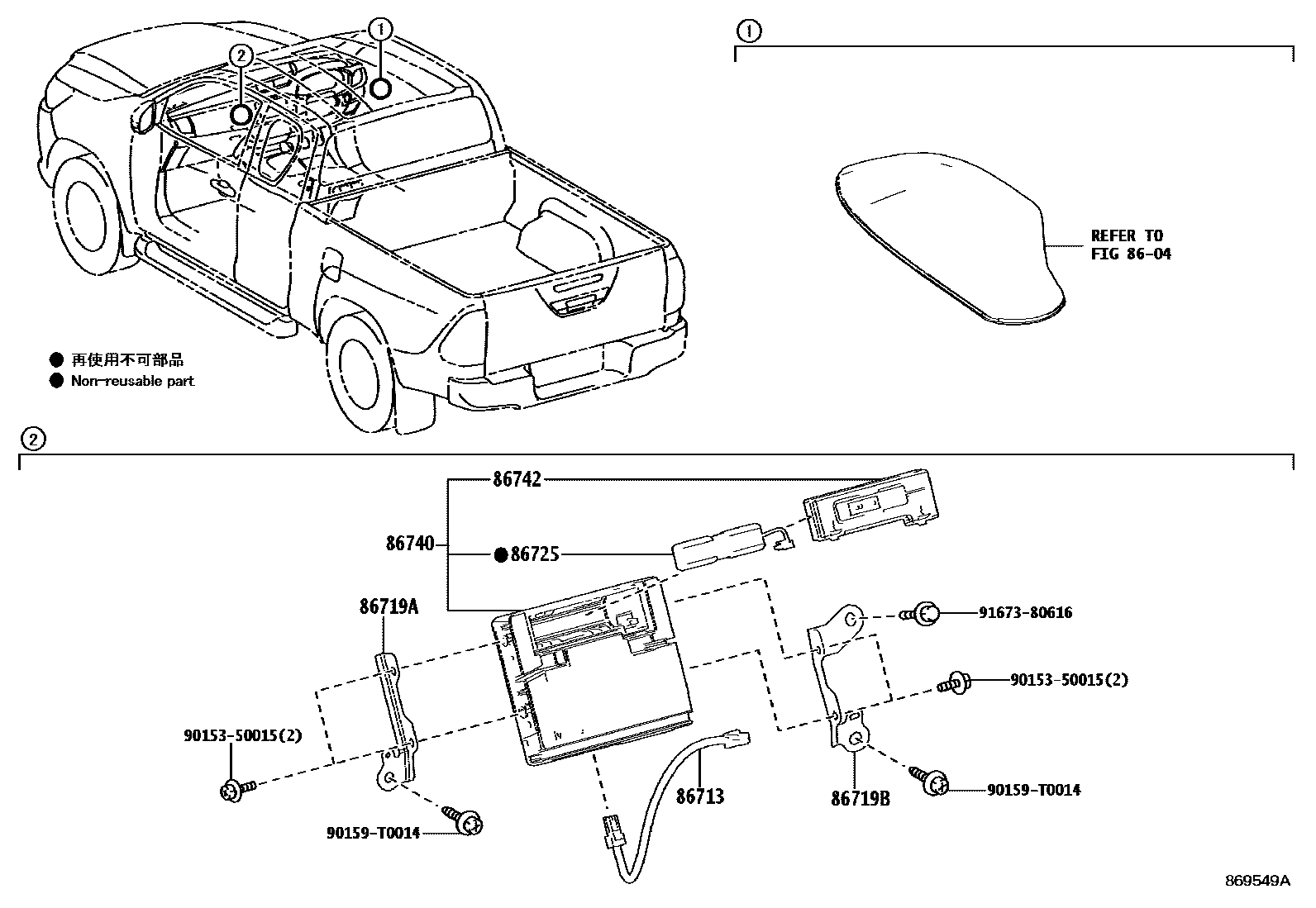

TELEPHONE & MAYDAY

8604ANTENNA

86713WIRE, TELEPHONE COMPUTER

main86713-71010i202208-202307

DATA COMMUNICATION MODULE-WITH(G-DCM)

86719BRACKET, TELEPHONE

main86719-0K090i202208-202307

86719ABRACKET, TELEPHONE NO.1

main86719-0K100i202208-202307

DATA COMMUNICATION MODULE-WITH(G-DCM)

86719BBRACKET, TELEPHONE NO.2

main86719-0K120i202208-202307

DATA COMMUNICATION MODULE-WITH(G-DCM)

86725BATTERY, MOBILEPHONE

main86725-48010i202208-202307

main86725-78010i202208-202307

DATA COMMUNICATION MODULE-WITH(G-DCM)

main86725-26010i202210-202309

DATA COMMUNICATION MODULE-WITH(G-DCM)

86740TRANSCEIVER ASSY, TELEPHONE

main86740-71030i202208-202307

main86741-0K080i202208-202307

DATA COMMUNICATION MODULE-WITH(G-DCM)

main86741-0K070i202208-202302

DATA COMMUNICATION MODULE-WITH(TRANSLOG(DOP)); DATA COMMUNICATION MODULE-WITH(TRANSLOG)

main86741-0K120i202303-202307

DATA COMMUNICATION MODULE-WITH(TRANSLOG(DOP)); DATA COMMUNICATION MODULE-WITH(TRANSLOG)

main86741-71020i202210-202309

DATA COMMUNICATION MODULE-WITH(G-DCM)

86742COVER, TRANSCEIVER

main86742-0D020i202208-202307

DATA COMMUNICATION MODULE-WITH(G-DCM)

main86742-26010i202210-202309

DATA COMMUNICATION MODULE-WITH(G-DCM)

9015350015

90159T0014

9167380616

11 parts on this diagram · 3 diagrams in section
