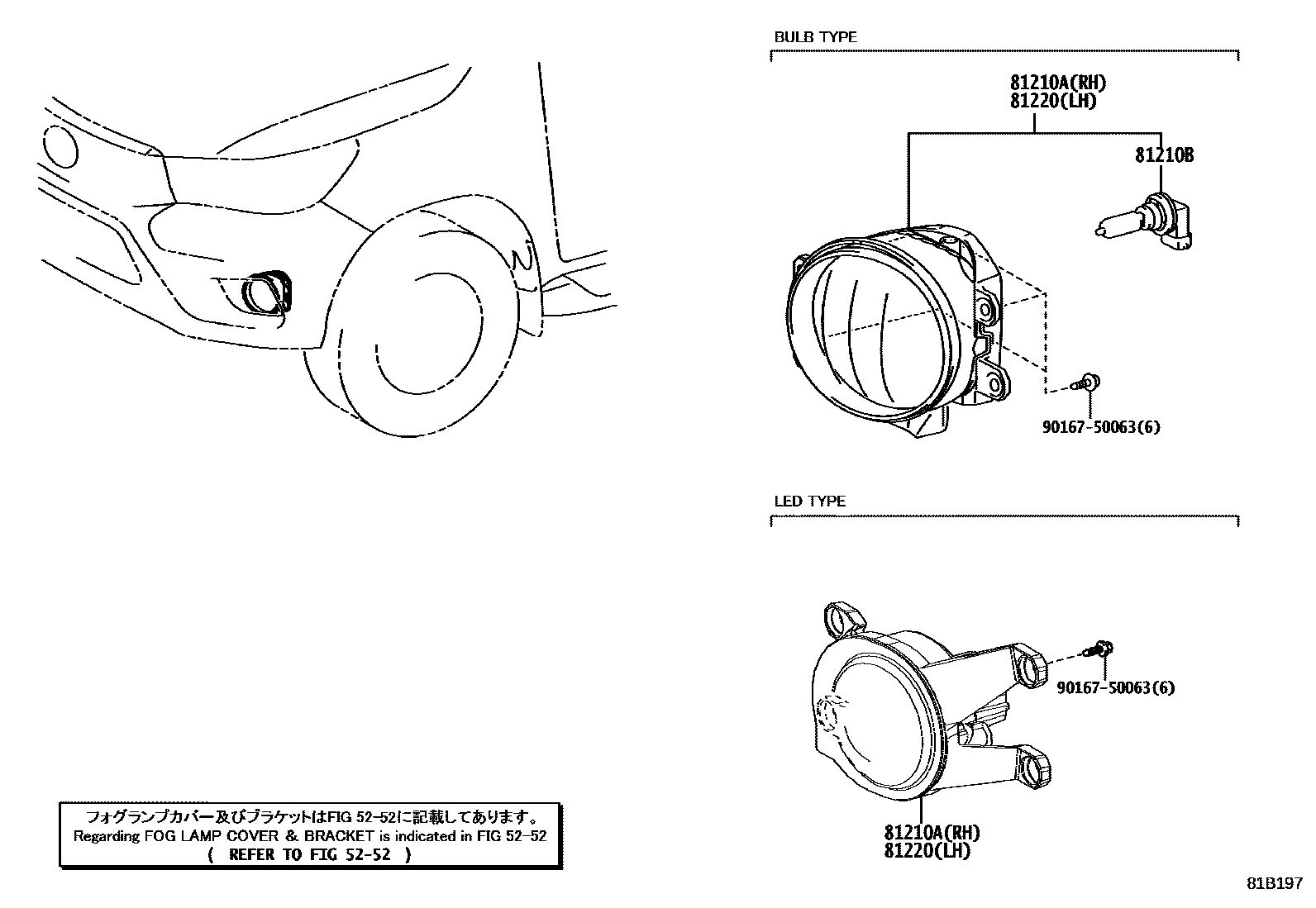

FOG LAMP

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-02220iGUN125,126..H..MA202208-202302

main81210-0D110iGUN126..L..PKN202303

main81210-0K180iGUN125,126..H..MA202302-202308

KOITO MALAYSIA

main81210-0K200iGUN126..IND202210-202309

main81210-0K220iGUN126..AGTP..6F..S..LA;GUN125,135,TGN126,136..AGTP..S..LA; GUN135..S..BZAG;GUN126..AGTP..6FC;GUN126..6F..S..BZAG;GUN126..AGTP..6F..H;GGN125,GUN136,TGN126..AGTP..H202211-202310

FRONT FOG LAMP-WITH(LED)

81210BBULB, FOG LAMP

main90981-13090×2iGUN126..L..PKN202303

12V 19W

81220LAMP ASSY, FOG, LH

main81220-02150iGUN125,126..H..MA202208-202302

main81220-0D110iGUN126..L..PKN202303

main81220-0K160iGUN126..AGTP..6F..S..LA;GUN125,135,TGN126,136..AGTP..S..LA; GUN135..S..BZAG;GUN126..AGTP..6FC;GUN126..6F..S..BZAG;GUN126..AGTP..6F..H;GGN125,GUN136,TGN126..AGTP..H202211-202310

FRONT FOG LAMP-WITH(LED)

main81220-0K180iGUN125,126..H..MA202302-202308

KOITO MALAYSIA

main81220-0K200iGUN126..IND202210-202309

9016750063

main90167-50063

5 parts on this diagram · 1 diagram in section
