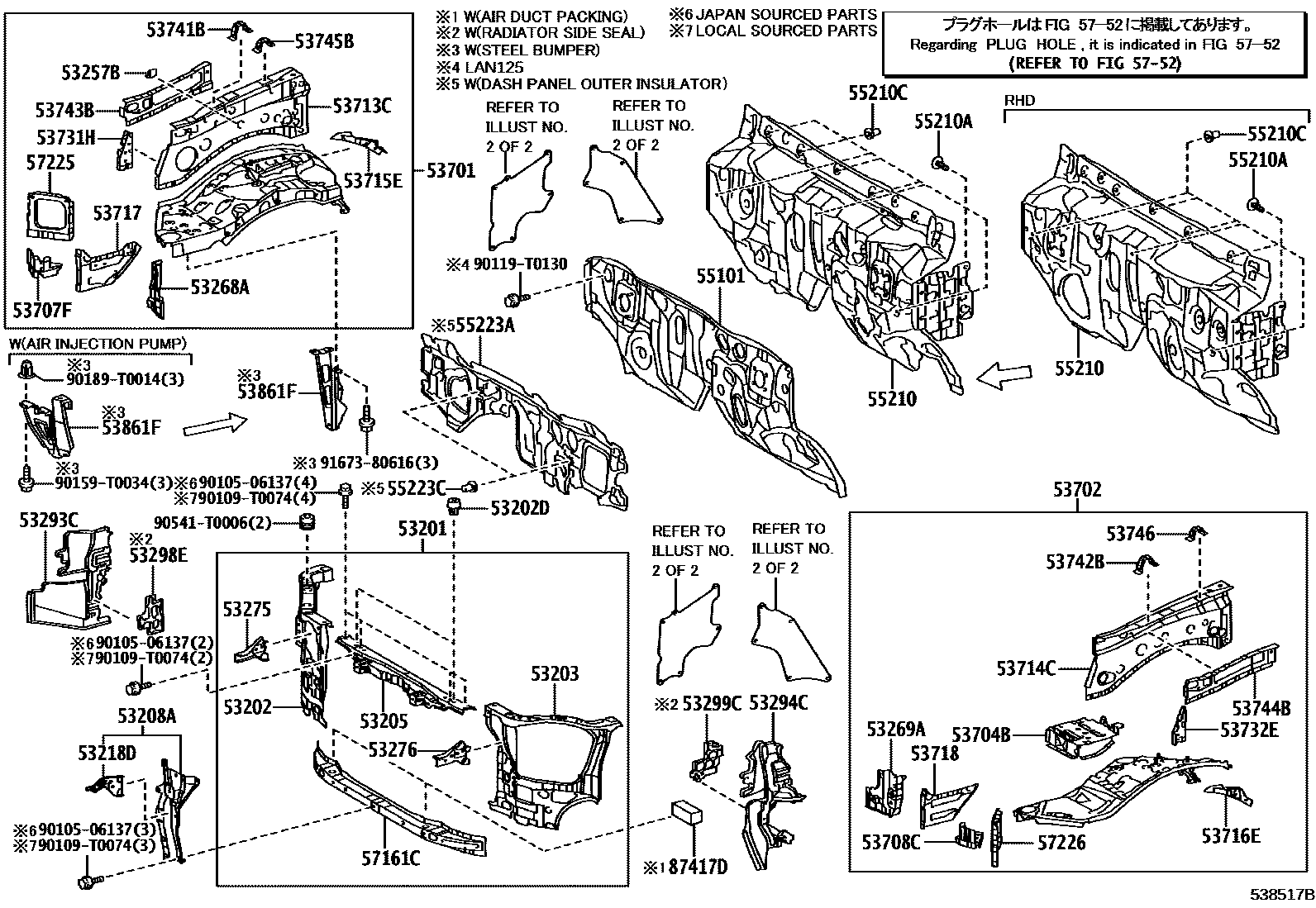

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
main53201-KK050iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..AGTP,GHAP,KENP,PKNP,SAP202211-202411
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53218DEXTENSION, HOOD LOCK BRACE
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH
53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-KK040supersedes 53293-KK120iTGN126,136..L..SA;GUN122,125,135,LAN125,TGN121..MTM..(L,S)..SA202208-202401
main53293-KK110iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..GEN,PH,TH,VN;GUN135,TGN126..THP..(H,S)..(GCC,LA);GGN125,GUN125,126,136..THP..(H,S)..(GCC,GEN,IDN,LA,PH,TH,TWN,VN)202208-202307
TIRE & DISC WHEEL-265/65R17 STEEL
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
FRONT BUMPER-WITH(STEEL LOWER COVER) & W(WIDE FENDER)
MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM
main53293-YP091supersedes 53293-KK110iGGN125,GUN135..LHD..THP..H;GUN125,126..THP..H..(GEN,LA,PH,TWN,VN)202208-202307
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-KK040supersedes 53294-KK120iTGN126,136..L..SA;GUN122,125,135,LAN125,TGN121..MTM..(L,S)..SA202208-202401
TIRE & DISC WHEEL-265/65R17 STEEL
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
FRONT BUMPER-WITH(STEEL LOWER COVER) & W(WIDE FENDER)
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM
main53294-YP091supersedes 53294-KK110iGGN125,GUN135..LHD..THP..H;GUN125,126..THP..H..(GEN,LA,PH,TWN,VN)202208-202307
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
53298ESEAL, RADIATOR SIDE, RH
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)&TIRE& DISC WHEEL-265/65R17 STEEL
53299CSEAL, RADIATOR SIDE, LH
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)&TIRE& DISC WHEEL-265/65R17 STEEL
53701APRON SUB-ASSY, FRONT FENDER, RH
sub53701-KK360
FRONT BUMPER-WITH(STEEL LOWER COVER)
FRONT BUMPER-PAINTED
FRONT BUMPER-WITH(STEEL LOWER COVER)
53702APRON SUB-ASSY, FRONT FENDER, LH
53704BSUPPORT SUB-ASSY, BATTERY, LH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
main53714-KK020iTGN136..S;TGN136..BZAG;GUN136..AGTP..LA;GUN136..ARL,BZAG,SA;GGN125,GUN120,121..LA,SA,TH;GUN125,126,135,TGN126..AGTP;GUN122,125,126,135,TGN121..RHD202208
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731HPATCH, FRONT FENDER APRON, RH
53732EREINFORCEMENT, FRONT FENDER APRON, LH
53741BPLATE, FENDER APRON REINFORCE, RH
53742BPLATE, FENDER APRON REINFORCE, LH
53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53861FBRACKET, FRONT WHEEL OPENING, NO.1
55101PANEL SUB-ASSY, DASH
FRONT AIR CONDITIONER-AUTO
FRONT AIR CONDITIONER-MANUAL
main55101-KK120iGUN135..ARL;GUN135..6FC..H..TH;GUN125,126,136,TGN121..RHD..(INDP,MAP,PKNP,THP)..6FC202208-202305
FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-AUTO
FRONT AIR CONDITIONER-MANUAL
sub55101-KK271
FRONT AIR CONDITIONER-MANUAL
sub55101-KK291
55210INSULATOR ASSY, DASH PANEL
main55210-0K320iGUN126..THP..(L,S)..LA;GUN122,TGN120,121,136..LHD..THP;GUN125,135,TGN126..LHD..THP..(L,S)202208-202307
55210ACLIP
IVORY
55210CCLIP
(J)
55223AINSULATOR, DASH PANEL, OUTER
EGYPT SPEC
55223CCLIP
EGYPT SPEC
57161CMEMBER, FRONT CROSS
PLANT TSAM
57225BRACE, FRONT MOUNTING BRACKET, RH
57226BRACE, FRONT MOUNTING BRACKET, LH
5752
87417DPACKING, AIR DUCT
9010506137
main90105-06137
90109T0074
main90109-T0074
90119T0130
main90119-T0130
90159T0034
main90159-T0034
90189T0014
main90189-T0014
90541T0006
main90541-T0006
9167380616
main91673-80616
54 parts on this diagram · 2 diagrams in section
