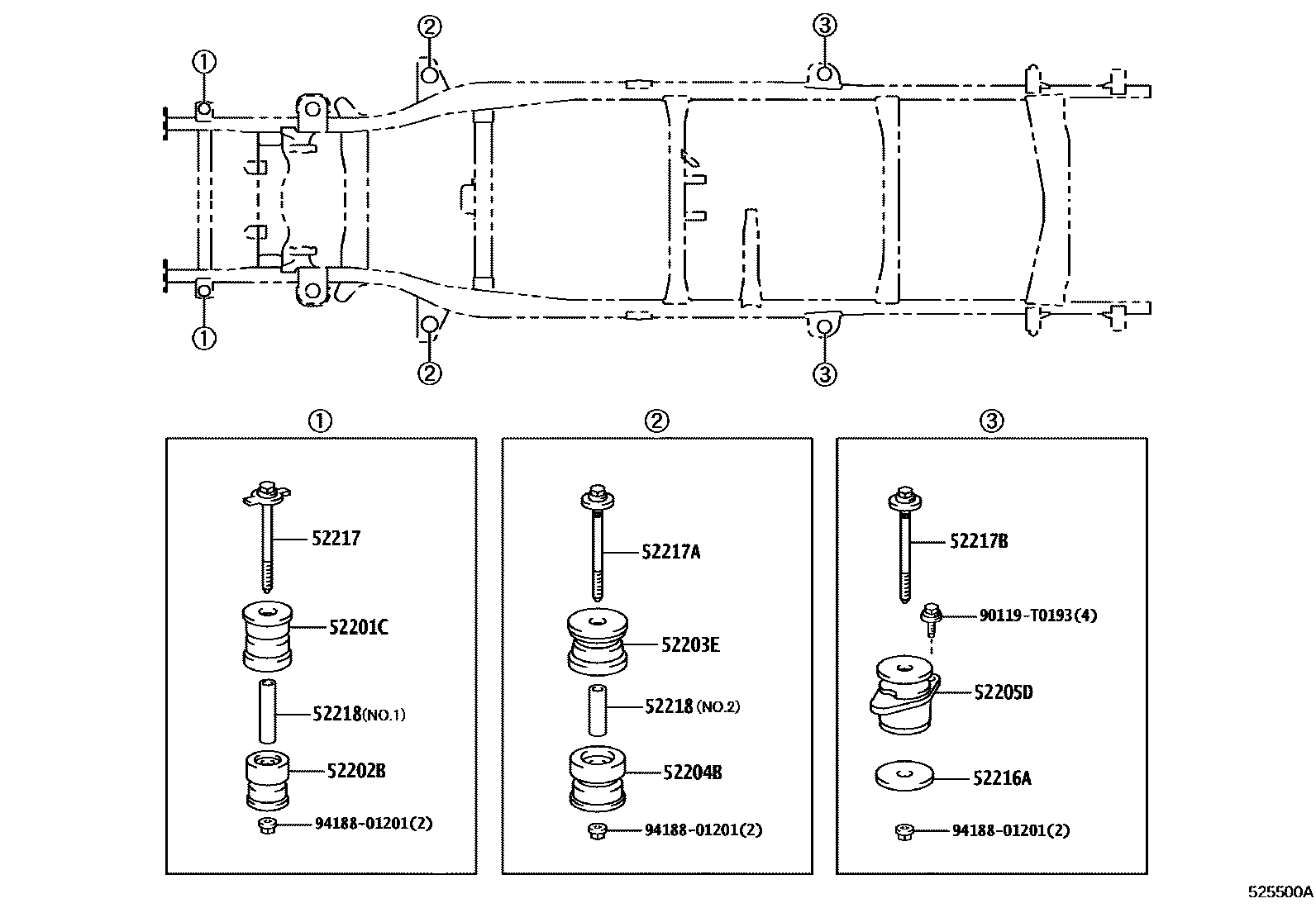

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K070×2iGUN126..IND202210-202309

main52201-0K100×2iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202310

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K070×2iGUN126..IND202210-202309

main52202-0K100×2iGUN125,126..MA202208-202308

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K120×2iGUN120,121,122,TGN120,121..THP202208-202307

main52203-0K150×2iGUN126..IND,MMR202208-202309

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K120×2iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K161iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

RH

main52206-0K101iGUN126..PKN202208

LH

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010×2iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

main52216-KK030×2iGUN126..AGTP..6FC..H202302-202308

GR SPORT WIDE TREAD

52217BOLT, BODY MOUNTING

main52217-0K010×2iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

52217ABOLT, BODY MOUNTING

main52217-0K020×2iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

52217BBOLT, BODY MOUNTING

main52217-0K020×2iGUN126..PKN202208

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010×2iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202310

NO.1

main52219-0K010×2iGUN126..PKN202208

NO.2

90119T0193

main90119-T0193

9418801201

main94188-01201

12 parts on this diagram · 1 diagram in section
