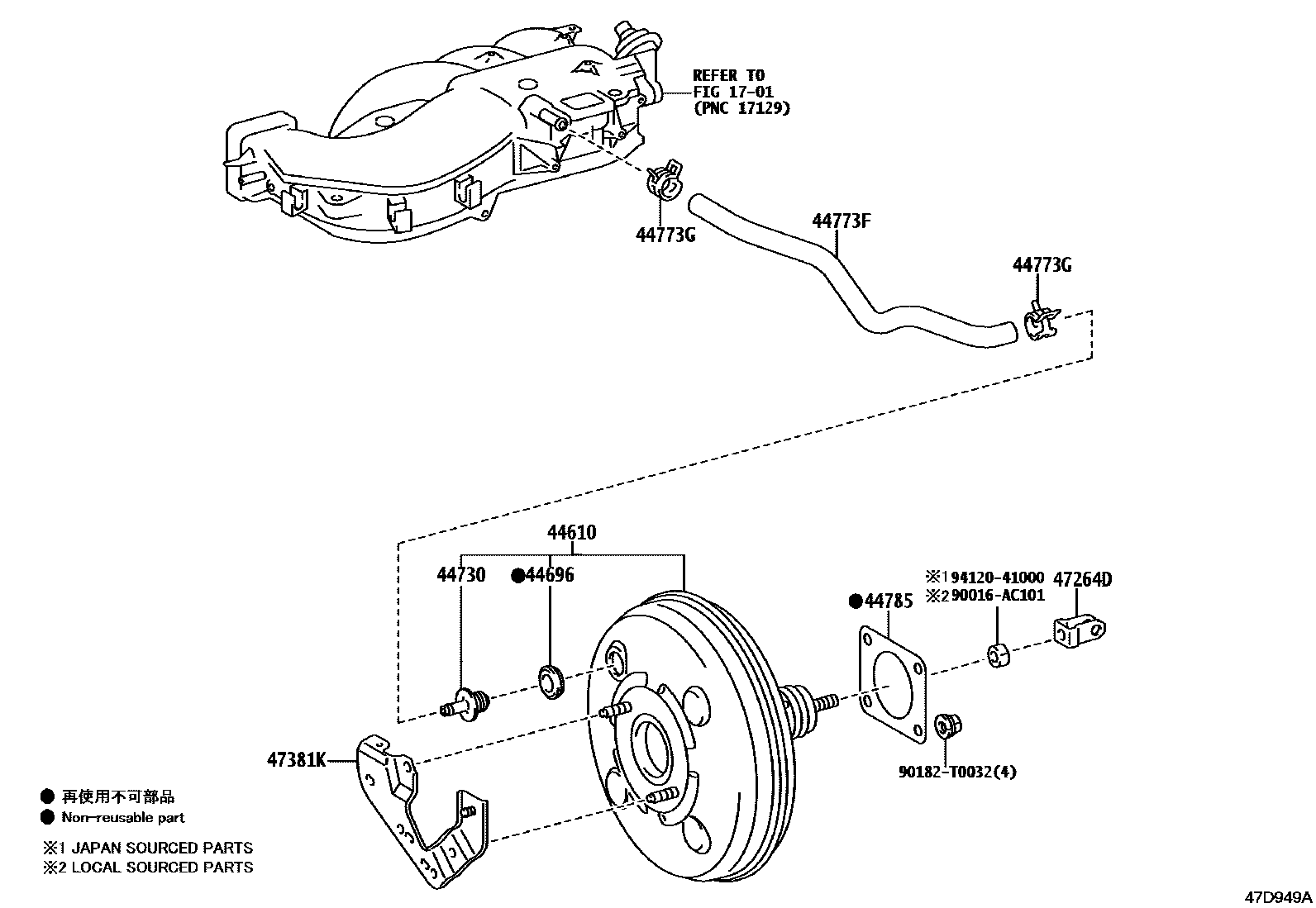

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-0K550i202210-202309

main44610-0K560i202208-202401

main44610-0K570i202301-202401

main44610-0K580supersedes 44610-0K880i202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main44610-0K600i202208-202309

main44610-0K650i202301-202401

VSC-WITHOUT

main44610-0K810i202208-202307

main44610-71010i202211-202310

main44610-71020i202211-202310

main44610-71030i202211-202310

main44610-0K880i202208-202307

TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)

main44610-0K890i202208-202307

TOYOTA STOP & START SYSTEM-WITH

main44610-0KA40i202301-202307

GR SPORT WIDE TREAD

main44610-71050i202302-202310

GR SPORT WIDE TREAD

44696GROMMET, CHECK VALVE

main90016-AT003i202208

main90480-24439i202210-202309

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070×2i202208-202307

44773FHOSE, UNION TO CHECK VALVE

main44773-0K020i202301-202401

main44773-KK020i202208-202307

main44773-KK030i202208-202401

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019i202208-202307

NO.1:REFER ILLUST.

main90467-16014i202208-202308

NO.2:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

main44785-17010i202208-202309

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010i202208-202401

main47264-0K080i202210-202309

main47264-26030i202211-202310

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K060i202210-202309

main47381-0K071i202208-202308

90016AC101

main90016-AC101

90182T0032

main90182-T0032

9412041000

main94120-41000

12 parts on this diagram · 7 diagrams in section
