INJECTION PUMP ASSEMBLY
2302FUEL FILTER
23271YHOSE, FUEL
main23271-0E031i1GDFTV..GUN126..TWN; 2GDFTV..GUN125..RHD..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202208-202307
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
23271ZCLIP, HOSE
23273HHOSE, FUEL, NO.2
main23273-0E040i1GDFTV..GUN126..6FC..H..BZAG; 1GDFTV..GUN126..L..BZAG;1GDFTV..GUN126..6FC..S..BZAG202211-202310
BRAZIL SPEC
23802FHOSE, FUEL
main23801-0E020i1GDFTV..GUN126..TWN; 2GDFTV..GUN125..RHD..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN; 2GDFTV..GUN125..THP..LA;1GDFTV..GUN126..THP..H..LA;1GDFTV..GUN126..THP..6F..S..LA202208-202307
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
23841HCLAMP, FUEL HOSE
THA SOURCED PARTS
IND SOURCED PARTS
23842ECLAMP, FUEL PIPE, NO.1
THA SOURCED PARTS
IND SOURCED PARTS
23842FCLAMP, FUEL PIPE, NO.2
main23842-0E010i1GDFTV..GUN126..TWN; 2GDFTV..GUN125..RHD..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202208-202307
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
THA SOURCED PARTS
IND SOURCED PARTS
23881CBRACKET, FUEL HOSE
TYPE B:REFER ILLUST.
7751FUEL TANK & TUBE
90119T0134
main90119-T0134
90119T0136
main90119-T0136
90466T0038
main90466-T0038
90466T0041
main90466-T0041
90466T0059
main90466-T0059
9613251300
main96132-51300

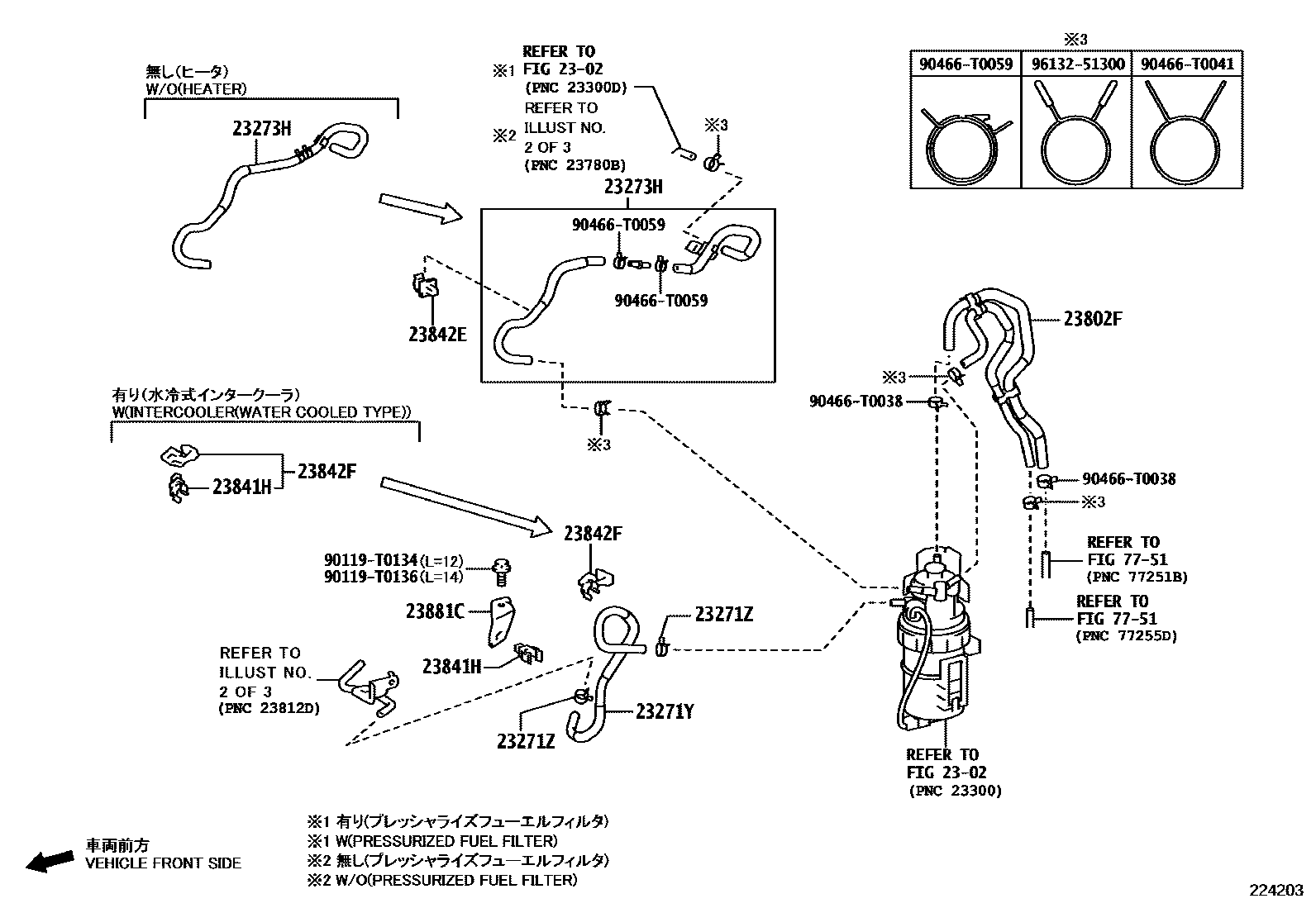

16 parts on this diagram · 5 diagrams in section
