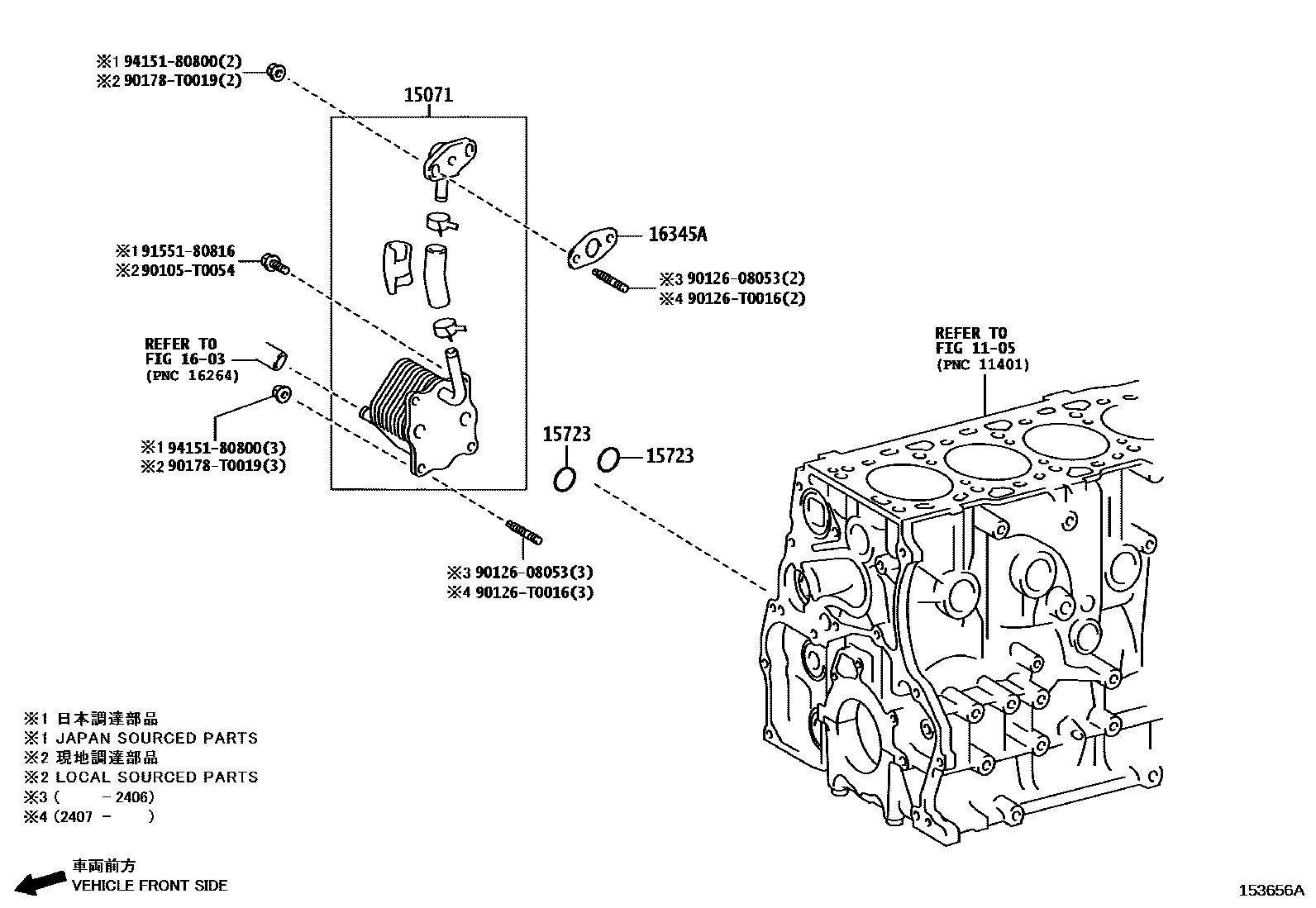

ENGINE OIL COOLER
1105CYLINDER BLOCK
15071COOLER SET, ENGINE OIL
main15071-08010i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL; 2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202209-202307
(J); (L); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(L); ASIA COLD COUNTRY SPEC,(L); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),(L); EXHAUST EMISSION CONTROL-WITHOUT,(L); NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
main15071-11010i2GDFTV..GUN125..6F..(H,L)..GCC; 2GDFTV..GUN125..6F..H..GCC; 2GDFTV..GUN125..6F..L..GCC;2GDFTV..GUN125..6FC..S..GCC; 2GDFTV..GUN125..6F..S..GCC;2GDFTV..GUN125..6FC..(L,S)..GCC; 2GDFTV..GUN125..H..GCC; 2GDFTV..GUN125..H..GCC;2GDFTV..GUN125..6F..L..GCC; 2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202209
(J); AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J); ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J); ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J); AZERBAIJAN SPEC,(J); CAMBODIA SPEC,(J); EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2022MY,(J); IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J); JORDAN SPEC,(J); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J); OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J); SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J); SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J); SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J); UAE SPEC,(J)
15723RING, O
main90301-22007×2i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
(J); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(L)
1603RADIATOR & WATER OUTLET
16345AGASKET, WATER OUTLET PIPE
THA SOURCED PARTS
main16345-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL; 2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN; 2GDFTV..GUN125..RHD..H..GEN202208-202307
IND SOURCED PARTS; OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; OCEANIA(EURO 5),IND SOURCED PARTS
main16345-11010i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
JAPAN SOURCED PARTS; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
90105T0054
main90105-T0054
9012608053
main90126-08053
90126T0016
main90126-T0016
90178T0019
main90178-T0019
9155180816
main91551-80816
9415180800
main94151-80800
11 parts on this diagram · 4 diagrams in section
