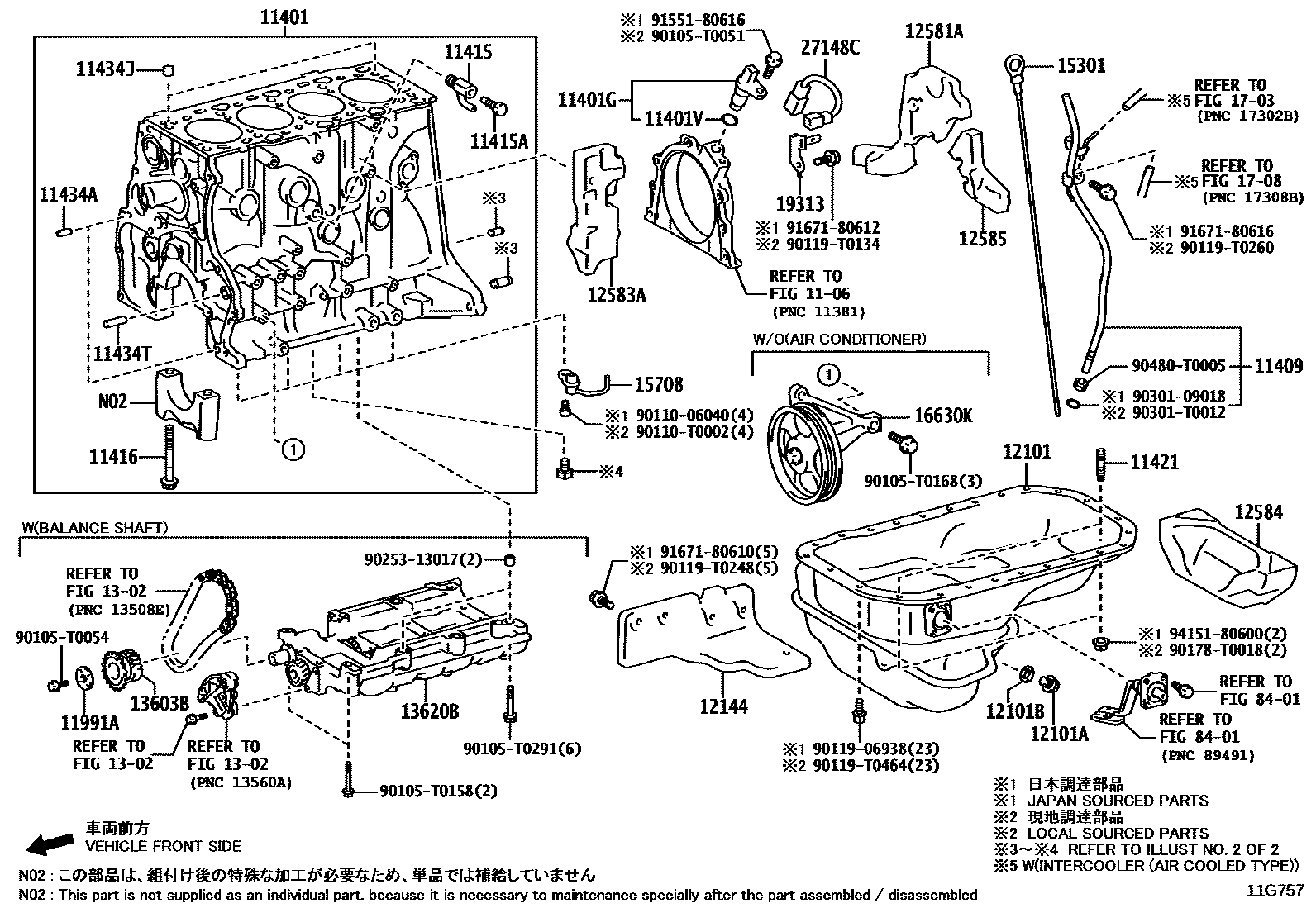

CYLINDER BLOCK
1106TIMING GEAR COVER & REAR END PLATE
11401BLOCK SUB-ASSY, CYLINDER
main11401-09412i2TRFE..TGN121,126,136; 2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC; 2TRFE..TGN126..L..GEN202208-202304
(L); ASIA COLD COUNTRY SPEC,(L); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
main11401-09851i1GDFTV..GUN126..AGTP..6FC..LA;1GDFTV..GUN121,126,136..GHAP,KENP,MAP,MMRP,PKNP,SAP,THP202208
(L)
MLM ADVENTURE PACKAGE
11401GSENSOR, CRANK POSITION
11401VO-RING, CRANK POSITION SENSOR
11409GUIDE SUB-ASSY, OIL LEVEL GAGE
THA SOURCED PARTS
IND SOURCED PARTS
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
(J)
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
main90910-02191×10i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
(J); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
main90910-T2002×10i2TRFE..TGN126..L..GEN; 2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN121,126..6FC..(ARL,GCC)202208-202304
(L); ASIA COLD COUNTRY SPEC,(L)
(L)
11421BOLT, STUD(FOR OIL PAN)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
main90250-08120×2i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
L=18,OD=8,(J); L=18,OD=8,MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
L=18,OD=8,(L)
L=8,OD=11
11434JPIN, RING (FOR CYLINDER HEAD SET)
main90253-15016×2i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
(J); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(L)
main90253-T0007×2i2TRFE..TGN126..H..GEN;1TRFE,2TRFE..TGN12#..LHD..THP..5F; 2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202208-202307
(L); THA SOURCED PARTS
IDN SOURCED PARTS
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
(J)
(L)
11991APLATE, BALANCESHAFT THRUST, NO.1
MLM ADVENTURE PACKAGE,(L)
MLM ADVENTURE PACKAGE,(J)
12101PAN SUB-ASSY, OIL
IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
main12101-11120i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
JAPAN SOURCED PARTS; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012i1GRFE..GGN125..GCC; 1TRFE,2TRFE..TGN12#,136..THP; 2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
(J); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(L)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(L)
main90430-12031i1GRFE..GGN125..GCC; 1TRFE,2TRFE..TGN12#,136..THP; 2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
(J); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(L)
12144SILENCER, OIL PAN COVER
main12144-0C020i2TRFE..TGN121..5F..H;2TRFE..TGN126..(H,L)..GCC; 2TRFE..TGN121..5F..S; 2TRFE..TGN126..H..GCC; 2TRFE..TGN126..L..GEN; 2TRFE..TGN136..GEN;2TRFE..TGN121,126..THP..L..(ARL,LA);2TRFE..TGN126..THP..(H,S)..(GEN,LA)202208-202307
ASIA COLD COUNTRY SPEC; EGYPT SPEC; EGYPT SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
THA SOURCED PARTS
main12144-11010i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
JAPAN SOURCED PARTS; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
12581AINSULATOR, CYLINDER BLOCK, NO.1
THA SOURCED PARTS
IND SOURCED PARTS
main12581-11020i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
JAPAN SOURCED PARTS; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
12583AINSULATOR, CYLINDER BLOCK, NO.3
THA SOURCED PARTS
main12583-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL; 2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN; 2GDFTV..GUN125..RHD..H..GEN202208-202307
IND SOURCED PARTS; OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; OCEANIA(EURO 5),IND SOURCED PARTS
main12583-11020i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
JAPAN SOURCED PARTS; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
12584INSULATOR, CYLINDER BROCK, NO.4
ZAF SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
12585INSULATOR, CYLINDER BROCK, NO.5
THA SOURCED PARTS
main12585-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL; 2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN; 2GDFTV..GUN125..RHD..H..GEN202208-202307
IND SOURCED PARTS; OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; OCEANIA(EURO 5),IND SOURCED PARTS
main12585-11020i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
JAPAN SOURCED PARTS; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
1302CAMSHAFT & VALVE
13603BGEAR SUB-ASSY, BALANCESHAFT
MLM ADVENTURE PACKAGE,(L)
MLM ADVENTURE PACKAGE,(J)
13620BBALANCER ASSY, ENGINE
MLM ADVENTURE PACKAGE
15301GAGE SUB-ASSY, OIL LEVEL
THA SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
main15301-0E030i1GDFTV..GUN136..AGTP..LA; 2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202211-202310
BOLIVIA URUGUAY SPEC,BRA SOURCED PARTS; BRA SOURCED PARTS
main15301-11070i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
JAPAN SOURCED PARTS; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
MLM ADVENTURE PACKAGE,(L)
MLM ADVENTURE PACKAGE,(J)
15708NOZZLE SUB-ASSY, OIL, NO.1
(L)
(L)
main15708-11010×4i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
(J); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(J)
16630KPULLEY ASSY, IDLER
FRONT AIR CONDITIONER-COOLER LESS
1703AIR CLEANER
1708VACUUM PIPING
19313BRACKET, CRANK POSITION SENSOR HARNESS
THA SOURCED PARTS
main19313-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL; 2GDFTV..GUN125..6FC..S..GEN; 2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN; 2GDFTV..GUN125..RHD..H..GEN202208-202307
BRUNEI SPEC,IND SOURCED PARTS; IND SOURCED PARTS; OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; OCEANIA(EURO 5),IND SOURCED PARTS
main19313-11010i2GDFTV..GUN125..6FC..S..GEN; 2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN125..6F..L..(GCC,PH);2GDFTV..GUN135..THP..(LA,PH,TH);2GDFTV..GUN120,125..THP..6FC..(GCC,LA,TH);2GDFTV..GUN125..THP..6F..(H,S)..(GCC,LA,TH)202208-202307
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCEDPARTS; JAPAN SOURCED PARTS; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
27148CWIRE, CONNECTING
THA SOURCED PARTS
main27148-0E040i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL; 2GDFTV..GUN125..6FC..S..GEN; 2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN; 2GDFTV..GUN125..RHD..H..GEN202208-202307
BRUNEI SPEC,IND SOURCED PARTS; IND SOURCED PARTS; OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; OCEANIA(EURO 5),IND SOURCED PARTS
main27148-11010i2GDFTV..GUN125..6FC..S..GEN; 2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN125..6F..L..(GCC,PH);2GDFTV..GUN135..THP..(LA,PH,TH);2GDFTV..GUN120,125..THP..6FC..(GCC,LA,TH);2GDFTV..GUN125..THP..6F..(H,S)..(GCC,LA,TH)202208-202307
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCEDPARTS; JAPAN SOURCED PARTS; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
8401SWITCH & RELAY & COMPUTER
90105T0051
main90105-T0051
90105T0054
main90105-T0054
90105T0158
main90105-T0158
90105T0168
main90105-T0168
90105T0291
main90105-T0291
9011006040
main90110-06040
90110T0002
main90110-T0002
9011906938
main90119-06938
90119T0134
main90119-T0134
90119T0248
main90119-T0248
90119T0260
main90119-T0260
90119T0464
main90119-T0464
90178T0018
main90178-T0018
9025313017
main90253-13017
9030109018
main90301-09018
90301T0012
main90301-T0012
90480T0005
main90480-T0005
9155180616
main91551-80616
9167180610
main91671-80610
9167180612
main91671-80612
9167180616
main91671-80616
9415180600
main94151-80600
54 parts on this diagram · 8 diagrams in section
