ANTENNA

86077COVER KIT, ANTENNA

main86077-0D010

main86077-12030

86101CORD SUB-ASSY, ANTENNA

main86101-0K760iGUN126..AGTP..6FC..H;GUN126..AGTP..6F..H..LA;GUN125,TGN136..AGTP..(5F,6FC)..S202111-202210

AUDIO-*DA(8INCH) & *BT

main86101-0K770iTGN126..H..GEN202108-202207

main86101-0K851iTGN126..L..GEN;GUN135..THP..6F..LA;GUN125,TGN126..H..GCC;GUN135..(L,S)..(PH,VN);GUN126..THP..(GCC,LA,TWN);GUN122,125..LHD..THP..(L,S);TGN126..THP..(L,S)..(GCC,LA);GGN125,TGN120,121,136..LHD..THP202108-202207

main86101-0K861iTGN126,136..AGTP..(L,S);GUN125,126,135..AGTP..L;GUN135..AGTP..6F..S..LA;GUN125,126..AGTP..(H,S)..LA202111-202210

main86101-0K871iGUN136..6FC..LA;GGN125,GUN126,136,TGN128,138..H..BZAG202111-202210

main86101-0K880iTGN126..S..GEN202108-202207

main86101-0KE11iGUN125,135,TGN136..RHD..S..SA202109-202301

main86101-0KF31iGUN126..RHD..GEN;GUN125..6FC..(GEN,IDN);GUN125..RHD..6F..(L,S)..(GEN,IDN,TH);GUN120,121,122,135..RHD..(L,S)..(GEN,TH)202108-202207

main86101-0KF81iGUN126..THP..H..LA202108-202207

AUDIO-*DA(8INCH) & *BT

main86101-0KF81iGUN126..THP..H..LA202108-202207

AUDIO-AVN(8INCH) & *BT

main86101-0KF81iTGN121..5F..H;GGN125,GUN125,126,TGN126..H..GCC202108-202207

ASIA COLD COUNTRY SPEC

main86101-0KG81iGUN125..6FC..S..GEN;GUN126..RHD..6FC..H..GEN202108-202207

AUDIO-*DA(8INCH) & *BT & ENTUNE

main86101-0KG81iGUN126..TH;GUN125,135..RHD..H..(GEN,TH);GUN125,126,13#,TGN121..(L,S)..ARL202108-202207

AUDIO-*DA(8INCH) & *BT

main86101-0KG91iGUN126,136..S..ARL202108-202207

AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE

main86101-0KJ71iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,SA)202109-202303

main86101-0KJ81iGUN126..MMR202110-202210

main86101-0KJ91iGGN125,GUN125,135,TGN136..RHD..(H,S)..SA202109-202301

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86101-0KJ91iGGN125,GUN125,135,TGN136..RHD..(H,S)..SA202109-202301

AUDIO-*DA(FOR EMERGING MARKET)

main86101-0KJ91iGUN126,136..S..SA;GUN125,135..RHD..L..(KEN,SA)202109-202303

main86101-0KK01iGUN125,135,TGN136..RHD..S..SA202109-202301

AUDIO-*DA(8INCH) & *BT & DAB

main86101-0KK11iGUN126..IND202111-202303

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0KA21iTGN126..L..GEN;GUN126,136..S..ARL;TGN126..THP..(GCC,LA);GUN126,136..THP..(GCC,GEN,LA,PH,TH,TWN,VN);GGN125,GUN120,121,122,125,135,TGN120,121,136..THP202108-202207

ASIA COLD COUNTRY SPEC

main86101-0KA21iTGN126..L..GEN;GUN126,136..S..ARL;TGN126..THP..(GCC,LA);GUN126,136..THP..(GCC,GEN,LA,PH,TH,TWN,VN);GGN125,GUN120,121,122,125,135,TGN120,121,136..THP202108-202207

AUDIO-*DA(8INCH) & *BT & ENTUNE

main86101-0KA31iGUN126..AGTP..H..LA;GUN136..AGTP..6F..LA;GGN125,TGN126..AGTP..LA;GUN125,126,13#,TGN13#..AGTP..(L,S)202111-202210

AUDIO-*DA(8INCH) & *BT

main86101-0KA41iGUN136..6FC..LA;GGN125,GUN126,136,TGN128,138..H..BZAG202111-202210

main86101-0KA51iGUN126,136..S..ARL202108-202207

AUDIO-*DA(FOR EMERGING MARKET) & DAB

main86101-0KA51iGUN126,136..H..ARL202108-202207

AUDIO-*DA(8INCH) & *BT & DAB

main86101-0KA51iGUN126,136..H..ARL202108-202207

AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE

main86101-0KA51iGUN126,136..H..ARL202108-202207

AUDIO-AVN(8INCH) & *BT & DAB

main86101-0KA60iTGN126..S..GEN202108-202207

main86101-0KF40iTGN126..H..GEN202108-202207

main86101-0KK41iGUN126..PKN202109-202301

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86101-0KK41iGUN126..PKN202109-202301

AUDIO-*DA(8INCH) & *BT

main86101-0KK41iGUN126..PKN202109-202301

AUDIO-*DA(FOR EMERGING MARKET)

main86101-0KK41iGUN125,126..MA202109-202303

main86101-0KK51iGUN126,136..RHD..H..SA;GGN125,GUN125,135,TGN136..RHD..(H,S)..SA202109-202301

86101QCORD SUB-ASSY, ANTENNA, NO.4

8620AANTENNA SUB-ASSY, DIGITAL TELEVISION, NO.1

main8620A-0K010iGUN136..6FC..LA;GGN125,GUN126,136,TGN128,138..H..BZAG202111-202210

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0K200iTGN126..L..GEN;TGN126..THP..(GCC,LA);GGN125,GUN12#,13#,TGN120,121,136..THP202108-202207

ASIA COLD COUNTRY SPEC

main86300-0K210iTGN126..(H,S)..GEN202108-202207

main86300-0K220iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main86300-0K260iGUN126..IND202109-202303

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0K020iTGN126..(H,S)..GEN202108-202207

main86309-0K080iTGN126..L..GEN;TGN126..THP..(GCC,LA);GGN125,GUN12#,13#,TGN120,121,136..THP202108-202207

ASIA COLD COUNTRY SPEC

main86309-0K090iGUN126..IND202109-202303

86396NUT, ANTENNA

main86396-47010iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA

main863C2-0K010iTGN126..H..GEN;GUN126,136..H..ARL202108-202207

AUDIO-*DA(8INCH) & *BT & DAB

main863C2-0K010iTGN126..H..GEN;GUN126,136..H..ARL202108-202207

AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE

main863C2-0K010iTGN126..H..GEN;GUN126,136..H..ARL202108-202207

AUDIO-AVN(8INCH) & *BT & DAB

main863C2-0K010iTGN126..H..GEN;GUN126,136..H..ARL202108-202207

AUDIO-*DA(FOR EMERGING MARKET) & DAB

main863C2-0K030iGUN126,136..RHD..H..SA;GGN125,GUN125,135,TGN136..RHD..(H,S)..SA202109-202301

86769HOUSING, ROOF ANTENNA

main86769-0K010

main86769-0K020

main86769-0K030

8537171010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-71010

9011906915

main90119-06915

9011906A06

main90119-06A06

90119T0130

main90119-T0130

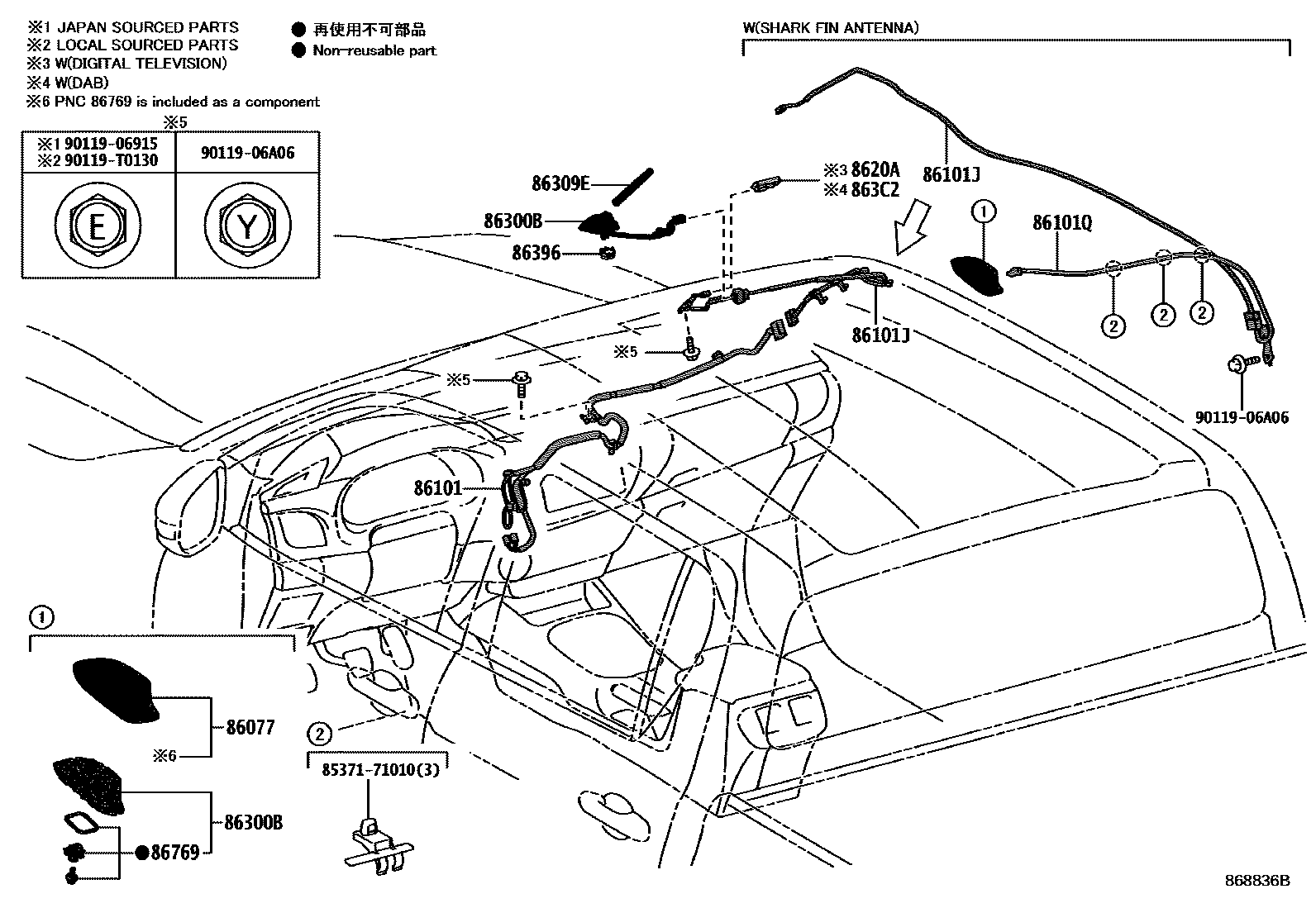

14 parts on this diagram · 1 diagram in section
