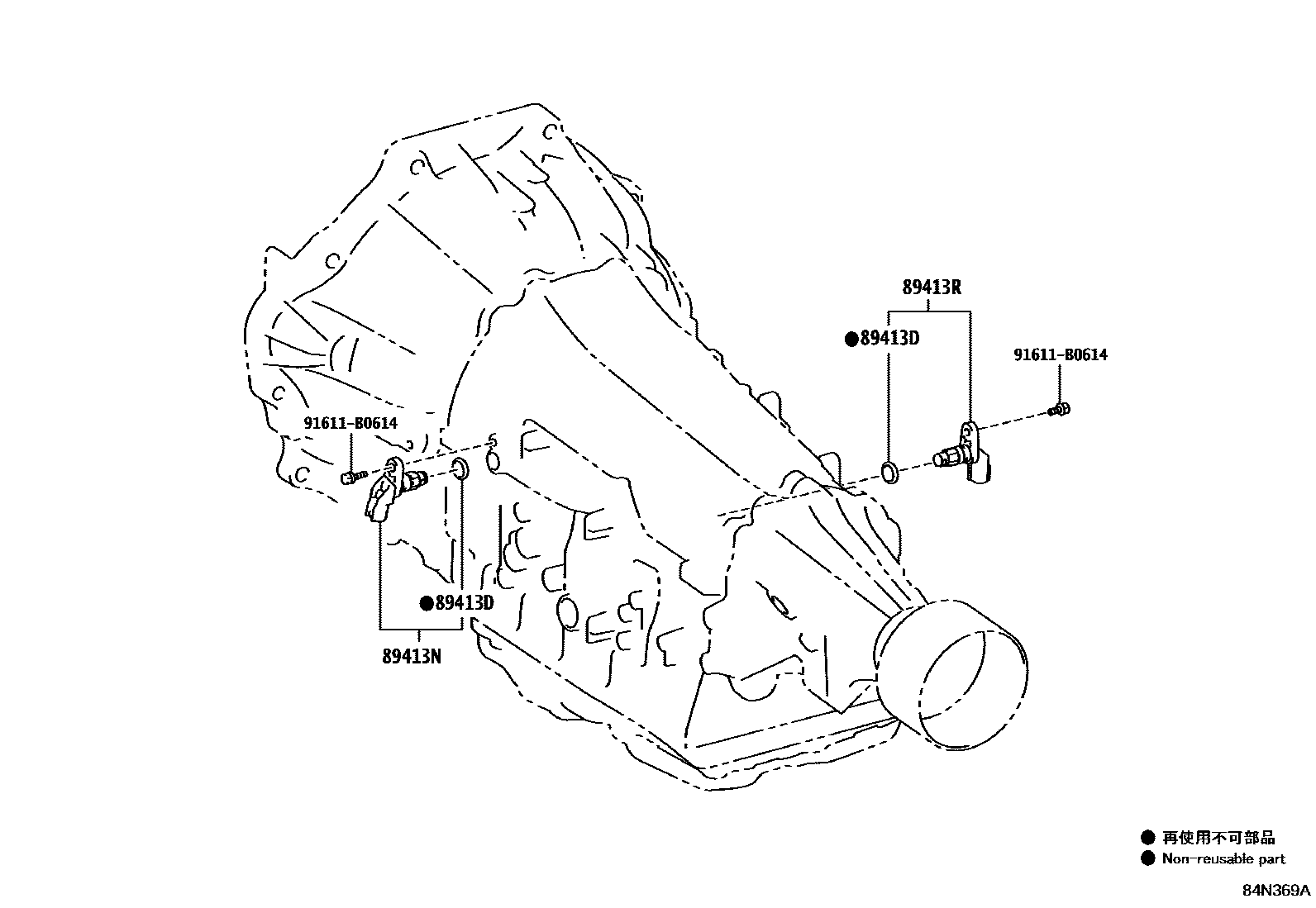

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1AC60 0002 1RC61

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iGUN126,136..THP..6FC..(L,S);GUN126..THP..6FC..H..(LA,PH);GUN126,136..H..(ARL,GCC,GEN,TH,TWN,VN);GGN125,GUN120,121,125,135,TGN121,126..THP..6FC202108-202207

VSC-W(*HSAC & *TSC & *DAC)

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-12020iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

89413RSENSOR, TRANSMISSION REVOLUTION (SP2)

main89413-12020iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

91611B0614

main91611-B0614

4 parts on this diagram · 2 diagrams in section
