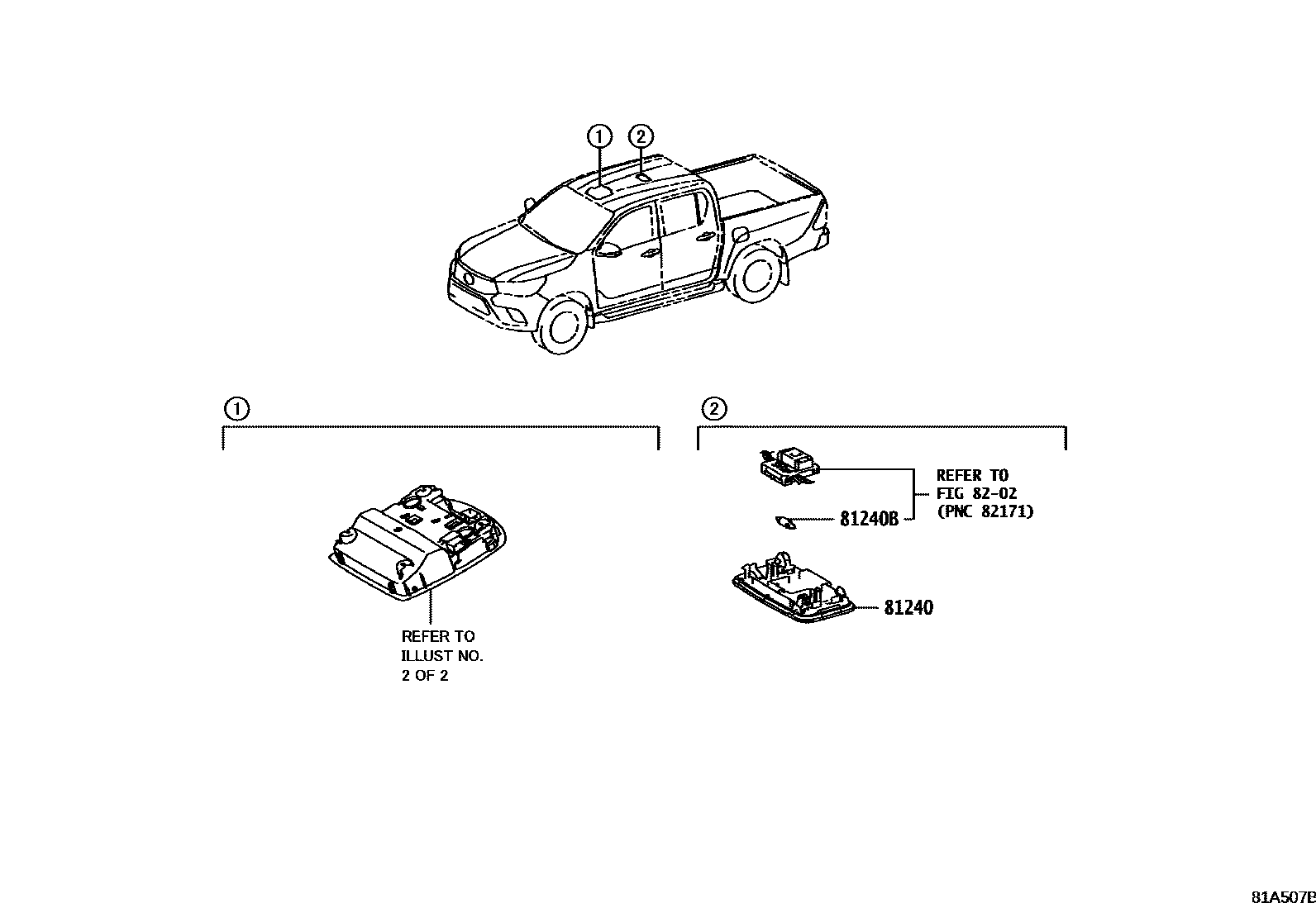

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-0K090-B0iGUN135..LHD..6F..H;GUN13#..THP..6FC..H;GUN121,126..6FC..TH;GUN125,126..H..(ARL,GEN,PH,TWN,VN)..CBU202108-202303

LT.GRAY,TRIM2#

main81240-0K090-B0iGUN135..LHD..6F..H;GUN13#..THP..6FC..H;GUN121,126..6FC..TH;GUN125,126..H..(ARL,GEN,PH,TWN,VN)..CBU202108-202301

LT.GRAY,TRIM20

main81240-0K090-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC202108-202207

LT.GRAY,TRIM20,3#

main81240-0K090-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC202108-202207

LT.GRAY,TRIM2#,3#

main81240-0K090-B0iGUN126..AGTP..6FC..H..LA202111-202210

LT.GRAY,TRIM20,22

main81240-0K090-C0iGUN126..MA202108-202301

BLACK,TRIM21,23

main81240-0K090-C0iGUN126..AGTP..6FC..H202108-202301

BLACK,TRIM23

main81240-0K090-C0iGUN126..6FC..H..SA202108-202301

BLACK,TRIM21

main81240-0K110-B0iGUN126..IND202203-202209

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..MMR,SA202108-202303

12V 8W

8202WIRING & CLAMP

→ Go to FIG 82-02

3 parts on this diagram · 2 diagrams in section
