SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM20,22
BLACK,TRIM23
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM20
BLACK,TRIM23
73119PLATE, SEAT BELT WEBBING CLIP
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73135-KK010-B0iGUN126..H..IV3;GUN136..THP..6F;GUN126..THP..6FC..LA;GUN135..RHD..THP..6F;GUN126..S..(ARL,GEN);GUN13#..THP..6FC..(L,S);GUN126..THP..6F..(LA,TH);GUN135..LHD..THP..6F.202108-202207
LT.GRAY,TRIM20,NO.1:REFER ILLUST.
BLACK,TRIM21,23,NO.1:REFER ILLUST.
LT.GRAY,TRIM20,NO.2:REFER ILLUST.
BLACK,TRIM23,NO.2:REFER ILLUST.
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73135-KK010-B0iGUN126..H..IV3;GUN136..THP..6F;GUN126..THP..6FC..LA;GUN135..RHD..THP..6F;GUN126..S..(ARL,GEN);GUN13#..THP..6FC..(L,S);GUN126..THP..6F..(LA,TH);GUN135..LHD..THP..6F.202108-202207
LT.GRAY,TRIM20,NO.1:REFER ILLUST.
BLACK,TRIM21,23,NO.1:REFER ILLUST.
main73135-KK020-B0iGUN126..H..IV3;GUN136..THP..6F;GUN126..THP..6FC..LA;GUN135..RHD..THP..6F;GUN126..S..(ARL,GEN);GUN13#..THP..6FC..(L,S);GUN126..THP..6F..(LA,TH);GUN135..LHD..THP..6F.202108-202207
LT.GRAY,TRIM20,NO.2:REFER ILLUST.
BLACK,TRIM23,NO.2:REFER ILLUST.
73178ACAP, SEAT BELT ANCHOR COVER
main73178-KK010-B0×2iGUN126..H..IV3;GUN136..THP..6F;GUN126..THP..6FC..LA;GUN135..RHD..THP..6F;GUN126..S..(ARL,GEN);GUN13#..THP..6FC..(L,S);GUN126..THP..6F..(LA,TH);GUN135..LHD..THP..6F.202108-202207
LT.GRAY,TRIM20
BLACK,TRIM23
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
LT.GRAY,TRIM20
BLACK,TRIM23
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-0K840-C0iGUN126..H..IV3;GUN136..THP..6F;GUN126..THP..6FC..LA;GUN135..RHD..THP..6F;GUN126..S..(ARL,GEN);GUN13#..THP..6FC..(L,S);GUN126..THP..6F..(LA,TH);GUN135..LHD..THP..6F.202108-202207
BLACK/GRAY,TRIM20,3#
BLACK/BLACK,TRIM21
main73210-0K860-C0iGUN126..GHA,KEN;GUN126,136..S..SA;GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202109-202208
BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM21
BLACK/GRAY,TRIM20
BLACK/BLACK,TRIM21
BLACK/GRAY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM23
BLACK/LT.GRAY,TRIM20
BLACK/BLACK,TRIM21
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0K550-C0iGUN126..H..IV3;GUN136..THP..6F;GUN126..THP..6FC..LA;GUN135..RHD..THP..6F;GUN126..S..(ARL,GEN);GUN13#..THP..6FC..(L,S);GUN126..THP..6F..(LA,TH);GUN135..LHD..THP..6F.202108-202207
BLACK/GRAY,TRIM20,3#
BLACK/BLACK,TRIM21
main73220-0K570-C0iGUN126..GHA,KEN;GUN126,136..S..SA;GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202109-202208
BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM21
main73220-0K571-C0iGUN126..GHA,KEN;GUN126,136..S..SA;GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202208-202303
BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM21
BLACK/GRAY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM23
BLACK/LT.GRAY,TRIM20
BLACK/BLACK,TRIM21
73230BELT ASSY, FRONT SEAT INNER, RH
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC,BLACK,TRIM2#
BLACK,TRIM2#
ECUADOR SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KA70-C0supersedes 73230-0KB00-C0iGUN125..L..GHA;GUN122,126..LHD..(GHA,SA);GUN125,LAN125,TGN126,136..LHD..(H,S)..(GHA,SA)202109-202303
BLACK,TRIM2#
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC,BLACK,TRIM2#
main73230-0KC20-C0iGUN135..H..TH;GUN125,126..6FC..(IDN,TH);GUN126..RHD..6F..H..(GEN,TH)202108-202207
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KC30-C0iGUN136..H..SA;GUN126..6F..H..(KEN,SA);GGN125,GUN126..RHD..6FC..H..SA202109-202303
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KF20-C0supersedes 73230-0KA80-C0iGUN122..PH;GUN122..S..GEN;GUN125,126,135,TGN121,126..LHD..(GEN,PH,VN)202108-202207
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#
main73230-0K870-C0iTGN126,136..AGTP..(L,S);GUN125,126,135..AGTP..L;GUN125,126..AGTP..S..LA;GUN135..AGTP..6F..S..LA202111-202210
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KA00-C0iGUN136..AGTP..6F;GUN135..AGTP..6FC;GUN136..6FC..BZAG;GUN126..6F..H..BZAG;GUN135..6F..S..BZAG;GUN126,TGN126..AGTP..H..LA;GUN125,126,TGN138..S..BZAG202111-202210
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KA50-C0iGUN125..RHD..S..GEN;GUN125..RHD..6F..L..GEN;GUN126..RHD..6F..S..GEN;GUN126..RHD..6FC..H..GEN202108-202207
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main73230-0KJ00-C0supersedes 73230-0KA80-C0iGUN125..(H,S)..IDN;GUN12#,135..RHD..(6F,6FC)..(GEN,TH)202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
732140K010PLATE, FRONT SEAT BELT ANCHOR
main73214-0K010
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
90105T0064
main90105-T0064
90109T0041
main90109-T0041
90109T0056
main90109-T0056
90178T0017
main90178-T0017
9167380616
main91673-80616

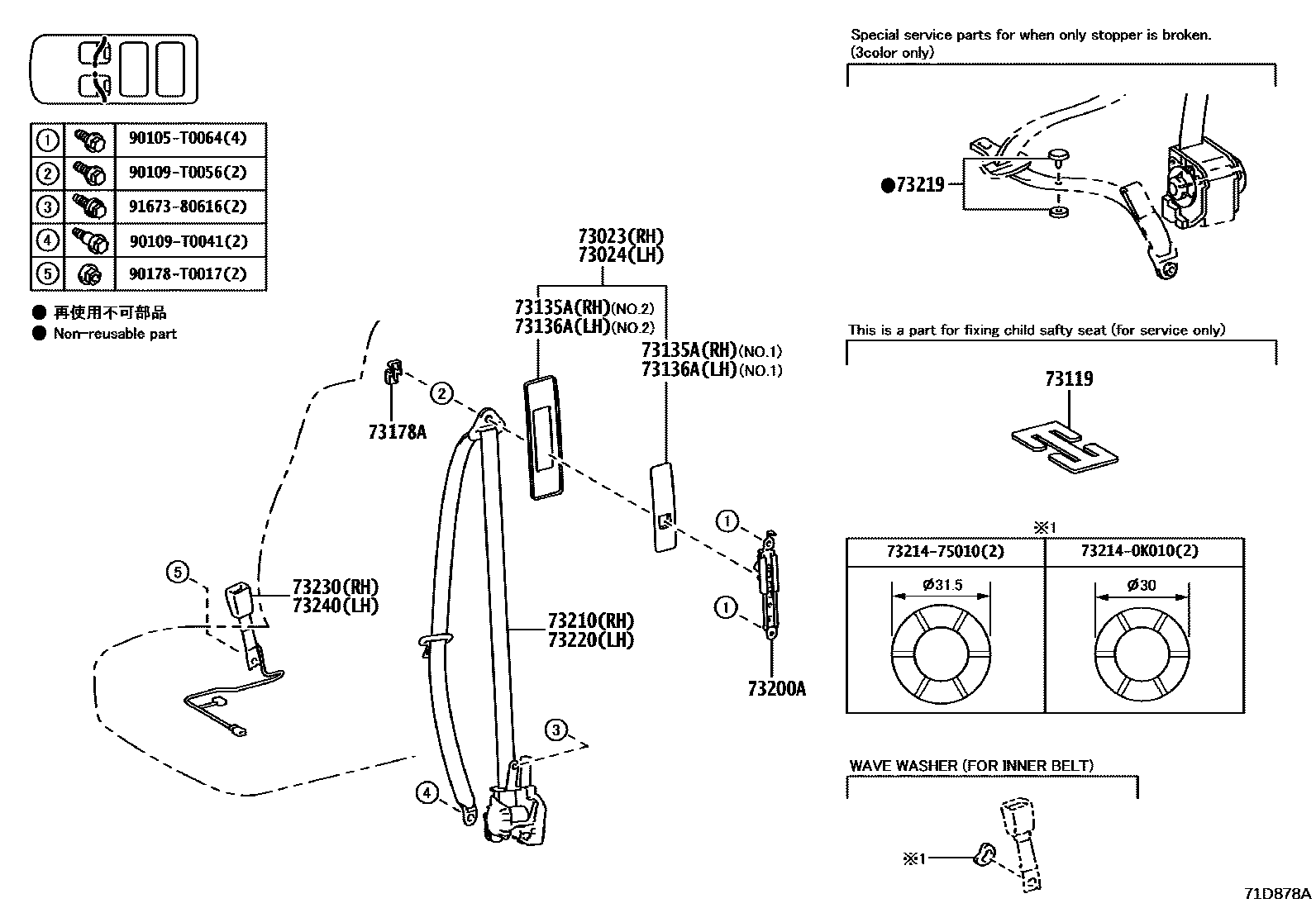

19 parts on this diagram · 5 diagrams in section
