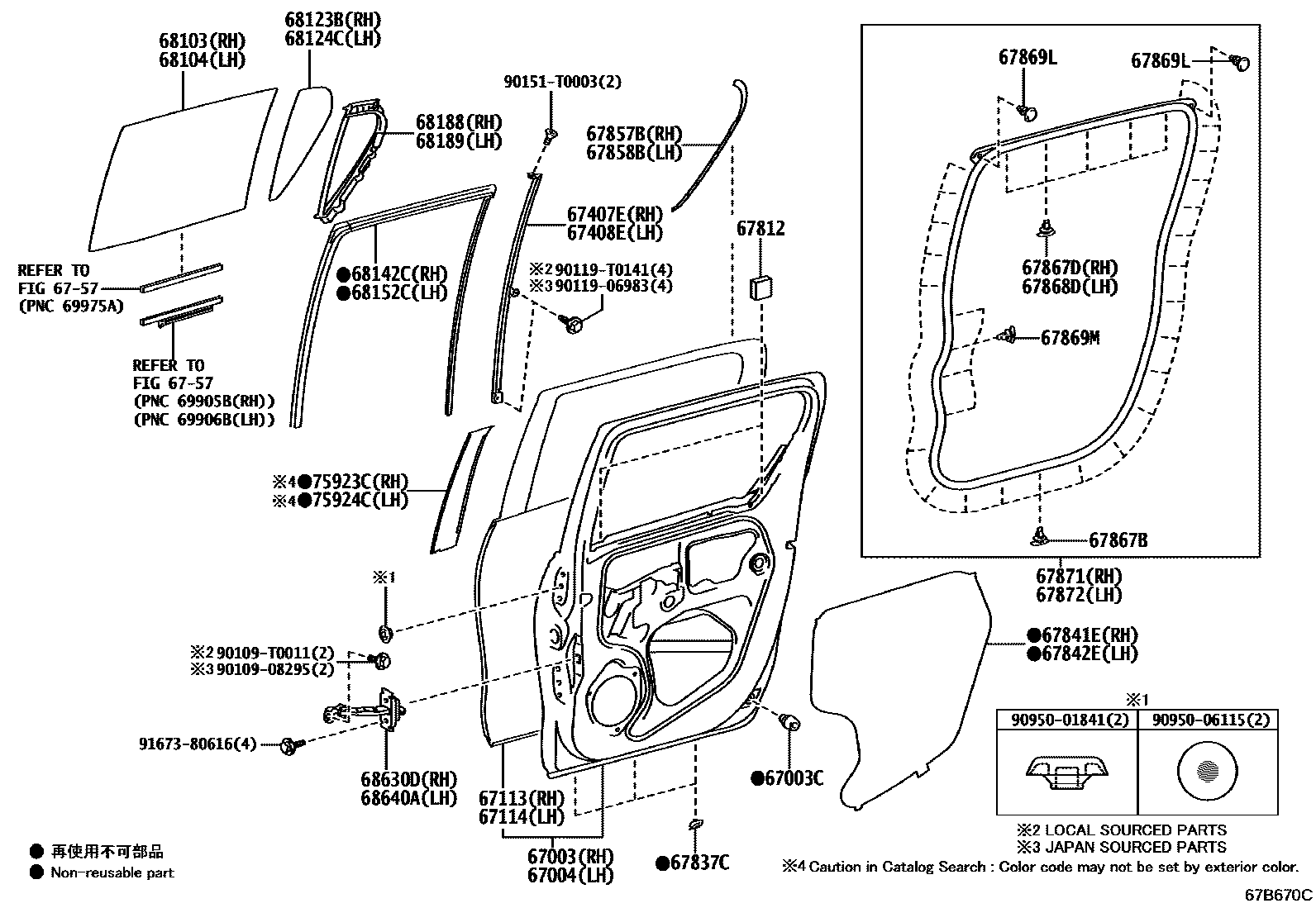

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-KK011iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA202108-202303

67003CCUSHION, REAR DOOR PANEL

main90541-09131iGUN126..PKN202108-202303

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-KK011iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA202108-202303

67113PANEL, REAR DOOR, OUTER RH

main67113-KK010iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA202108-202303

67114PANEL, REAR DOOR, OUTER LH

main67114-KK010iGUN126..IND202108-202303

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0K100iGUN126..PKN202108-202303

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0K100iGUN126..PKN202108-202303

6757REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-57

67812PAD, REAR DOOR SILENCER

main69759-0K030iGUN125,126..MA202108-202301

main69759-0K060iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K091iGUN126..IND202108-202209

main67837-0K092iGUN125..LHD..L..GEN;GUN122,125,TGN120,121,126..L..(GCC,IDN,PH)202108-202209

PLANT TMT

main67837-0K092iGUN125..LHD..L..GEN;GUN122,125,TGN120,121,126..L..(GCC,IDN,PH)202108-202207

SPEAKER-4SPEAKER,PLANT TMT

main67837-0K093iGUN126..(H,S)..PKN202210-202301

PLANT TMT

main67837-0K102iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202206

main67837-0K103iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202207-202303

main67837-0K121iGUN126..(H,S)..(MMR,PKN)202110-202301

EXCEPT PLANT TMT

main67837-0K210iGUN125,126..MA202110-202206

main67837-0K211iGUN125,126..MA202207-202208

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0K130iGUN126,TGN136..THP;GUN125..THP..L..LA;TGN126..(H,S)..GCC;GUN125..RHD..L..GEN;GUN122,TGN121..L..GEN;GUN135,TGN126..THP..(GEN,LA,PH,TH,VN);GGN125,GUN120,121,122,125,1202108-202207

SPEAKER-4SPEAKER

main67841-0K130iGUN125,126..(H,S)..MA202108-202303

main67841-0K140iGUN122,125,135,LAN125,TGN121,126,136..L..(GHA,KEN,SA)202108-202303

main67841-0K150iGUN126..(H,S)..PKN202202-202301

main67841-0K190iGUN126..L..PKN202202-202301

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0K010iGGN125,GUN125,126,13#,LAN125,TGN126,136..(H,S)..(GHA,KEN,MMR,SA)202108-202303

main67842-0K010iGUN126,TGN136..THP;GUN125..THP..L..LA;TGN126..(H,S)..GCC;GUN125..RHD..L..GEN;GUN122,TGN121..L..GEN;GUN135,TGN126..THP..(GEN,LA,PH,TH,VN);GGN125,GUN120,121,122,125,1202108-202207

SPEAKER-4SPEAKER

main67842-0K020iGUN135..ARL;GUN125..LHD..L..GEN;GUN120,122,125,TGN120,121,126..L..(ARL,GCC,IDN,PH,TH)202108-202303

main67842-0K060iGUN126..(H,S)..PKN202202-202301

main67842-0K080iGUN126..L..PKN202202-202301

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-0K030iTGN126..(H,S)..GEN202108-202207

main67857-0K080iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0K030iTGN126..(H,S)..GEN202108-202207

main67858-0K080iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12150iGUN126..IND202108-202303

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52010iGUN125,126..MA202108-202303

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-52030iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202303

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-0K010iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main9004A-46317iGUN126..PKN202212-202301

main90467-06084iGUN125,126..MA202108-202303

67869MCLIP, DOOR WEATHERSTRIP

main67867-0K020iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202301

main67867-50050iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0K081iGUN126..MMR,PKN202108-202301

main67871-0K111iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main67871-0K120iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202112

main67871-0K121iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202201-202210

main67871-0K201iGUN125,126..MA202110-202208

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0K081iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202301

main67872-0K111iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main67872-0K120iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202112

main67872-0K121iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202201-202210

main67872-0K201iGUN125,126..MA202110-202208

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0K210iGUN126..S..ARL;GUN122,136..THP..(L,S);GUN126,136..THP..(GEN,LA,PH,TH,VN);GGN125,GUN120,121,125,135,TGN120,121,126,136..THP202108-202210

main68113-0K220iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main68113-0K230iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main68113-0K240iGUN126..LHD..6FC..H..GEN202108-202207

BACK GLASS-FIX TYPE(PRIVACY)

main68113-0K380iGUN125,126..MA202110-202208

main68113-0K410iGUN122,126..H..GCC202108-202207

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68113-0K470iGUN126..PKN202202-202301

main68113-0K510iGUN126..IND202203-202209

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0K210iGUN126..MMR202108-202210

main68114-0K220iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main68114-0K230iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main68114-0K240iGUN126,136..H..(ARL,TWN)202108-202207

BACK GLASS-FIX TYPE(PRIVACY)

main68114-0K380iGUN125,126..MA202110-202208

main68114-0K410iGGN125,GUN125,TGN121,126..H..GCC202108-202207

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68114-0K470iGUN126..PKN202202-202301

main68114-0K510iGUN126..IND202203-202209

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0K231iGUN126..MMR202108-202210

main68123-0K241iGUN126..LHD..6FC..H..GEN202108-202207

BACK GLASS-FIX TYPE(PRIVACY)

main68123-0K250iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main68123-0K270iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main68123-0K280iGUN125,126..MA202110-202208

main68123-0K330iGUN122,126..H..GCC202108-202207

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68123-0K380iGUN126..PKN202202-202301

main68123-0K420iGUN126..IND202203-202209

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0K231iGUN126..MMR202108-202210

main68124-0K241iGUN126..LHD..6FC..H..GEN202108-202207

BACK GLASS-FIX TYPE(PRIVACY)

main68124-0K250iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main68124-0K270iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main68124-0K280iGUN125,126..MA202110-202208

main68124-0K330iGUN122,126..H..GCC202108-202207

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68124-0K380iGUN126..PKN202202-202301

main68124-0K420iGUN126..IND202203-202209

68142CRUN, REAR DOOR GLASS, RH

main68142-0K080iGUN126..MMR,PKN202108-202301

main68142-0K100iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main68142-0K110iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

68152CRUN, REAR DOOR GLASS, LH

main68152-0K080iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202301

main68152-0K100iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main68152-0K110iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0K111iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

main68188-0K141iGUN125,126..MA202110-202208

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0K111iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202303

main68189-0K141iGUN125,126..MA202110-202208

68630DCHECK ASSY, REAR DOOR, RH

main68630-0K080iGUN126..IND202109-202303

main68630-0K091iGUN126..MMR,PKN202108-202301

main68630-0K100iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

68640ACHECK ASSY, REAR DOOR, LH

main68630-0K080iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main68630-0K091iGUN126..MMR,PKN202108-202301

main68630-0K100iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

75923CTAPE, BLACK OUT, NO.2 RH

main75923-0K030iGUN135..L..TH;GUN126..LHD..S..GEN;TGN126..H..(GCC,GEN);GUN126..THP..S..(ARL,LA);GUN135..THP..(H,S)..(GEN,LA,PH,TH);GGN125,GUN122,125,126,TGN121..THP..H;GUN125,136,T202108-202207

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75923-0K030iGUN125,126..H..MA;GUN125..6F..S..MA202108-202301

main75923-0K040iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)..LA202111-202210

main75923-0K090iGUN125..S..GHA;GGN125,GUN125,126,136..H..(GHA,KEN,SA)202109-202303

75924CTAPE, BLACK OUT, NO.2 LH

main75924-0K030iGUN126..(H,S)..(MMR,PKN)202108-202301

main75924-0K030iGUN135..L..TH;GUN126..LHD..S..GEN;TGN126..H..(GCC,GEN);GUN126..THP..S..(ARL,LA);GUN135..THP..(H,S)..(GEN,LA,PH,TH);GGN125,GUN122,125,126,TGN121..THP..H;GUN125,136,T202108-202207

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75924-0K040iGGN125,GUN125,126,13#,TGN128,138..(H,S)..BZAG202111-202210

main75924-0K090iGUN125..S..GHA;GGN125,GUN125,126,136..H..(GHA,KEN,SA)202109-202303

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

90151T0003

main90151-T0003

9095001841

main90950-01841

9095006115

main90950-06115

9167380616

main91673-80616

41 parts on this diagram · 2 diagrams in section
