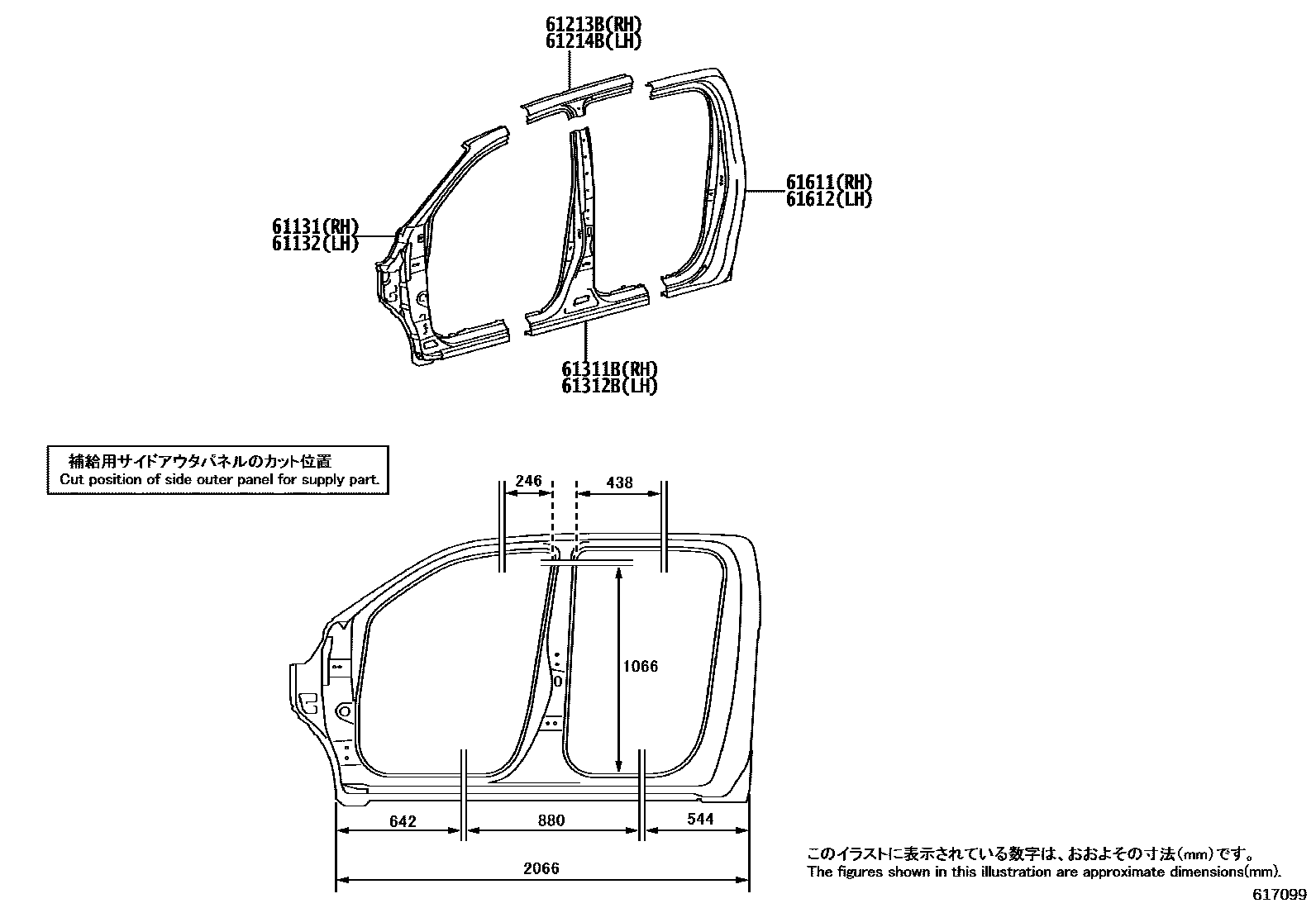

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202207

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202207

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-KK010iGUN125,126..MA202108-202208

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202207

61311BPILLAR, CENTER BODY, OUTER RH

main61311-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202207

61312BPILLAR, CENTER BODY, OUTER LH

main61312-KK010iGUN126..IND202108-202209

61611PANEL, QUARTER, RH

main61611-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202207

61612PANEL, QUARTER, LH

main61612-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202207

8 parts on this diagram · 3 diagrams in section
