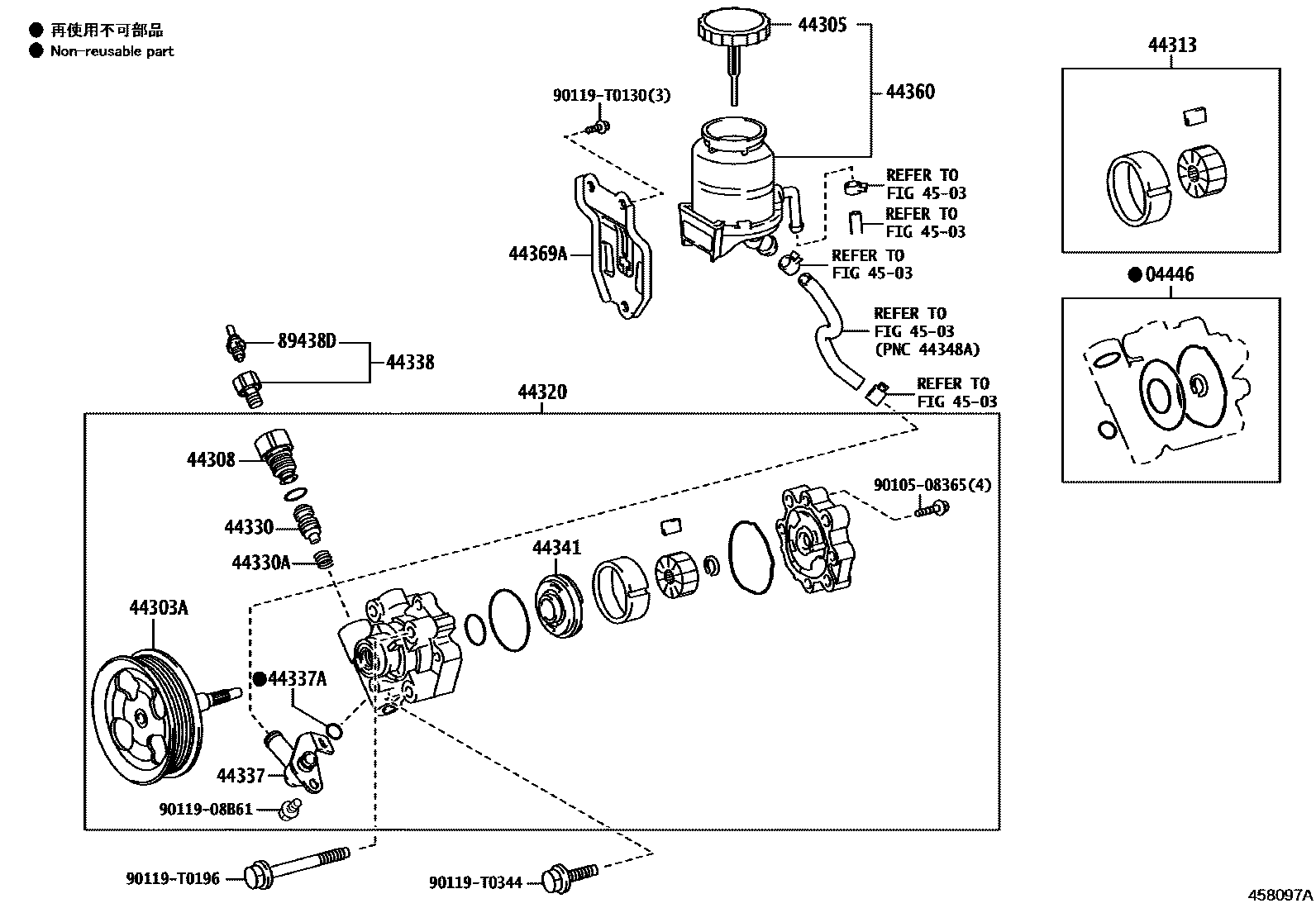

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1W(VSC) 0003 1W/O(VSC) 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-06110iGUN126..PKN202108-202301

main04446-06130iGGN125..GCC202108-202207

main04446-0B030iLAN125202109-202301

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06040iGUN126..PKN202108-202301

main44303-0K030iGGN125..SA202108-202301

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0K030iGUN126..PKN202108-202301

main44305-22061iTGN126,128,13#..AGTP202108-202210

main44305-32040iGGN125..AGTP202108-202210

44308UNION SUB-ASSY, PRESSURE PORT

main44308-0K010iGUN122,TGN121..SA202108-202301

main44308-0K040iTGN126,128,13#..AGTP202108-202210

main44308-0K050iGUN125..L..MA202108-202208

main44308-0K060iLAN125202109-202301

main44308-0K100iGGN125..SA202108-202301

44313ROTOR, VANE PUMP

main44313-09010iGUN126..IND202108-202209

main44313-09030iTGN126,136..THP202108-202207

main44313-09040iLAN125202109-202301

main44313-09060iGGN125..AGTP202108-202210

44320PUMP ASSY, VANE

main44310-0K010iTGN120,121..THP202108-202207

main44310-0K080iTGN126,136..THP202108-202207

main44310-0K100iGGN125..SA202108-202301

main44310-0K120iGUN120,121,122..THP202108-202207

main44310-0K130iGUN126..L..PKN;GUN135..LHD..SA202108-202301

main44310-0K142iGUN125,126,13#..AGTP202108-202210

main44320-0K020iLAN125202109-202301

44330VALVE ASSY, FLOW CONTROL

main44330-04010iLAN125202109-202301

MARK A

main44330-04020iLAN125202109-202301

MARK B

main44330-04030iLAN125202109-202301

MARK C

main44330-04040iLAN125202109-202301

MARK D

main44330-04050iLAN125202109-202301

MARK E

main44330-04060iLAN125202109-202301

MARK F

main44330-0K130iTGN121,126,136..SA202108-202301

MARK A

main44330-0K140iTGN126,128,13#..AGTP202108-202210

MARK B

main44330-0K150iTGN126,128,13#..AGTP202108-202210

MARK C

main44330-0K160iTGN121,126,136..SA202108-202301

MARK D

main44330-0K170iTGN126,128,13#..AGTP202108-202210

MARK E

main44330-0K180iTGN120,121,126,136..THP202108-202207

MARK F

main44330-0K250iGUN135..LHD..SA;GUN122,126..L..(PKN,SA)202108-202301

MARK A

main44330-0K260iGUN125..L..MA202108-202208

MARK B

main44330-0K270iGUN135..LHD..SA;GUN122,126..L..(PKN,SA)202108-202301

MARK C

main44330-0K280iGUN125..L..MA202108-202208

MARK D

main44330-0K290iGUN125..L..GEN;GUN125..S..IDN202108-202207

MARK E

main44330-0K300iGUN125..L..GEN;GUN125..S..IDN202108-202207

MARK F

main44330-0K330iGUN126,136..THP;GUN125..(H,S)..IDN;GUN135..THP..(H,S);GUN135..THP..L..(ARL,GEN,LA,VN);GUN125..THP..(ARL,GCC,GEN,LA,TH,VN)202108-202207

MARK C

main44330-0K340iGUN126..IND202108-202209

MARK D

main44330-0K350iGUN126,136..THP;GUN125..(H,S)..IDN;GUN135..THP..(H,S);GUN135..THP..L..(ARL,GEN,LA,VN);GUN125..THP..(ARL,GCC,GEN,LA,TH,VN)202108-202207

MARK E

main44330-0K360iGUN126,136..THP;GUN125..(H,S)..IDN;GUN135..THP..(H,S);GUN135..THP..L..(ARL,GEN,LA,VN);GUN125..THP..(ARL,GCC,GEN,LA,TH,VN)202108-202207

MARK F

main44330-25010iGGN125..GCC202108-202207

MARK A

main44330-25020iGGN125..SA202108-202301

MARK B

main44330-25030iGGN125..AGTP202108-202210

MARK C

main44330-25040iGGN125..SA202108-202301

MARK D

main44330-25050iGGN125..AGTP202108-202210

MARK E

main44330-25060iGGN125..AGTP202108-202210

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90080-50247iLAN125202109-202301

main90501-14173iGGN125..SA202108-202301

main90501-T0001iGUN126..PKN202108-202301

44337UNION, POWER STEERING SUCTION PORT

main44337-0K020iLAN125202109-202301

main44337-0K040iGUN126..IND202108-202209

main44337-0K050iGGN125..AGTP202108-202210

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30049iLAN125202109-202301

main90080-30093iGUN122,125,126,13#..GHA,KEN,MMR,SA202108-202303

main90301-15025iGGN125..AGTP202108-202210

44338UNION, PRESSURE PORT

main44338-71010iGGN125..GCC202108-202207

44341PLATE, VANE PUMP SIDE, FRONT

main44341-06010iGUN126..IND202108-202209

main44341-60040iGGN125..GCC202108-202207

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0K050iGUN12#,13#..THP202108-202207

main44360-0K060iLAN125202109-202301

main44360-0K070iGGN125..SA202108-202301

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-0K010iGUN126..PKN202108-202301

main44390-0K020iLAN125202109-202301

main44390-0K030iGGN125..SA202108-202301

4503

89438DSWITCH, POWER STEERING OIL PRESSURE

main89438-71010iGGN125,TGN120,121,126,136..THP202108-202207

9010508365

main90105-08365

9011908B61

main90119-08B61

90119T0130

main90119-T0130

90119T0196

main90119-T0196

90119T0344

main90119-T0344

21 parts on this diagram · 5 diagrams in section
