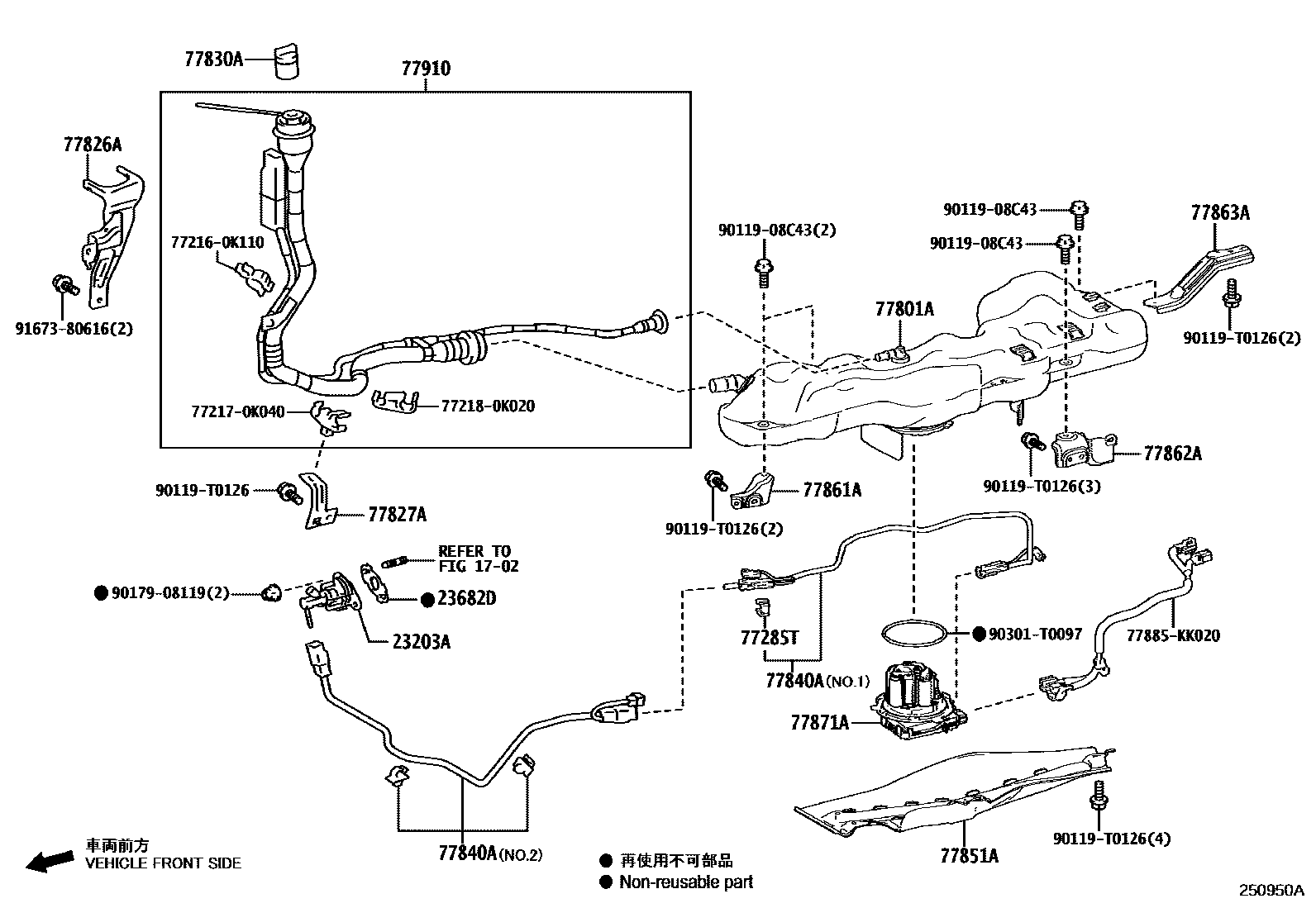

UREA TANK & TUBE
1702EXHAUST PIPE
23203AINJECTOR SET, UREA
23682DGASKET, NOZZLE HOLDER
main23682-11010i1GDFTV..GUN126..TWN;2GDFTV..GUN135..L..GEN; 2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
77285TCLAMP, UREA TUBE, NO.1
main77285-0K140iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN135..L..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
77801ATANK SUB-ASSY, UREA
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
77826ASUPPORT, UREA TANK FILLER PIPE, NO.1
main77826-KK010iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN135..L..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
77827ASUPPORT, UREA TANK FILLER PIPE, NO.2
main77827-KK010iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN135..L..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
77830ACAP ASSY, UREA TANK
main77830-0K050iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN135..L..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
77840ATUBE ASSY, UREA W/HEATER
main77840-0K021iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN135..L..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),NO.2; NO.2
main77841-0K030iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN135..L..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),NO.1; NO.1
77851APROTECTOR, UREA TANK
main77851-KK050iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN135..L..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
77861ABRACKET, UREA TANK, NO.1
77862ABRACKET, UREA TANK, NO.2
main77862-KK030iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN135..L..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
77863ABRACKET, UREA TANK, NO.3
main77863-KK050iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN135..L..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
77871APUMP, UREA
main77870-0K010iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN135..L..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
77910PIPE ASSY, UREA TANK FILLER
main77910-0K021iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN135..L..GEN202108-202207
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
772160K110COVER, FUEL PIPE
main77216-0K110
772170K040CONNECTOR, FUEL TANK INLET PIPE (FOR LPG)
main77217-0K040
772180K020PLATE, FUEL INLET PIPE SET
main77218-0K020
77885KK020HARNESS, UREA TANK
main77885-KK020
9011908C43
main90119-08C43
90119T0126
main90119-T0126
9017908119
main90179-08119
90301T0097
main90301-T0097
9167380616
main91673-80616
24 parts on this diagram · 1 diagram in section
