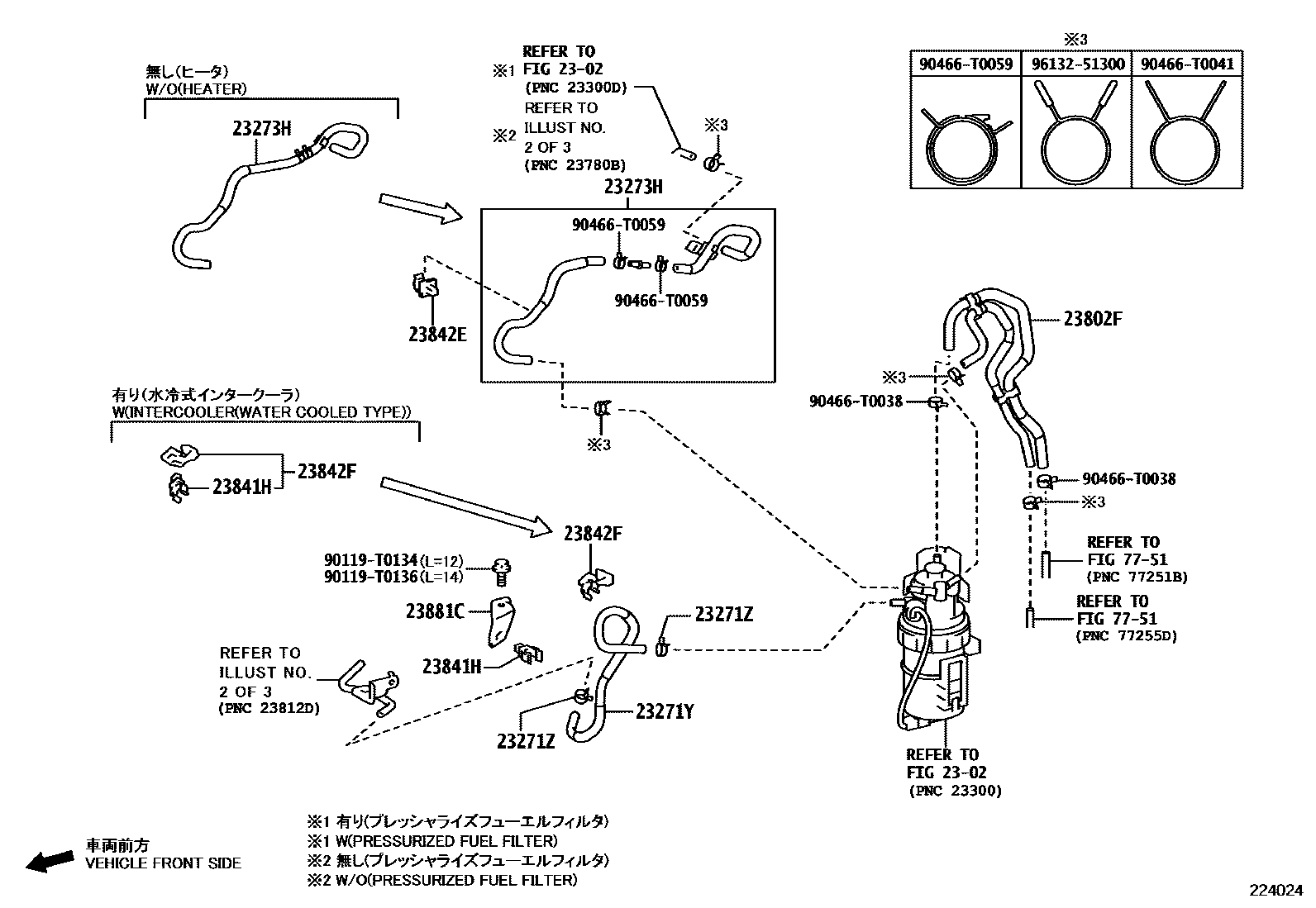

INJECTION PUMP ASSEMBLY

0001 1 0002 1W(PRESSURIZED FUEL FILTER) 0003 1W/O(PRESSURIZED FUEL FILTER) 0004 1 0005 1

2302

23271YHOSE, FUEL

main23271-0E031i1GDFTV..GUN126..TWN;2GDFTV..GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main23271-0E041i2GDFTV..GUN135..H..GEN;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN12#,136..THP..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202108-202207

23271ZCLIP, HOSE

main90466-T0023×2i1GDFTV,2GDFTV..GUN12#,13#..THP202108-202207

23273HHOSE, FUEL, NO.2

main23273-0L132supersedes 23273-0E040i2GDFTV..GUN135..6F..S..PH202108-202207

FRONT AIR CONDITIONER-AUTO

main23273-0L200i2GDFTV..GUN135..(L,S)..TH;2GDFTV..GUN135..6F..S..PH;2GDFTV..GUN120,122,125..(L,S)..(IDN,PH,TH)202108-202207

main23273-54190i5LE..LAN125202109-202301

23802FHOSE, FUEL

main23801-0E020i1GDFTV..GUN126..IND202108-202209

main23801-0L050i1GDFTV,2GDFTV..GUN122,125,126,13#..GHA,KEN,MMR,SA202108-202303

23841HCLAMP, FUEL HOSE

main23841-0L010i1GDFTV,2GDFTV..GUN125,126,13#..AGTP202108-202210

PLANT TMT

main23841-0L030i1GDFTV..GUN126..IND202203-202209

PLANT TKM

23842ECLAMP, FUEL PIPE, NO.1

main23841-0L041i1GDFTV..GUN126..PKN202108-202301

PLANT TMT

main23841-0L061i1GDFTV..GUN126..IND202203-202209

PLANT TKM

23842FCLAMP, FUEL PIPE, NO.2

main23842-0E010i1GDFTV..GUN126..TWN;2GDFTV..GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main23842-0L010i1GDFTV,2GDFTV..GUN125,126..MA202108-202208

PLANT TMT

main23842-0L030i1GDFTV..GUN126..IND202203-202209

PLANT TKM

23881CBRACKET, FUEL HOSE

main23881-0E011i1GDFTV,2GDFTV..GUN125,126..MA202108-202208

TYPE B:REFER ILLUST.

7751

90119T0134

main90119-T0134

90119T0136

main90119-T0136

90466T0038

main90466-T0038

90466T0041

main90466-T0041

90466T0059

main90466-T0059

9613251300

main96132-51300

16 parts on this diagram · 5 diagrams in section
