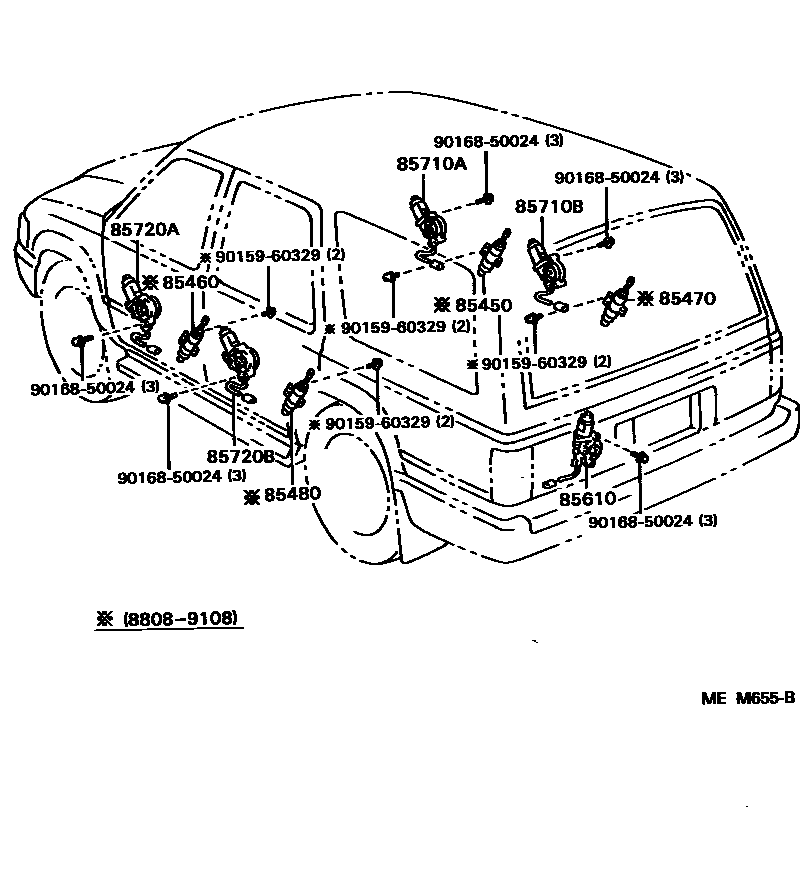

DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-17030iRN12#,VZN120,90..SR5198908-199108

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-17040iRN12#,85,90,VZN120,90..SR5198808-198908

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-30530iRN12#,VZN120198904-199108

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-30540iRN12#,VZN120198904-199108

85610MOTOR ASSY, TAIL GATE REGULATOR

main85710-35050iVZN120199108-199511

main85710-89105iRN12#,VZN120198904-199108

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-35010iVZN90..SR5199108-199501

main85710-35060iRN12#,VZN120; VZN90..SR5199102-199108

main85710-35070iVZN120199108-199511

main85710-89104iRN12#,85,90,VZN120,90..SR5198808-199102

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-35020iVZN120199108-199511

main85710-89106iRN12#,VZN120198904-199108

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-35010iVZN90..SR5199108-199501

main85720-35060iRN12#,VZN120199102-199108

main85720-35070iVZN120199108-199511

main85720-89102iVZN90..SR5199102-199108

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-35020iVZN120199108-199511

main85720-89103iRN12#,VZN120198904-199108

9015960329

main90159-60329

9016850024

main90168-50024

11 parts on this diagram · 1 diagram in section
