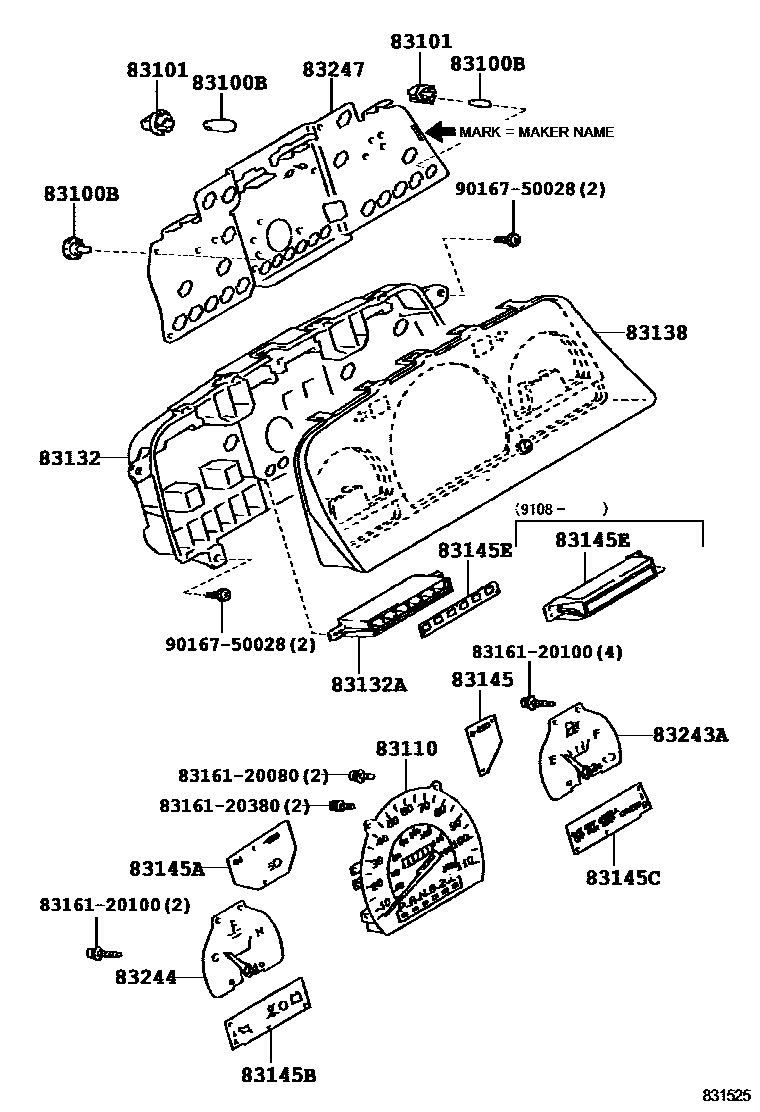

METER

0001 1W/O(TACHOMETER) 0002 1W(TACHOMETER) 0003 1SPEEDOMETER DRIVE CABLE 0005 1SPEEDOMETER DRIVE CABLE 0007 1

83100BBULB, COMBINATION METER, NO.1

main83109-37020iRN8#,90,VZN85,9#..DLX,STD199208-199501

12V 1.7W

main83119-35020iRN85,90,VZN9#..4HC..CND199108-199501

14V 1.4W

main83120-04010iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199501

12V 3.4W,GREEN CAP

main83120-04040iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199208-199501

12V 3.4W,W(SOCKET)

main83120-04050iRN80..STD..USA199208-199501

12V 1.4W,W(SOCKET)

main83120-04060iRN80..STD..USA199208-199501

12V 1.7W,W(SOCKET)

main84999-30020iRN8#,90,VZN85,9#..4HC..(DLX,STD)198808-199108

12V 1.4W

main90981-11018iVZN85,90..R..DLX..USA198808-199501

12V 1.2W W/O SOCKET,W(TRIP METER & TACHOMETER)

main90981-11018iVZN90..R..DLX..CND198808-199511

12V 1.2W W/O SOCKET

main90981-11018iVZN120199408-199511

12V 1.2W W/O SOCKET,12V 1.4W,W(4-WHEEL *66)

main90981-11018iVZN120199308-199309

12V 1.2W W/O SOCKET,W(*66)

main99132-12034iRN80..STD..USA198808-199511

12V 3.4W

main99132-12034iRN80..4HC;RN8#,90..CND;RN85,90..DLX..EFI..USA;RN80,VZN85,9#..(R,W)..(DLX,STD)198808-199501

12V 3.4W,W(TRIP METER)

main99132-12034iRN80..STD..USA199108-199501

12V 3.4W,W(*66)

main99132-12034iRN8#,90,VZN85,90..5F..DLX198808-199501

12V 3.4W,W(TRIP METER & TACHOMETER)

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iRN85,90..4HC..SR5198808-199208

12V 1.4W BULB

main83101-14040iRN85,90..4HC..SR5198808-199108

W(TRIP METER & TACHOMETER),12V 1.4W BULB

main83101-14040iVZN120199308-199511

W(*66),BLUB:12V 1.4W

main83101-14040iVZN120,90..SR5199108-199511

BULB:12V 1.4W

main83101-14040iVZN85,90..R..DLX..USA199108-199501

W(TRIP METER & TACHOMETER),BULB:12V 1.4W

main83101-20040iRN8#,90..DLX..CBR..USA198808-199108

W(TRIP METER & TACHOMETER),12V 3.4W BULB

main83101-20040iRN8#,90..G..USA198808-199208

12V 3.4W BULB

main83101-20040iRN80..STD..USA199108-199208

W(*66),12V 3.4W BULB

main83101-20040iRN80..STD..USA199208-199308

BULB;12V 3.4W

main83101-20040iRN80..STD..USA199108-199511

BULB:12V 3.4W

main83101-20040iRN8#,90,VZN85,90..5F..DLX199108-199501

W(TRIP METER & TACHOMETER),BULB:12V 3.4W

main83101-20040iRN80..STD..USA199208-199501

W(TRIP METER),BULB:12V 3.4W

83110SPEEDOMETER ASSY

main83110-04010iRN80..STD..USA199308-199501

VDO-YAZAKI

main83110-04010iRN8#,90,VZN90..5F..DLX..USA199308-199501

W(*66),VDO-YAZAKI

main83110-04010iRN80..STD..USA199208-199308

VDO,YAZAKI

main83110-04010iRN80..STD..USA199208-199308

W(*66),VDO,YAZAKI

main83110-04030iRN8#,90,VZN85,9#..4HC..USA199208-199501

VDO-YAZAKI

main83110-35170iRN8#,90,VZN85,9#..5F..(DLX,STD)..USA199108-199208

main83110-35170iRN80..STD..USA199208-199501

W(*66),YAZAKI

main83110-35170iRN80..STD..USA199208-199501

YAZAKI

main83110-35180iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199108-199501

W(TRIP METER)

main83110-35190iRN8#,90,VZN85,9#..4HC..USA199108-199208

main83110-35190iRN8#,90,VZN85,9#..4HC..USA199208-199501

YAZAKI

main83110-35200iRN8#,90,VZN90..5F..CND199108-199501

W(TRIP METER)

main83110-35210iRN8#,90,VZN90..5F..CND199108-199501

main83110-35220iRN85,90,VZN9#..4HC..CND199108-199501

main83110-35380iRN8#,90,VZN85,90..5F..DLX..USA199108-199501

W(TRIP METER & TACHOMETER)

main83110-35380iVZN120,90..SR5199108-199501

main83110-35390iRN85,90,VZN90..5F..CND199108-199501

W(TRIP METER & TACHOMETER)

main83110-35540iRN8#,90..W..USA199105-199108

main83110-35550iRN8#,90..W..DLX..USA199105-199108

W(TRIP METER)

main83110-35560iRN8#,90..4HC..USA199105-199108

main83110-35570iRN8#,90..W..CND199105-199108

main83110-35580iRN8#,90..W..CND199105-199108

W(TRIP METER)

main83110-35590iRN85,90..4HC..CND199105-199108

main83110-35660iRN120199105-199108

W(TRIP METER & TACHOMETER)

main83110-35670iRN121199105-199108

W(TRIP METER & TACHOMETER)

main83110-35710iVZN85,9#..R..(DLX,STD)..USA199105-199108

main83110-35720iVZN85,9#..R..(DLX,STD)..USA199105-199108

W(TRIP METER)

main83110-35730iVZN85,9#..4HC..USA199105-199108

main83110-35740iVZN90..R..DLX..CND199105-199108

main83110-35750iVZN90..R..DLX..CND199105-199108

W(TRIP METER)

main83110-35760iVZN9#..4HC..CND199105-199108

main83110-35770iVZN120,90..SR5..USA199105-199108

W(TRIP METER & TACHOMETER)

main83110-35780iVZN90..SR5..CND199105-199108

W(TRIP METER & TACHOMETER)

main83110-3D200iVZN120199408-199511

main83110-89298iRN8#,90..MTM..(DLX,STD)..USA198808-199105

sub83110-35540

main83110-89299iRN8#,90..5F..DLX..USA198808-199105

W(TRIP METER)

sub83110-35550

main83110-89300iRN8#,90..4HC..DLX..USA198808-199105

sub83110-35560

main83110-89301iRN8#,90..5F..CND198808-199105

sub83110-35570

main83110-89302iRN8#,90..5F..CND198808-199105

W(TRIP METER)

sub83110-35580

main83110-89303iRN85,90..4HC..CND198808-199105

sub83110-35590

main83110-89318iRN8#,90..5F..DLX..USA198808-199105

W(TRIP METER & TACHOMETER)

sub83110-35660

main83110-89319iRN85,90..5F..CND198808-199105

W(TRIP METER & TACHOMETER)

sub83110-35670

main83110-89319iRN121198904-199105

sub83110-35670

main83110-89328iVZN85,9#..R..(DLX,STD)..USA198808-199105

sub83110-35710

main83110-89329iVZN85,9#..R..(DLX,STD)..USA198808-199105

W(TRIP METER)

sub83110-35720

main83110-89330iVZN85,9#..4HC..USA198808-199105

sub83110-35730

main83110-89331iVZN85,90..R..DLX..CND198808-199105

sub83110-35740

main83110-89332iVZN85,90..R..DLX..CND198808-199105

W(TRIP METER)

sub83110-35750

main83110-89333iVZN85,9#..4HC..CND198808-199105

sub83110-35760

main83110-89334iVZN85,90..R..DLX..USA198808-199105

W(TRIP METER & TACHOMETER)

sub83110-35770

main83110-89335iVZN90..SR5..CND198808-199105

W(TRIP METER & TACHOMETER)

sub83110-35780

83132CASE, COMBINATION METER

main83132-04010iRN80..STD..USA199208-199308

W(*66),VDO,YAZAKI

main83132-04010iRN8#,90,VZN90..DLX..USA199308-199501

VDO-YAZAKI

main83132-04010iRN8#,90,VZN90..DLX..USA199308-199501

W(*66),VDO-YAZAKI

main83132-04010iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199308

VDO,YAZAKI

main83132-35020iRN80..STD..USA199208-199501

YAZAKI

main83132-35020iRN80..STD..USA199208-199501

W(*66),YAZAKI

main83132-35020iRN80..STD..USA199208-199501

W(TRIP METER)

main83132-35020iRN8#,90,VZN85,9#..DLX,STD199108-199208

main83132-35040iRN8#,90,VZN85,90..5F..DLX199108-199501

W(TRIP METER & TACHOMETER)

main83132-35040iVZN120,90..SR5199108-199501

main83132-89502iVZN120199408-199511

main83132-89502iRN12#,85,90,VZN120,90..SR5198808-199108

W(TRIP METER & TACHOMETER)

main83132-89504iRN8#,90,VZN85,9#..DLX,STD198808-199108

83132ACASE, METER

main83132-89506iRN8#,90,VZN85,9#..4HC..(DLX,STD)198808-199108

83138GLASS, SPEEDOMETER

main83138-04010iRN8#,90,VZN90..DLX..USA199308-199501

W(*66),VDO-YAZAKI

main83138-04010iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199308

W(*66),VDO,YAZAKI

main83138-04010iRN80..STD..USA199208-199308

VDO,YAZAKI

main83138-04010iRN8#,90,VZN90..DLX..USA199308-199501

VDO-YAZAKI

main83138-89508iRN8#,90,VZN85,90..5F..DLX198808-198908

W(TRIP METER & TACHOMETER)

main83138-89518iRN8#,90..G;RN8#,90,VZN85,90..5F..(DLX,STD)..EFI..CND198808-199501

main83138-89520iRN85,90,VZN9#..4HC..CND199208-199501

YAZAKI

main83138-89520iVZN95;VZN85..USA;VZN85..4HC..CND;RN8#,90,VZN90..4HC..DLX;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA198808-199501

main83138-89520iVZN85,95;RN80..DLX;RN85,90,VZN90..4HC;RN85,90,VZN90..5F..DLX..USA199108-199208

W(*66)

main83138-89520iRN85,90,VZN9#..4HC..CND199208-199501

W(*66),YAZAKI

main83138-89522iRN80..5F..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA198808-199501

W(TRIP METER)

main83138-89524iRN8#,90,VZN85,90..5F..(DLX,STD)..CND198808-199501

W(TRIP METER)

main83138-89532iRN8#,90,VZN85,90..5F..DLX198908-199501

W(TRIP METER & TACHOMETER)

main83138-89532iRN12#,85,90,VZN120,90..SR5198908-199511

83145LENS, METER, NO.1

main83145-04010iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199308

VDO,YAZAKI

main83145-04010iRN80..STD..USA199208-199308

W(*66),VDO,YAZAKI

main83145-04010iRN8#,90,VZN90..DLX..USA199308-199501

VDO-YAZAKI

main83145-04010iRN8#,90,VZN90..DLX..USA199308-199501

W(*66),VDO-YAZAKI

main83145-89504iRN80..STD..USA199208-199501

W(*66),YAZAKI

main83145-89504iRN80..STD..USA199208-199501

W(TRIP METER)

main83145-89504iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199208-199501

YAZAKI

main83145-89504iRN8#,90,VZN85,9#..DLX,STD198808-199208

main83145-89546iRN8#,90,VZN85,90..5F..DLX198808-199501

W(TRIP METER & TACHOMETER)

main83145-89546iRN12#,85,90,VZN120,90..SR5198808-199511

83145ALENS, METER, NO.2

main83145-04020iRN8#,90,VZN90..DLX..USA199308-199501

W(*66),VDO-YAZAKI

main83145-04020iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199308

VDO,YAZAKI

main83145-04020iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199308

W(*66),VDO,YAZAKI

main83145-04020iRN8#,90,VZN90..DLX..USA199308-199501

VDO-YAZAKI

main83145-35340iVZN120199308-199511

W(4-WHEEL *66)

main83145-35540iRN90,VZN90..5F..CND199408-199501

W(TRIP METER & TACHOMETER)

main83145-89502iRN80..STD..USA199208-199501

W(*66),YAZAKI

main83145-89502iRN8#,90,VZN85,9#..DLX,STD198808-199208

main83145-89502iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199501

YAZAKI

main83145-89502iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199501

W(TRIP METER)

main83145-89572iRN8#..W..DLX;RN90,VZN90..5F..DLX..USA198908-199501

W(TRIP METER & TACHOMETER)

main83145-89572iRN12#,85,90,VZN120,90..SR5198908-199511

83145BLENS, METER, NO.3

main83145-04050iRN8#,90,VZN90..DLX..USA199308-199501

VDO-YAZAKI

main83145-04050iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199308

W(*66),VDO,YAZAKI

main83145-04050iRN80..STD..USA199208-199308

VDO,YAZAKI

main83145-04050iRN8#,90,VZN90..DLX..USA199308-199501

W(*66),VDO-YAZAKI

main83145-35520iRN80,90,VZN90..CND199408-199501

main83145-89506iRN8#,90,VZN85,9#..DLX,STD198808-199501

main83145-89548iRN8#,90,VZN85,90..5F..DLX198808-199501

W(TRIP METER & TACHOMETER)

main83145-89548iRN12#,VZN120,90..SR5198808-199511

main83145-89554iRN85,90,VZN120,90..ATM..SR5198808-199008

main83145-89554iVZN120199408-199511

W(4-WHEEL *66)

main83145-89602iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199208-199501

YAZAKI

main83145-89602iRN8#,90,VZN85,9#..DLX,STD199008-199501

main83145-89602iRN80..DLX;RN80..CND;RN85,90,VZN85,9#..DLX,STD199108-199208

W(*66)

main83145-89602iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199501

W(*66),YAZAKI

main83145-89602iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199501

W(TRIP METER)

83145CLENS, METER, NO.4

main83145-04060iRN8#,90,VZN90..4HC..USA199308-199501

VDO-YAZAKI

main83145-04060iRN8#,90,VZN85,9#..4HC..USA199208-199308

VDO,YAZAKI

main83145-89508iRN85,90,VZN9#..4HC..CND198808-199308

main83145-89508iRN8#,90,VZN85,9#..4HC..USA199208-199501

YAZAKI

main83145-89508iRN80,90,VZN90..5F..DLX..USA199208-199501

W(TRIP METER)

main83145-89510iRN8#,90,VZN85,9#..5F..(DLX,STD)..USA198808-199008

W(TRIP METER)

sub83145-89508

main83145-89510iRN8#,90,VZN85,9#..5F..(DLX,STD)..USA199008-199501

sub83145-89508

main83145-89512iRN8#,90..4HC..DLX198808-199501

main83145-89524iVZN85,90..R..CND;VZN90..R..SR5..USA198808-199501

W(TRIP METER & TACHOMETER)

main83145-89524iVZN120199308-199309

W(4-WHEEL *66)

main83145-89524iVZN90..R..CND199008-199108

main83145-89550iRN8#,90,VZN85,90..5F..DLX..USA198808-199501

W(TRIP METER & TACHOMETER)

sub83145-89612

main83145-89550iVZN120,90..SR5199108-199511

sub83145-89612

main83145-89556iRN85,90..4HC..SR5198808-199008

83145ELENS, METER, NO.6

main81860-04010iRN8#,90,VZN90..4HC..USA199308-199501

VDO-YAZAKI

main81860-04010iRN8#,90,VZN85,9#..4HC..USA199208-199308

VDO YAZAKI

main83145-04070iRN8#,90,VZN85,9#..5F..(DLX,STD)..USA199208-199501

VDO-YAZAKI

main83145-35260iRN80..W..DLX;RN85,90,VZN9#..4HC..CND;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199108-199501

main83145-35260iRN8#,90,VZN85,9#..4HC..USA199208-199501

YAZAKI

main83145-89514iRN8#,90,VZN85,9#..4HC..(DLX,STD)198808-199108

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-04010iRN8#,90,VZN90..DLX..USA199308-199501

W(*66),VDO-YAZAKI

main83243-04010iRN80..STD..USA199308-199501

VDO-YAZAKI

main83243-04010iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199308

VDO,YAZAKI

main83243-04010iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199308

W(*66),VDO,YAZAKI

main83243-34020iVZN120199408-199511

main83243-35060iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199208-199501

W(TRIP METER)

main83243-35060iRN8#,90,VZN85,9#..DLX,STD199108-199208

main83243-35060iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199501

YAZAKI

main83243-35060iVZN85,95..USA;RN8#,90,VZN90..DLX..USA199208-199501

W(*66),YAZAKI

main83243-35100iVZN90..SR5199108-199501

main83243-35100iRN8#,90,VZN85,90..5F..DLX199108-199501

W(TRIP METER & TACHOMETER)

main83243-89504iRN12#,85,90,VZN120,90..SR5198808-199108

W(TRIP METER & TACHOMETER)

main83243-89506iRN8#,90..G..USA198808-199008

main83243-89508iRN80..4F..W;RN85,90..CND;RN80..5F..STD;VZN85,9#..DLX,STD;RN8#,90..DLX..EFI..USA198808-199108

main83243-89508iRN8#,90..DLX..CBR..USA198808-199008

W(TRIP METER)

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-04010iRN8#,90,VZN90..4HC..USA199308-199501

VDO-YAZAKI

main83244-04010iRN8#,90,VZN85,9#..4HC..USA199208-199308

VDO,YAZAKI

main83244-04020iRN80..STD..USA199308-199501

VDO-YAZAKI

main83244-04020iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199208-199308

VDO,YAZAKI

main83244-04020iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199208-199308

W(*66),VDO,YAZAKI

main83244-04020iRN8#,90,VZN90..5F..DLX..USA199308-199501

W(*66),VDO-YAZAKI

main83244-34120iVZN120199408-199511

main83244-35040iRN80..STD..USA;RN8#,90,VZN85,9#..4HC199108-199501

main83244-35040iRN80..STD..USA;RN85,90,VZN9#..4HC..CND199208-199501

YAZAKI

main83244-35060iRN8#,90,VZN90..5F..CND199208-199501

W(TRIP METER)

main83244-35060iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199208-199501

YAZAKI

main83244-35060iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199208-199501

W(*66),YAZAKI

main83244-35060iRN80..STD..USA199108-199208

W(*66)

main83244-35140iVZN90..SR5199108-199501

main83244-35140iRN8#,90,VZN85,90..5F..DLX199108-199501

W(TRIP METER & TACHOMETER)

main83244-89504iRN8#,90,VZN85,90..5F..DLX198808-199108

W(TRIP METER & TACHOMETER)

main83244-89506iRN8#,90..G..USA;RN8#,90,VZN85,9#..4HC..(DLX,STD)198808-199108

main83244-89508iRN8#,90..DLX..CBR..USA198808-199008

W(TRIP METER)

main83244-89508iRN80..4F..W;RN80..5F..STD;RN85,90..5F..CND;RN8#,90..W..DLX..USA;VZN85,9#..R..(DLX,STD)198808-199108

83247PLATE, METER CIRCUIT

main83149-35300iVZN120199408-199511

main83247-04010iRN80..STD..USA199208-199308

VDO YAZAKI

main83247-04010iRN8#,90,VZN90..5F..DLX..USA199308-199501

VDO-YAZAKI

main83247-04010iRN80..STD..USA199208-199308

W(*66),VDO YAZAKI

main83247-04010iRN80..STD..USA199308-199501

W(*66),VDO-YAZAKI

main83247-04020iRN8#,90,VZN90..4HC..USA199308-199501

VDO-YAZAKI

main83247-04020iRN8#,90,VZN85,9#..4HC..USA199208-199308

VDO,YAZAKI

main83247-35180iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199208-199501

YAZAKI

main83247-35180iRN8#,90,VZN85,9#..5F..(DLX,STD)199108-199208

main83247-35180iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199208-199501

W(*66),YAZAKI

main83247-35180iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199208-199501

W(TRIP METER)

main83247-35200iRN85,90,VZN9#..4HC..CND199208-199501

YAZAKI

main83247-35200iRN80..W..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA199108-199501

main83247-35500iVZN90..R..CND;RN8#,90..W..DLX199108-199501

W(TRIP METER & TACHOMETER),NO.1

main83247-35500iVZN120199308-199309

W(4-WHEEL *66)

main83247-35540iVZN120,90..SR5199108-199501

W(TRIP METER & TACHOMETER),NO.1

main83247-35540iVZN90..SR5199408-199501

main83247-35560iVZN120199309-199408

W(4-WHEEL *66)

main83247-89512iVZN90..4FC;RN12#,85,90,VZN120..(4FC,5F)..SR5198808-199108

W(TRIP METER & TACHOMETER),NO.1

main83247-89514iRN85,90..4HC..SR5198808-199008

W(TRIP METER & TACHOMETER),NO.1,NO.1

main83247-89518iVZN85,90..R..DLX198808-199108

W(TRIP METER & TACHOMETER),NO.1

main83247-89532iRN85,90..4HC..SR5198808-199008

W(TRIP METER & TACHOMETER),NO.2

main83247-89534iRN8#,90,VZN85,9#..MTM..(DLX,STD)198808-199008

main83247-89538iRN8#,90,VZN85,9#..4HC..(DLX,STD)..USA198808-199008

main83247-89560iRN85,90,VZN85,9#..4HC..CND198908-199008

main83247-89602iRN8#,90,VZN85,9#..5F..(DLX,STD)199008-199108

main83247-89604iRN8#,90,VZN85,9#..4HC199008-199108

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120100CASE, COMBINATION METER MIRROR, NO.1

main83161-20100

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

9016750028

main90167-50028

18 parts on this diagram · 5 diagrams in section
