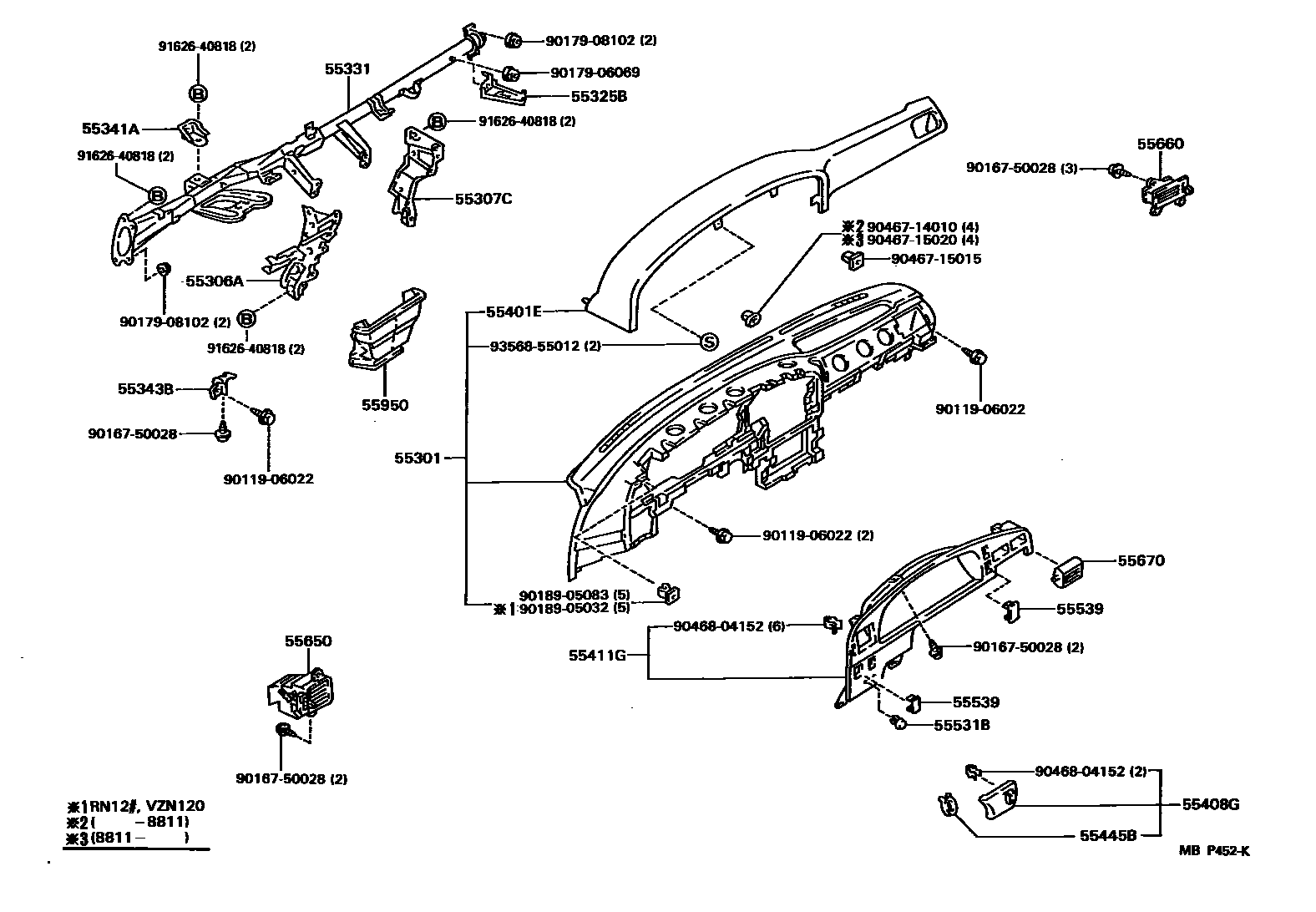

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0004 1 0007 1 0009 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-35010-B0iRN8#,90,VZN90..DLX,STD199308-199501

GRAY,TRIM1#

main55301-35010-J0iRN8#,90,VZN90..DLX,STD199308-199501

BLUE,TRIM8#

main55301-89120-02iRN85,90..DLX;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,VZN120,85,9#199001-199108

RED,TRIM3#

main55301-89120-03iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198808-199108

GRAY,TRIM1#

main55301-89120-04iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198808-199108

BLUE,TRIM8#

main55301-89120-06iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198808-199108

BROWN,TRIM4#

main55301-89120-B0iVZN120,90..SR5199308-199511

MEDIUM GRAY,TRIM1#

main55301-89120-E1iVZN120199108-199308

TAN,TRIM4#

main55301-89120-E2iVZN120199308-199511

OAK,TRIM4#

main55301-89120-J0iVZN120,90..SR5199308-199511

MEDIUM BLUE,TRIM8#

main55301-89125-03iRN80..STD..USA198808-199108

GRAY,TRIM1#

main55301-89125-04iRN80..STD..USA198808-199108

BLUE,TRIM8#

main55301-89125-06iRN80..STD..USA198808-199108

BROWN,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-35010iRN8#,90,VZN90..DLX,STD199308-199501

main55306-89105iRN90,VZN120,90199108-199308

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-35010iRN8#,90,VZN90..DLX,STD199308-199501

main55307-89107iRN90,VZN120,90199108-199308

55325BBRACKET, INSTRUMENT PANEL, NO.5

main55325-35020iRN8#,VZN85,95199108-199308

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-35020iRN8#,90,VZN120,85,9#199108-199408

main55330-35030iVZN120199408-199511

main55330-89117iRN12#,8#,90,VZN120,85,9#..4FC,4HC,5F198808-198906

main55330-89119iRN80..STD..USA198808-198906

main55330-89120iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198906-199108

main55330-89121iRN80..STD..USA198906-199108

55341ABRACE, INSTRUMENT PANEL TO COWL, UPPER

main55341-04010iRN8#,90,VZN120,85,9#199208-199511

main55341-89103iRN12#,8#,90,VZN120,85,9#198808-199511

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-89101iRN12#,8#,90,VZN120,85,9#198808-199511

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-89122-02iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198808-199108

RED,TRIM3#

main55401-89122-03iRN8#,90,VZN85,9#..4FC,4HC,5F198808-198901

GRAY,TRIM1#

main55401-89122-04iRN8#,90,VZN85,9#..4FC,4HC,5F198808-198901

BLUE,TRIM8#

main55401-89122-06iRN8#,90,VZN85,9#..4FC,4HC,5F198808-198901

BROWN,TRIM4#

main55401-89122-B0iRN90,VZN120,90199108-199308

MEDIUM GRAY,TRIM1#

main55401-89122-E0iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198901-199108

BROWN,TRIM4#

main55401-89122-E1iVZN120199108-199308

TAN,TRIM4#

main55401-89122-E2iVZN120199308-199511

OAK,TRIM4#

main55401-89122-J0iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198901-199108

MEDIUM BLUE,TRIM8#

55408GBEZEL SUB-ASSY, STARTER SWITCH

main55408-89101iRN121,8#,90,VZN85,9#..MTM198808-199501

main55408-89102iRN8#,90,VZN85,9#..4HC198808-199501

main55408-89103iRN12#,VZN120,90..4FC198808-199511

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-35040iRN8#,VZN85,95..5F199108-199308

main55411-35050iRN8#,90,VZN90..4HC199308-199501

main55411-89109iRN90,VZN120,90..4FC,5F199108-199308

main55411-89111iRN80..STD..USA198808-199108

main55411-89112iRN90,VZN90..4HC199108-199308

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-89103iRN121,8#,90,VZN85,9#..MTM198808-199501

main55445-89104iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

55531BCOVER, CHOKE KNOB HOLE

main55531-89105-02iRN80..5F..CBR;RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#198808-199108

RED,TRIM3#

main55531-89105-03iRN8#,90,VZN85,9#198808-198901

GRAY,TRIM1#

main55531-89105-04iRN8#,90,VZN85,9#198808-198901

BLUE,TRIM8#

main55531-89105-06iRN8#,90,VZN85,9#198808-198901

BROWN,TRIM4#

main55531-89105-B0iRN12#,8#,90,VZN120,85,9#198901-199108

MEDIUM GRAY,TRIM1#

main55531-89105-E0iRN12#,8#,90,VZN120,85,9#198901-199108

BROWN,TRIM4#

main55531-89105-J0iRN12#,8#,90,VZN120,85,9#198901-199108

MEDIUM BLUE,TRIM8#

55539COVER, SPARE SWITCH HOLE

main55539-89105iRN12#,8#,90,VZN120,85,9#198808-199511

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-89112iRN12#,8#,90,VZN120,85,9#198808-199511

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-89107-02iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198808-199108

RED,TRIM3#

main55660-89107-03iRN12#,8#,90,VZN120,85,9#198808-199109

GRAY,TRIM1#

main55660-89107-04iRN12#,8#,90,VZN120,85,9#198808-199109

BLUE,TRIM8#

main55660-89107-06iRN12#,8#,90,VZN120,85,9#198808-199108

BROWN,TRIM4#

main55660-89107-B0iRN8#,90,VZN120,85,9#199109-199511

MEDIUM GRAY,TRIM1#

main55660-89107-E1iVZN120199108-199308

TAN,TRIM4#

main55660-89107-E2iVZN120199308-199511

OAK,TRIM4#

main55660-89107-J0iRN8#,90,VZN120,85,9#199109-199511

MEDIUM BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-89115×2iRN12#,8#,90,VZN120,85,9#198808-199511

55950NOZZLE ASSY, DEFROSTER

main55950-89108iRN12#,8#,90,VZN120,85,9#198808-199511

9011906022

main90119-06022

9016750028

main90167-50028

9017906069

main90179-06069

9017908102

main90179-08102

9018905032

main90189-05032

9018905083

main90189-05083

9046714010

main90467-14010

9046715015

main90467-15015

9046715020

main90467-15020

9046804152

main90468-04152

9162640818

main91626-40818

9356855012

main93568-55012

29 parts on this diagram · 4 diagrams in section
