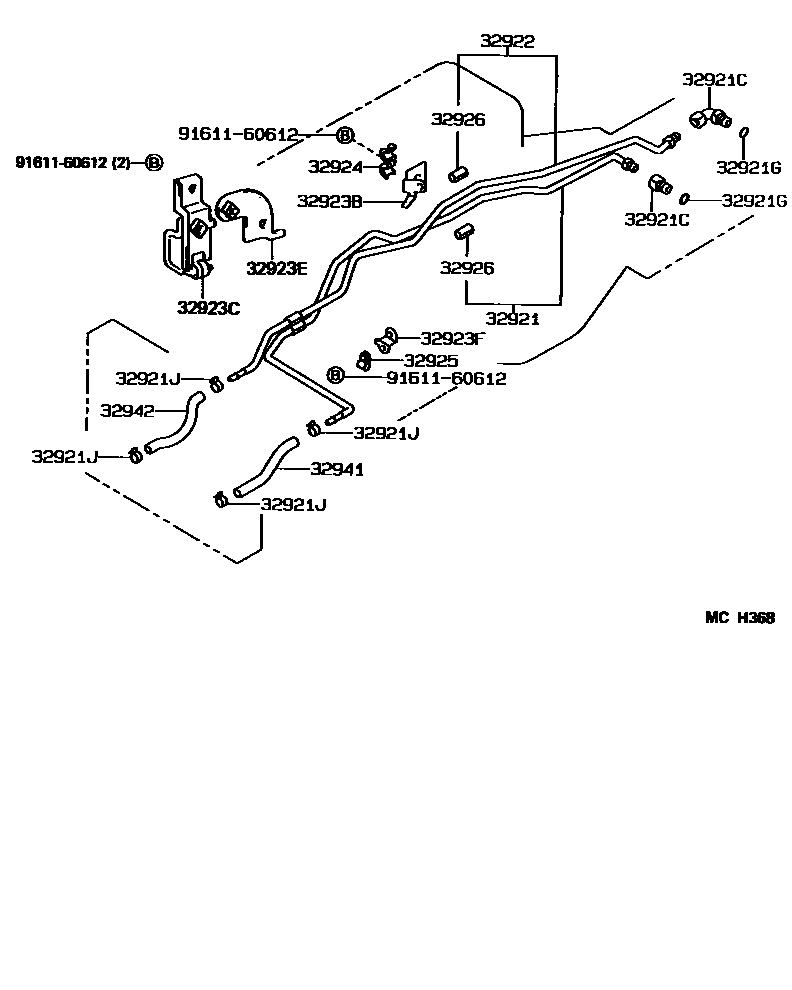

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-35120iRN8#,90..4HC198808-199501

main32921-35180iRN12#..4FC198904-199108

main32921-35200iVZN120,85,9#..ATM198808-198907

main32921-35201iVZN120,85,9#..ATM198907-198908

main32921-35202iVZN120,85,9#..ATM198908-199511

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iRN12#,8#,90..ATM198808-199501

INLET

main90404-16029iVZN120,85,9#..ATM199007-199511

INLET

main90407-16008iVZN85,9#..ATM198808-198811

main90407-16009iVZN120,85,90..ATM..CBU199007-199008

main90407-16010iRN12#,8#,90..ATM198808-199501

OUTLET

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iRN12#,8#,90..ATM198808-199501

main90301-11006×2iVZN120,85,9#..ATM199108-199408

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039×2iRN12#,8#,90..ATM198808-199501

main90467-16013×3iVZN85,95..4HC..IV6198808-199308

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-35140iRN8#,90..4HC198808-199501

main32922-35200iVZN85,9#..ATM198808-198811

main32922-35201iVZN120,85,9#..ATM198811-198907

main32922-35202iVZN120,85,9#..ATM198907-198908

main32922-35203iVZN120,85,9#..ATM198908-199108

main32922-35240iVZN120,85,90..ATM..CBU199108-199511

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-30110iVZN120,85,9#..ATM198808-199511

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-35010iRN12#,8#,90..ATM198808-199501

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32909-35030iRN12#,8#,90..ATM198808-199501

main32909-35040iRN120,8#,90..ATM..USA198808-199108

W(AIR CONDITIONER)

32923ECLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.6

main32928-35031iRN12#,8#,90..ATM198808-199501

32923FCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.7

main32929-20070iRN12#,8#,90..ATM198808-199501

32924CLAMP, OIL COOLER TUBE, NO.2

main32909-35050iVZN120,85,9#..ATM..USA; VZN85,9#..4HC..CND198808-198908

W(AIR CONDITIONER)

main32909-35051iVZN120,85,9#..ATM..USA; VZN85,9#..4HC..CND198908-199008

W(AIR CONDITIONER)

main32909-35060iVZN120,85,9#..ATM198808-198908

main32909-35061iVZN120,85,9#..ATM198908-199511

main90462-12044iRN12#,8#,90..ATM198808-199501

32925CLAMP, OIL COOLER TUBE, NO.3

main90461-06188iRN12#,8#,90..ATM198808-199501

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×4iRN12#,8#,90..ATM198808-199501

L=35,ID=10

main32926-36050×2iVZN85,95..4HC199209-199308

L=45,ID=10

32941HOSE, OIL COOLER INLET, NO.1

main32941-35040iVZN120198904-198907

main32941-35041iVZN120198907-199108

main32941-35100iRN12#..4FC198904-198907

main32941-35101iRN12#..4FC198907-199108

main32941-35161iVZN85,9#..ATM198902-199501

main32941-60070iVZN120199108-199511

main32942-35010iVZN85,9#..ATM198808-198902

TOYODA GOSEI

main32942-35040iVZN85,90..ATM..(CBU,IV3)198808-198902

TOKAIGOMU

main90445-15022iRN8#,90..4HC198808-198907

main90445-15044iRN8#,90..JPP..4HC198907-199501

32942HOSE, OIL COOLER OUTLET, NO.1

main32941-28190iVZN120,85,90..ATM..CBU199108-199511

main32942-35010iVZN85,90..ATM..(CBU,IV3)198808-198902

TOYODA GOSEI

main32942-35011iVZN120,85,90..ATM..(CBU,IV3)198902-199108

main32942-35040iVZN85,90..ATM..(CBU,IV3)198808-198902

TOKAIGOMU

main90445-15014iRN12#,8#,90..ATM198808-198907

main90445-15045iRN12#,8#,90..ATM198907-199501

9161160612

main91611-60612

16 parts on this diagram · 3 diagrams in section
