Toyota 4-RUNNER TRUCK (JPP)672 — IGNITION COIL & SPARK PLUG / GLOW PLUG

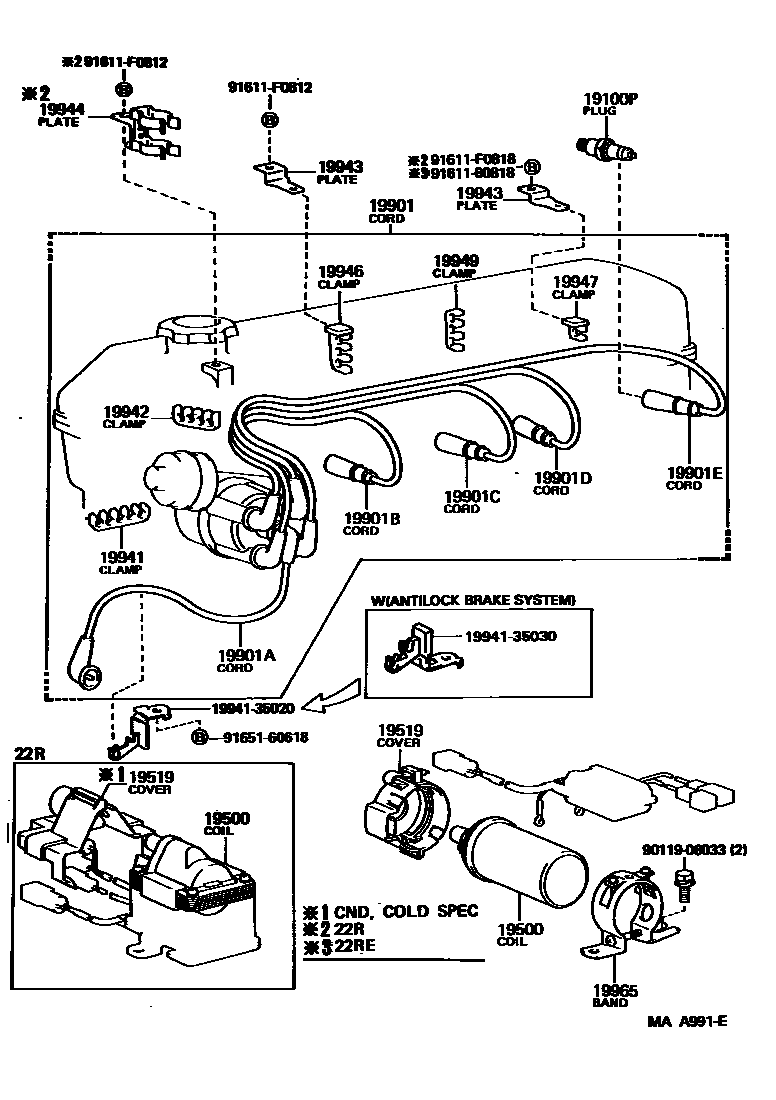

Parts diagram

19100PPLUG, SPARK

19500COIL ASSY, IGNITION

19519COVER, IGNITION COIL

19901ACORD, COIL RESISTIVE

19901BCORD, SPARK PLUG RESISTIVE, NO.1

19901CCORD, SPARK PLUG RESISTIVE, NO.2

19901DCORD, SPARK PLUG RESISTIVE, NO.3

19901ECORD, SPARK PLUG RESISTIVE, NO.4

19941CLAMP, RESISTIVE CORD, NO.1

19942CLAMP, RESISTIVE CORD, NO.2

19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1

19944PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2

19946CLAMP, RESISTIVE CORD, NO.3

19947CLAMP, RESISTIVE CORD, NO.4

19949CLAMP, RESISTIVE CORD, NO.5

19965BAND, IGNITION COIL, NO.1

1994135020CLAMP, RESISTIVE CORD, NO.1

1994135030CLAMP, RESISTIVE CORD, NO.1

9011906033

9161160818

91611F0812

91611F0818

9165160618

24 parts on this diagram · 4 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota 4-RUNNER TRUCK (JPP)672

This section contains 48 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota 4-RUNNER TRUCK (JPP)672. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, COVER, IGNITION COIL, HOLDER, RESISTIVE CORD, NO.1, HOLDER, RESISTIVE CODE, NO.3.
