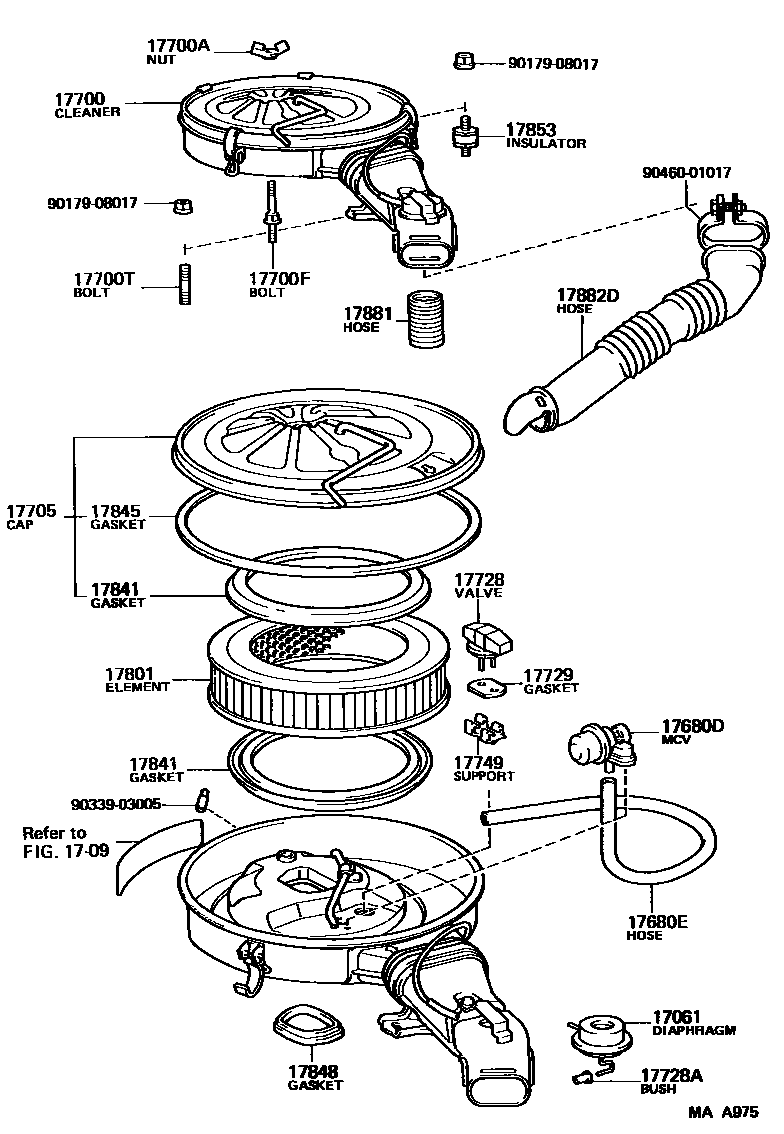

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17061DIAPHRAGM SUB-ASSY

main17061-37010i22R..RN8#,90198808-199008

1709

17680DVALVE ASSY, MIXTURE CONTROL

main17680-35010i22R..RN8#,90198808-199008

17680EHOSE, AIR(FOR MIXTURE CONTROL VALVE)

main17346-35010i22R..RN8#,90198808-199008

17700CLEANER ASSY, AIR

main17700-35210i22R..RN80..W198808-198908

main17700-35290i22RE..RN12#,8#,90198808-199501

main17700-35320i22R..RN8#,90..G198808-198908

NO.1

main17700-35360i22RE..RN12#,8#,90198808-199501

W(AIR BOX)

main17700-35370i22R..RN8#,90..G198808-199008

NO.2

main17700-35420i22RE..RN12#198905-198906

sub17700-35290

sub17791-35060

main17700-35430i22RE..RN12#198905-198906

W(AIR BOX)

sub17700-35360

sub17791-35060

main17700-35440i22R..RN8#,90198908-199008

NO.1

main17700-65020i3VZE..VZN85,9#198808-198908

sub17700-65021

main17700-65021i3VZE..VZN120,85,9#198904-199511

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i22R..RN80..W198808-198908

main90175-06013i22R..RN8#,90..G198808-199008

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06020i22R..RN8#,90198808-199008

17700TBOLT, STUD(FOR AIR CLEANER)

main90116-08033i22R..RN8#,90198808-199008

17705CAP SUB-ASSY, AIR CLEANER

main17705-35060i22R..RN8#,90198808-199008

main17705-35170i22RE..RN12#,8#,90198808-199501

main17705-65010i3VZE..VZN120,85,9#198808-199511

17728VALVE, THERMOSTATIC

main17728-24011i22R..RN8#,90198808-199008

17728ABUSH

main90386-03001i22R..RN8#,90198808-199008

17729GASKET, THERMOSTAT VALVE

main17729-34010i22R..RN8#,90198808-199008

17749SUPPORT, THERMOSTAT VALVE

main17749-34010i22R..RN8#,90198808-199008

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-35020i22RE..RN12#,8#,90198808-199501

main17801-41090i22R..RN8#,90198808-199008

main17801-70020i3VZE..VZN120,85,9#198808-199511

17841GASKET, FILTER ELEMENT

main17841-41050i22R..RN8#,90198808-199008

17845GASKET, AIR CLEANER CAP

main17845-61011i22R..RN8#,90198808-199008

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-35010i22R..RN8#,90198808-199008

17853INSULATOR, AIR CLEANER BRACKET

main17853-35010i22R..RN8#,90198810-199008

main17853-38010i22R..RN8#,90198808-198810

17881HOSE, AIR CLEANER, NO.1

main17881-35060i22R..RN8#,90198808-199008

main17881-35080i22RE..RN12#,8#,90198808-199501

main17881-65011i3VZE..VZN120,85,9#198808-199108

main17881-65020i3VZE..VZN120,85,9#199108-199511

17882HOSE, AIR CLEANER, NO.2

main17882-65010i3VZE..VZN120,85,9#198808-199511

17882DHOSE, COOL AIR INTAKE

main17880-89103i22R..RN8#,90..5F198808-199008

main17882-89107i22RE..RN12#,8#,90198808-199501

main17882-89114i3VZE..VZN120,85,9#198808-199511

main17882-89116i22RE..RN12#,8#,90198808-199501

W(AIR BOX)

main17882-89119i22R..RN80..STD..USA198808-199008

9017908017

main90179-08017

9033903005

main90339-03005

9046001017

main90460-01017

24 parts on this diagram · 4 diagrams in section
