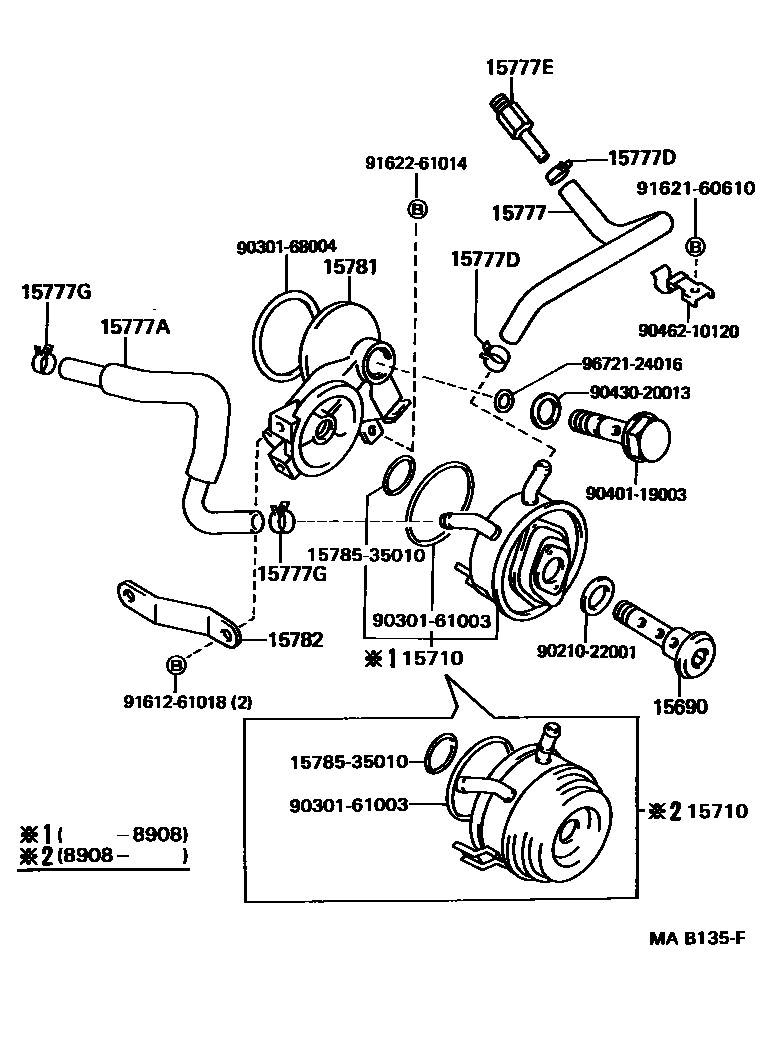

ENGINE OIL COOLER

0001 1 0002 1

15690VALVE ASSY, OIL COOLER RELIEF

main15690-65010i3VZE..VZN85,90..HLF..ATM..(CBU,IV3); 3VZE..VZN85..10T;3VZE..VZN85,95..IV6198808-198908

TOWING PACKAGE

main15690-65020i3VZE..VZN85,90..HLF..ATM..CBU; 3VZE..VZN85..10T;3VZE..VZN120,85,95..SR5,STD198908-199002

TOWING PACKAGE

15710COOLER ASSY, OIL

main15710-65020i3VZE..VZN85,90..HLF..ATM..(CBU,IV3); 3VZE..VZN85..10T;3VZE..VZN85,95..IV6198808-198908

TOWING PACKAGE

main15710-65030i3VZE..VZN120198908-199108

main15710-65040i3VZE..VZN85,9#199002-199108

main15710-65050i3VZE..VZN120199108-199501

main15710-65051i3VZE..VZN120199501-199511

main15710-65060i3VZE..VZN85,9#199108-199308

15777HOSE, OIL COOLER

main15777-65010i3VZE..VZN120198908-199511

main15777-65020i3VZE..VZN85,90..HLF..ATM..(CBU,IV3); 3VZE..VZN85..10T;3VZE..VZN85,95..IV6198808-199002

TOWING PACKAGE

15777AHOSE, OIL COOLER

main15778-65010i3VZE..VZN120198908-199511

main15778-65020i3VZE..VZN85,90..HLF..ATM..(CBU,IV3); 3VZE..VZN85..10T;3VZE..VZN85,95..IV6198808-199002

TOWING PACKAGE

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main90467-17005×2i3VZE..VZN85..10T;3VZE..VZN85,95..IV6198808-198908

15777EUNION

main90404-53066i3VZE..VZN85..10T;3VZE..VZN85,95..IV6198808-198908

15777GCLAMP OR CRIP, HOSE

main90467-17005×2i3VZE..VZN85..10T;3VZE..VZN85,95..IV6198808-198908

15781BRACKET, OIL COOLER, NO.1

main15781-65010i3VZE..VZN85,90..HLF..ATM..(CBU,IV3); 3VZE..VZN85..10T;3VZE..VZN85,95..IV6198808-199002

TOWING PACKAGE

main15781-65011i3VZE..VZN85,9#199108-199308

15782BRACKET, OIL COOLER, NO.2

main15782-65010i3VZE..VZN85,90..HLF..ATM..(CBU,IV3); 3VZE..VZN85..10T;3VZE..VZN85,95..IV6198808-199002

TOWING PACKAGE

main15782-65011i3VZE..VZN85,9#199108-199308

1578535010GASKET, OIL COOLER

main15785-35010

9021022001

main90210-22001

9030161003

main90301-61003

9030168004

main90301-68004

9040119003

main90401-19003

9043020013

main90430-20013

9046210120

main90462-10120

9161261018

main91612-61018

9162160610

main91621-60610

9162261014

main91622-61014

9672124016

main96721-24016

20 parts on this diagram · 2 diagrams in section
