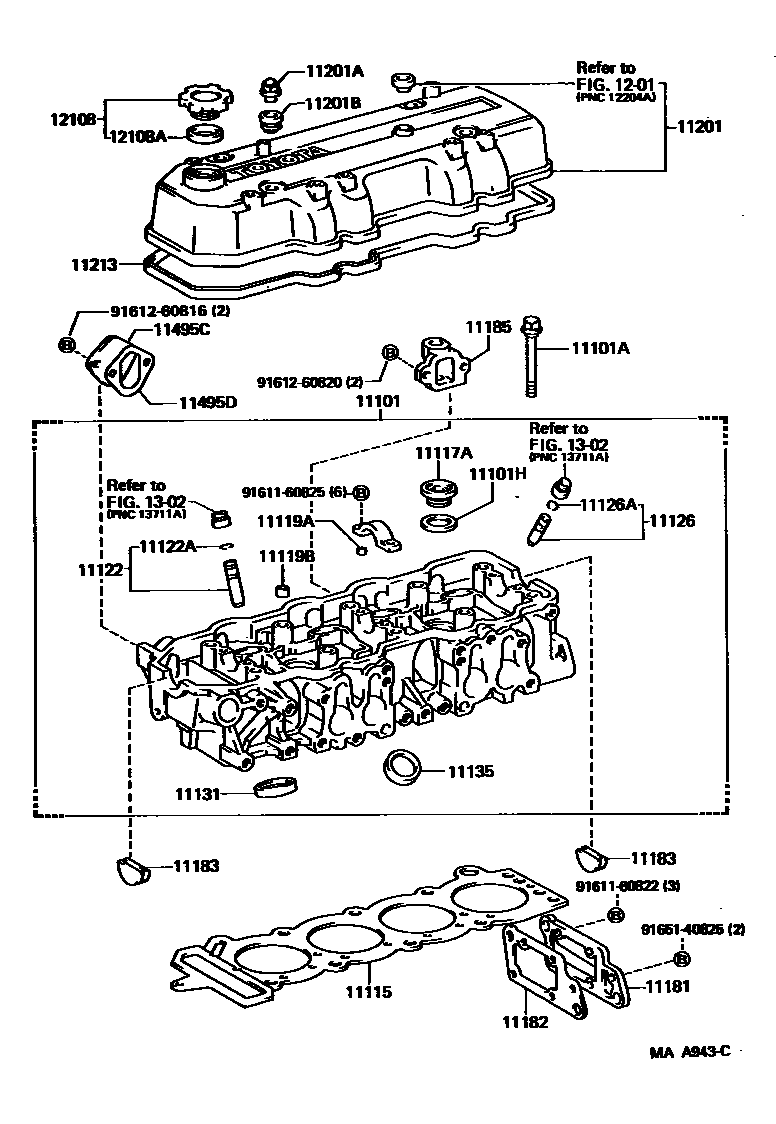

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-35050i22R..RN8#,90198808-199008

main11101-35060i22RE..RN12#,8#,90198808-199501

sub11101-35080

main11101-65010i3VZE..VZN120,85,9#198808-199205

RH

sub11101-65011

main11101-65011i3VZE..VZN120,85,9#199205-199511

RH

main11102-65010i3VZE..VZN120,85,9#198808-199108

LH

sub11102-65021

main11102-65020i3VZE..VZN85,9#199108-199205

LH

sub11102-65021

main11102-65021i3VZE..VZN120,85,9#199205-199511

LH

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12092i22R#..RN12#,8#,90198808-199501

main90910-02075i3VZE..VZN120,85,9#198808-199511

11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-33133i22R#..RN12#,8#,90198808-199501

11115GASKET, CYLINDER HEAD

main11115-35060i22R#..RN12#,8#,90198808-199501

main11115-65020i3VZE..VZN120,85,9#198808-199001

sub11115-65030

sub90119-10653

main11115-65030i3VZE..VZN120,85,9#199001-199403

sub11115-65031

main11115-65031i3VZE..VZN120,90199403-199511

sub11115-65032

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-32070i22R#..RN12#,8#,90198808-199501

11119PLUG, CYLINDER HEAD HARNESS HOLE

main11119-65010i3VZE..VZN120,85,9#198808-199511

11119APIN, STRAIGHT, NO.1

main90253-11021i22R#..RN12#,8#,90198808-199501

L=8,OD=11

11119BPIN, STRAIGHT, NO.2

main90253-16020i22R#..RN12#,8#,90198808-199501

L=16,OD=15.5

11122BUSH, INTAKE VALVE GUIDE

main11122-35020i22R#..RN12#,8#,90198808-199501

STD

main11122-65020i3VZE..VZN120,85,9#198808-199511

STD

main11123-35020i22R#..RN12#,8#,90198808-199501

O/S 0.05

main11123-65020i3VZE..VZN120,85,9#198808-199511

O/S 0.05

11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)

main90520-12049i22R#..RN12#,8#,90198808-199511

11126BUSH, EXHAUST VALVE GUIDE

main11122-38021i22R#..RN12#,8#,90198808-199501

STD

main11122-65020i3VZE..VZN120,85,9#198808-199511

STD

main11123-38021i22R#..RN12#,8#,90198808-199501

O/S 0.05

main11123-65020i3VZE..VZN120,85,9#198808-199511

O/S 0.05

11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)

main90520-12049i22R#..RN12#,8#,90198808-199511

11131SEAT, INTAKE VALVE

main11131-35010i22R#..RN8#,90198808-198904

STD

sub11131-35011

main11131-35011i22R#..RN12#,8#,90198904-199501

STD

main11131-65010i3VZE..VZN120,85,9#198808-199511

STD

main11132-35010i22R#..RN8#,90198808-198904

O/S 0.03

sub11132-35011

main11132-35011i22R#..RN12#,8#,90198904-199501

O/S 0.03

main11132-65010i3VZE..VZN120,85,9#198808-199511

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-35010i22R#..RN12#,8#,90198808-199501

STD

sub11135-35020

main11135-65010i3VZE..VZN120,85,9#198808-199211

STD

sub11135-65011

main11135-65011i3VZE..VZN120,85,9#199211-199511

STD

main11136-35010i22R#..RN12#,8#,90198808-199501

O/S 0.03

sub11136-35020

main11136-65010i3VZE..VZN120,85,9#198808-199211

O/S 0.03

sub11136-65011

main11136-65011i3VZE..VZN120,85,9#199211-199511

O/S 0.03

11181PLATE, CYLINDER HEAD, REAR

main11181-35050i22R#..RN12#,8#,90198808-199501

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-35050i22R#..RN12#,8#,90198808-199501

11183PLUG, SEMICIRCULAR

main11183-38010i22R#..RN12#,8#,90198808-199501

11185COVER, CYLINDER HEAD SIDE

main11184-35010i22R..RN8#,90198808-199008

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-35031i22RE..RN12#,8#,90198808-199208

sub11201-35032

main11201-35032i22RE..RN8#,90199208-199501

main11201-65010i3VZE..VZN120,85,9#198808-199004

NO.1

sub11201-65020

main11201-65020i3VZE..VZN120,85,9#199004-199108

NO.1

sub11201-65030

main11201-65030i3VZE..VZN120,85,9#199108-199511

NO.1

main11202-65030i3VZE..VZN120,85,9#198808-199004

NO.2

sub11202-65040

main11202-65040i3VZE..VZN120,85,9#199004-199108

NO.2

sub11202-65050

main11202-65050i3VZE..VZN120,85,9#199108-199511

NO.2

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08041i22R#..RN12#,8#,90198808-199501

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-08026i22R#..RN12#,8#,90198808-199309

main90210-08040i22RE..RN8#,90199309-199501

11213GASKET, CYLINDER HEAD COVER

main11213-35010i22R#..RN12#,8#,90198808-199501

main11213-65010i3VZE..VZN120,85,9#198808-199511

11495CPLUG, PLATE(FOR CYLINDER HEAD)

main11495-40010i22RE..RN12#,8#,90198808-199501

11495DGASKET(FOR CYLINDER HEAD)

main11496-35010i22RE..RN12#,8#,90198808-199501

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i22RE..RN12#,8#,90198808-199208

sub12180-55010

main12180-15010i22RE..RN8#,90199208-199309

sub12180-15011

main12180-15011i22RE..RN8#,90199309-199501

sub12180-65021

main12180-62010i22R..RN8#,90199003-199008

sub12180-62011

main12180-65010i3VZE..VZN120,85,9#198808-199107

sub12180-65011

main12180-65011i3VZE..VZN120,85,9#199107-199208

main12180-65020i3VZE..VZN120,85,9#199208-199309

sub12180-65021

main12180-65021i3VZE..VZN120,90199309-199511

12108AGASKET(FOR OIL FILLER CAP)

main90430-37004i3VZE..VZN120,85,9#198808-199511

main90430-37140i22R#..RN12#,8#,90198808-199501

1302

9161160822

main91611-60822

9161160825

main91611-60825

9161260816

main91612-60816

9161260820

main91612-60820

9165140825

main91651-40825
