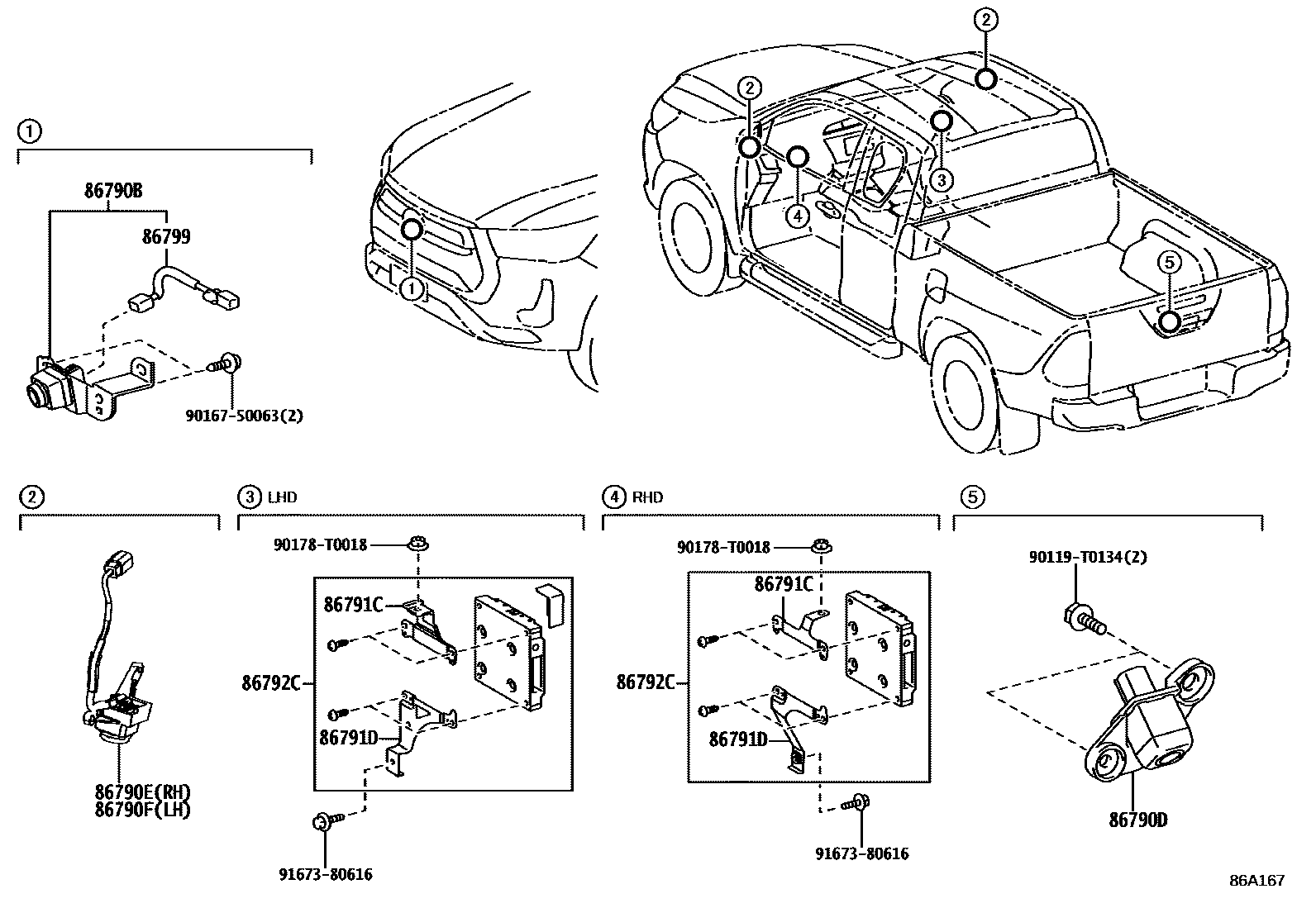

CAMERA & REAR MONITOR DISPLAY
86790BCAMERA ASSY, TELEVISION, FR
BACK MONITOR-WITH(*PVM)
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&BACK MONITOR-WITH(*PVM); MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)
86790DCAMERA ASSY, TELEVISION, RR
main86790-0K051iGUN125,135..(L,S)..TH; GUN125,135..S..TH; GUN136..ARL;GUN125,126,135..THP..H202308-202407
BACK MONITOR-WITH; BACK MONITOR-WITH(*PVM)
86790ECAMERA ASSY, TELEVISION, SIDE RH
BACK MONITOR-WITH(*PVM)
86790FCAMERA ASSY, TELEVISION, SIDE LH
BACK MONITOR-WITH(*PVM)
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
main86791-71010iGUN125,135..S..TH; GUN126,135..6FC..H..TH; GUN126,135..H..TH; GUN126..6F..H..TH202308-202407
AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM); AUDIO-10.25INCH *DA&BACK MONITOR-WITH(*PVM); BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&AUDIO-10.25INCH *DA&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&BACK MONITOR-WITH(*PVM); MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
main86791-71020iGUN125,135..S..TH; GUN126,135..6FC..H..TH; GUN126,135..H..TH; GUN126..6F..H..TH202308-202407
AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM); AUDIO-10.25INCH *DA&BACK MONITOR-WITH(*PVM); BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&AUDIO-10.25INCH *DA&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&BACK MONITOR-WITH(*PVM); MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
86792CCOMPUTER, PARKING ASSIST
AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM); AUDIO-10.25INCH *DA&BACK MONITOR-WITH(*PVM); BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&AUDIO-10.25INCH *DA&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&BACK MONITOR-WITH(*PVM); MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)
86799WIRE, TELEVISION CAMERA
main86799-0K040iGUN125..H;GUN125,126,135..(H,S)..TH; GUN126,135..6FC..H..TH; GUN135..S..TH;GUN125,126..XTR..6F..TH202308-202407
BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&BACK MONITOR-WITH(*PVM); MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)
90119T0134
main90119-T0134
9016750063
main90167-50063
90178T0018
main90178-T0018
9167380616
main91673-80616
12 parts on this diagram · 1 diagram in section
