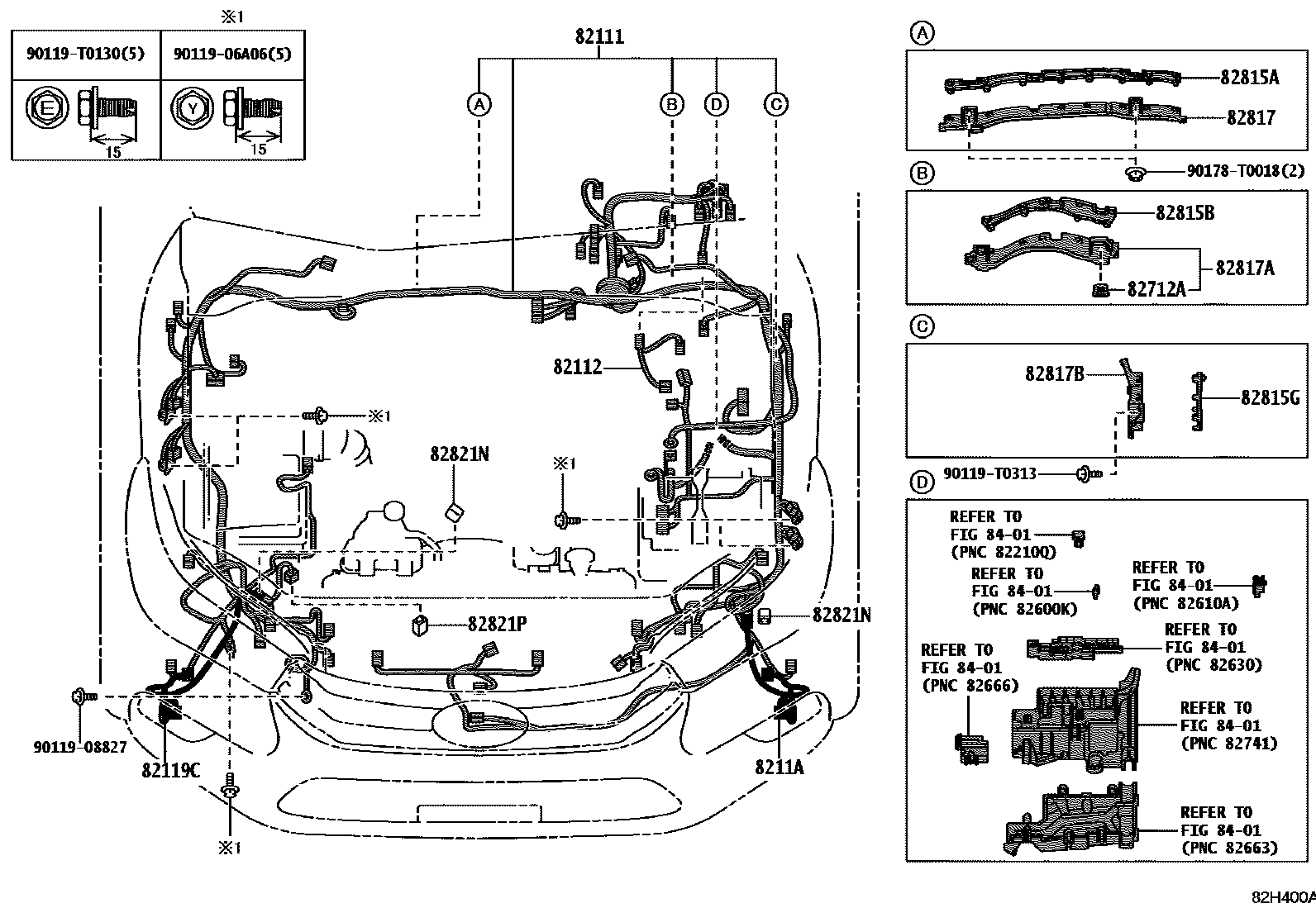

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
ASEAN GENERAL SPEC&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT; CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
main8211F-KKV80iGUN126,136..XTR..S; GUN126..6FC..H;GUN125,135..(H,S)..TH; GUN135..L..TH202308-202312
HEADLAMP-LED(MLM); VSC-WITH(*HSAC & *TSC)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
VSC-WITH(*HSAC & *TSC)
ASEAN GENERAL SPEC&VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT; CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT; VSC-WITHOUT
main8211G-KK620iGUN112,120,121,122..L..TH;GUN125,126..6F..L..(IDN,TH); GUN125..RHD..GEN;GUN112,122..RHD..(GEN,IDN)202308-202407
VSC-WITHOUT
main8211G-KK630iGUN126..6F..L..TH;GUN112,120,121,122..L..TH; GUN126..6FC..L;GUN125..RHD..GEN;GUN112,122..RHD..(GEN,IDN)202308-202407
VSC-WITH(*HSAC & *TSC)
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
FRONT BUMPER-MATERIAL COLOR
HEADLAMP-LED(MLM)
CHILE SPEC&HEADLAMP LEVELING DEVICE-WITHOUT
CHILE SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT; HEADLAMP-2-BULB HALOGEN(VALEO)
CHILE SPEC&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH; CHILE SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIMERUNNING LIGHT SYSTEM-WITH
CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
BACK MONITOR-WITH(*PVM)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO); EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
ASEAN GENERAL SPEC&VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT; CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT; DAYTIME RUNNING LIGHT SYSTEM-WITH
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main8211F-KKT70iGUN120,122..TH..IV3; GUN120,122..XTR..L; GUN126..6F..L..TH;GUN112,120,121,122..L..TH..CBU202308-202407
COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED & WITH(WIDE FENDER); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM); POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)
VSC-WITH(*HSAC & *TSC)&HEADLAMP-LED
TOYOTA STOP & START SYSTEM-WITH
main8211F-KKW00iGUN120,122..TH..IV3; GUN120,122..XTR..L; GUN126..6F..L..TH;GUN112,120,121,122..SCB..TH..CBU; GUN126..6FC..L202308-202312
COLD CHAIN PACKAGE&VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM); POWER SUPPLY PACKAGE&VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM); VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM); VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
FRONT BUMPER-MATERIAL COLOR
VSC-WITH(*HSAC & *TSC); VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-MATERIAL COLOR
VSC-WITH(*HSAC & *TSC)
BACK MONITOR-WITH(*PVM)
HEADLAMP-LED(MLM)
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH; IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
VSC-WITHOUT
VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
VSC-WITH(*HSAC & *TSC)
FRONT BUMPER-PAINTED(MLM)
VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&HEADLAMP-2-BULB HALOGEN(VALEO); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&HEADLAMP-2-BULB HALOGEN(VALEO); EXHAUST EMISSION CONTROL-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT
ALGERIA SPEC (EURO 3 REGULATION)&VSC-WITHOUT&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
ASEAN GENERAL SPEC&HEADLAMP LEVELING DEVICE-WITHOUT; CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP LEVELING DEVICE-WITHOUT; DAYTIME RUNNING LIGHT SYSTEM-WITH
HEADLAMP-2-BULB HALOGEN(VALEO)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&VSC-WITH(*HSAC & *TSC)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&FRONT BUMPER-PAINTED(MLM)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM)
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)&VSC-WITH(*HSAC & *TSC)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP LEVELING DEVICE-WITH(MANUAL); HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
DAYTIME RUNNING LIGHT SYSTEM-WITH; ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)&VSC-WITH(*HSAC & *TSC)&DAYTIME RUNNING LIGHT SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)
HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
MLM Z-PLUS PACKAGE&HEADLAMP-4-BULB HALOGEN MULTI
TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)&HEADLAMP LEVELING DEVICE-WITHOUT
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&DAYTIME RUNNING LIGHT SYSTEM-WITH; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&DAYTIME RUNNING LIGHT SYSTEM-WITH
DAYTIME RUNNING LIGHT SYSTEM-WITH; VSC-WITH(*HSAC & *TSC)
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&BACK MONITOR-WITH(*PVM)
DAYTIME RUNNING LIGHT SYSTEM-WITH
HEADLAMP LEVELING DEVICE-WITHOUT; MLM PACKAGE&HEADLAMP-4-BULB HALOGEN MULTI
VSC-WITH(*HSAC & *TSC)&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
DAYTIME RUNNING LIGHT SYSTEM-WITH
HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT BUMPER-PAINTED(MLM)
DAYTIME RUNNING LIGHT SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH
HEADLAMP-LED
BACK MONITOR-WITH(*PVM)
TOYOTA STOP & START SYSTEM-WITH
main8211J-KK790iGUN120,122..TH..IV3; GUN120,122..XTR..L; GUN126..6F..L..TH;GUN112,120,121,122..SCB..TH..CBU; GUN126..6FC..L202312-202407
COLD CHAIN PACKAGE&VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM); POWER SUPPLY PACKAGE&VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM); VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM); VSC-WITH(*HSAC & *TSC)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
TOYOTA STOP & START SYSTEM-WITH&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
VSC-WITH(*HSAC & *TSC)&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-LED(MLM)
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
82112WIRE, ENGINE ROOM, NO.2
82119CWIRE, ENGINE ROOM, NO.5
main82119-KK320supersedes 82119-KK330iGUN125,126,135..THP..H; GUN125..TH; GUN135..S..TH202308-202407
CLEARANCE & BACK SONAR-WITH; FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
main82119-KK330iGUN125..6FC..CBU; GUN125..RHD..6F..S..SA..CBU; GUN135..XTR..SA;GUN135..SCB..6FC202402-202410
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17 ALUMINUM&CLEARANCE & BACK SONAR-WITH
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE &BACK SONAR-WITH; MLM ADVENTURE PACKAGE
MLM Z-PLUS PACKAGE&FRONT FOG LAMP-WITH(LED)
MLM Z-PLUS PACKAGE
8211AWIRE, ENGINE ROOM, NO.6
main8211A-KK050supersedes 8211A-KK070iGUN125,126,135..THP..H; GUN125..TH; GUN135..S..TH202308-202407
CLEARANCE & BACK SONAR-WITH; FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)
main8211A-KK070iGUN125..6FC..CBU; GUN125..RHD..6F..S..SA..CBU; GUN135..XTR..SA;GUN135..SCB..6FC202402-202410
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17 ALUMINUM&CLEARANCE & BACK SONAR-WITH
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE &BACK SONAR-WITH; MLM ADVENTURE PACKAGE
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
MLM Z-PLUS PACKAGE
MLM Z-PLUS PACKAGE
82712ASUPPORT, WIRING HARNESS
main82712-33190iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP; GUN112,12#,13#,TGN110,121,XPN135..RHD..THP202308-202407
82815ACOVER, WIRING HARNESS PROTECTOR
82815BCOVER, WIRING HARNESS PROTECTOR
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82821NCOVER, CONNECTOR
82821PCOVER, CONNECTOR
main82821-71080iGUN122..LHD..GEN; GUN122..LHD..GEN;GUN112,TGN110..IDN; TGN121..GEN..CBU; TGN126..S;TGN126..THP..LA;GUN112,122..L..GCC;GUN111,125,126,TGN111..THP..(GCC,LA)202308-202407
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)&VSC-WITH(*HSAC & *TSC)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL(DOP -DEALERSHIP INSTALL); ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)&VSC-WITH(*HSAC & *TSC)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL(DOP -PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
8401SWITCH & RELAY & COMPUTER
9011906A06
main90119-06A06
9011908827
main90119-08827
90119T0130
main90119-T0130
90119T0313
main90119-T0313
90178T0018
main90178-T0018
19 parts on this diagram · 22 diagrams in section
