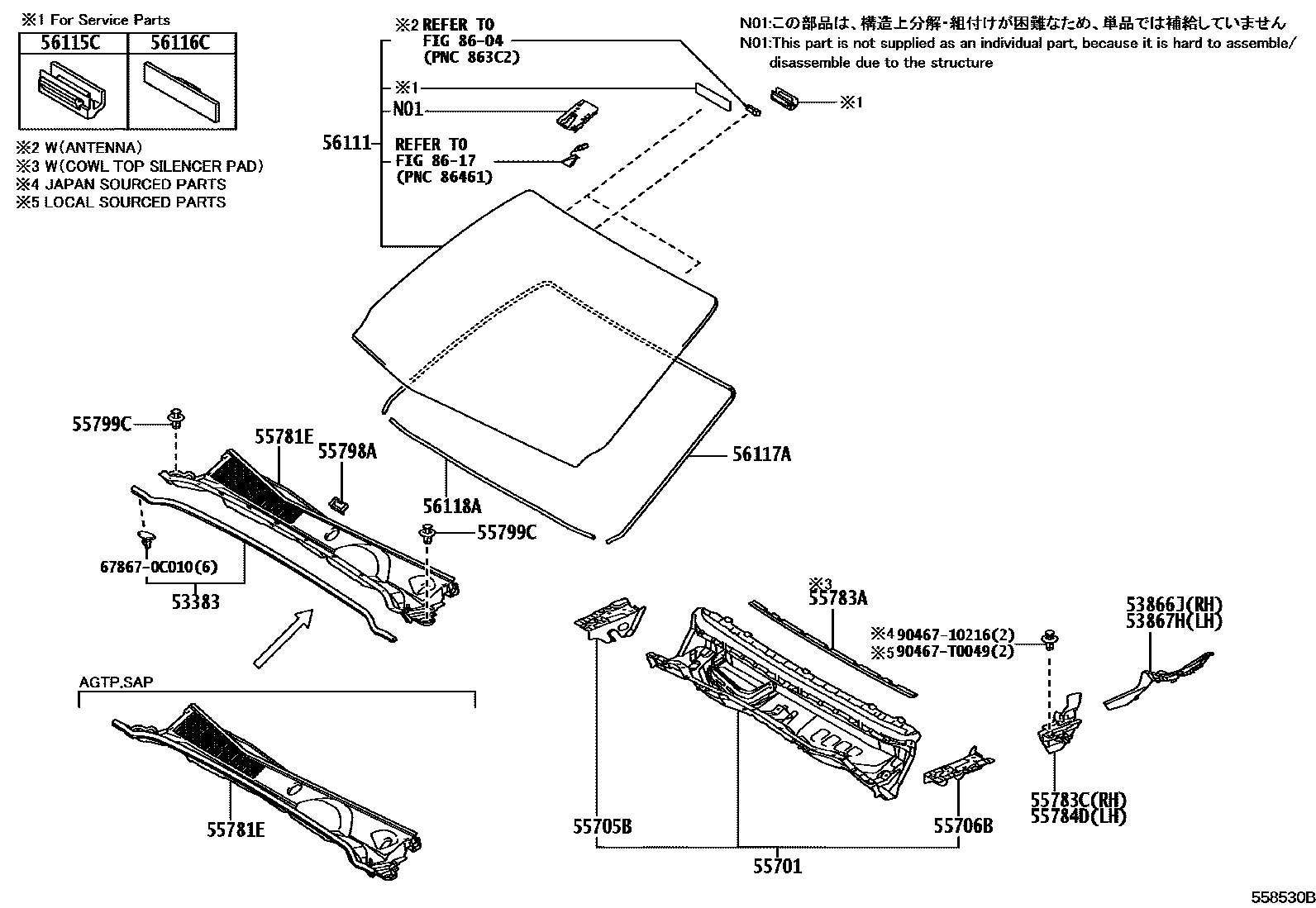

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
ECUADOR SPEC
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
55799CCLIP, COWL TOP VENTILATOR LOUVER
(J)
(L)
56111GLASS, WINDSHIELD
main56101-0K342supersedes 56101-0KL60iGUN122,125..LHD..GEN;GUN135,TGN126..THP..LA; GUN125..THP..LA; TGN121..GEN..CBU202308-202407
ACTIVE SAFETY PACKAGE-WITHOUT; ECUADOR SPEC
main56101-0K410supersedes 56101-0KG40iGUN125..AGTP..LA; GUN125..BZAG;GUN126,135,TGN126,136..AGTP202311-202410
ACTIVE SAFETY PACKAGE-WITHOUT
main56101-0KP40iGUN125,135,TGN136..RHD..SCB..MTM..S..SA; GUN125..KEN;GUN126..S..SA;GUN135..RHD..SCB..L..CBU;GUN122,125,TGN120..RHD..L..SA; GUN125..RHD..6F..S..SA..CBU; GUN126..6F..H..SA202402-202410
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(FOR EMERGING MARKET); AUDIO-WITHOUT & WITH(AUDIO LESS COVER); EXPORT FROM SA
main56101-0KP50iGUN122..SA..IV3; GUN135..S..SA;GUN126..SCB..H;GUN126..6F..H..SA;GUN125,136,TGN136..RHD..SCB..(H,S)..SA202402-202410
AUDIO-*DA(FOR EMERGING MARKET) & DAB
main56101-0KB80iGUN122..L..GCC;GUN111,126..GCC; TGN126..S;GUN112..L..GCC;GUN125,TGN111..GCC202401-202407
AUDIO-WITHOUT & WITH(ACCESSORY AUDIO & DAB); SAUDI ARABIA SPEC&AUDIO-WITHOUT & WITH(ACCESSORY AUDIO & DAB)
ACTIVE SAFETY PACKAGE-WITH
EXPORT FROM SA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH; ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
56115CSTOPPER, WINDSHIELD GLASS
main56115-30100iGUN122,125..GCC;GUN126..THP..CBU;GUN122,125..RHD..(GEN,IDN,TH);GUN11#,120,121,135,TGN11#,12#,XPN135..GCC,GEN,IDN,TH202308-202407
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=2620
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
main56117-KK030iGUN11#,12#,13#,TGN11#,12#,XPN135..THP; GUN111;TGN121..GCC..IV3; GUN125..THP..LA; GUN135..6FC..H;GUN135..(L,S)..TH;GUN125,126..XTR..TH; TGN121..GEN..CBU; TGN126..S; TGN126..S;TGN121..L..GCC..CBU202308-202407
L=1248; L=1248,ACTIVE SAFETY PACKAGE-WITHOUT; L=1248,AUDIO-*DA(8INCH) & *BT & DAB; L=1248,AUDIO-*DA(FOR EMERGING MARKET) & DAB; L=1248,ECUADOR SPEC; L=1248,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; L=1248,SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; L=1248,SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; L=1248,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; L=1248,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
8604ANTENNA
8617PRE-COLLISION SYSTEM
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 2 diagrams in section
