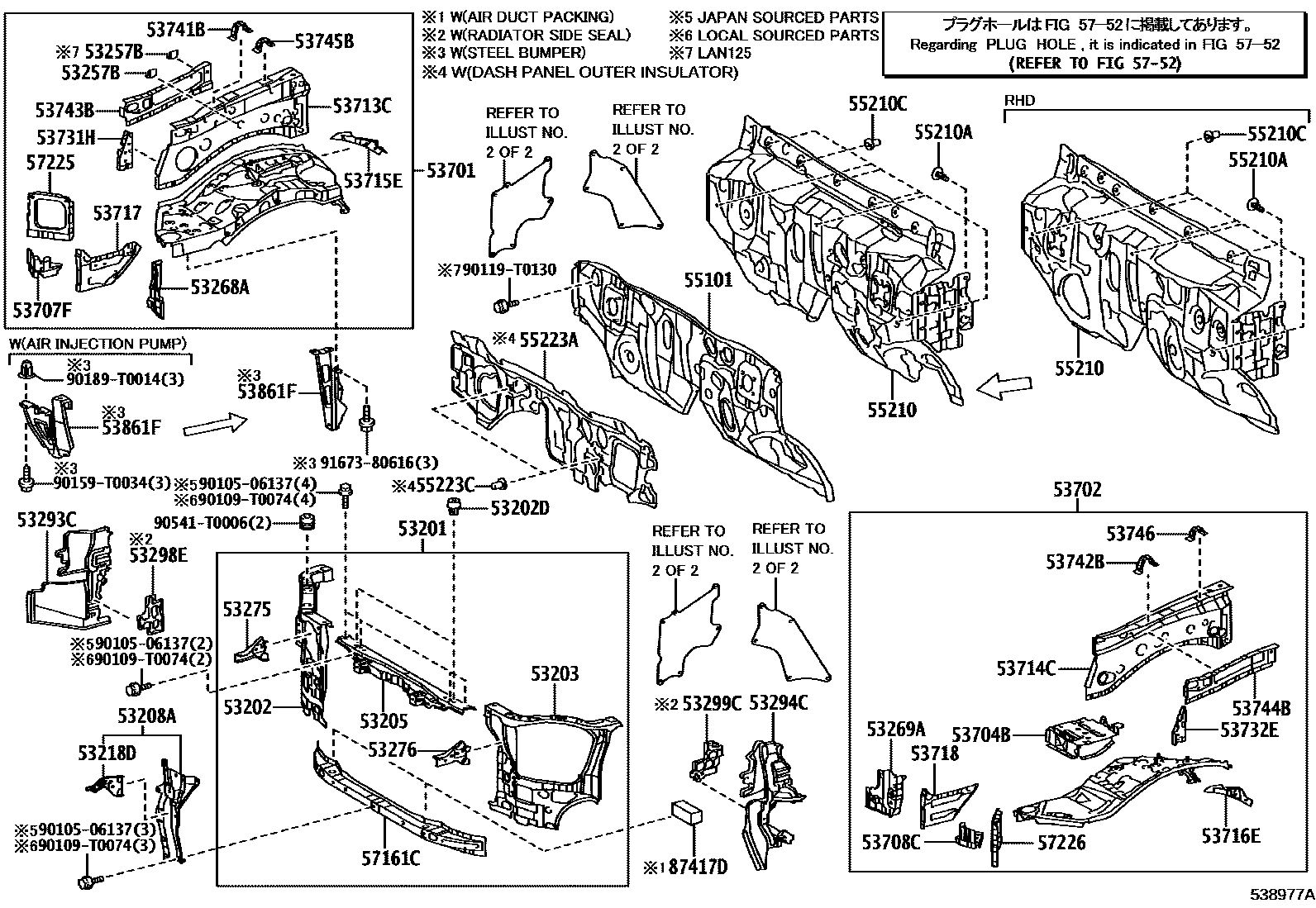

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53218DEXTENSION, HOOD LOCK BRACE
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH
53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-KK110iGUN120,122,126..(L,S)..TH..CBU; GUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,TGN121..TH; GUN120,122..XTR; GUN125..S..GEN; GUN126,135..6FC..H..TH; GUN135,XPN135..TH;GUN125,126..XTR..(GEN,TH); GUN135..(L,S)..TH;GUN125,126..XTR..6F..TH202308-202407
COLD CHAIN PACKAGE; FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM PACKAGE; MLM Z-PLUS PACKAGE; POWER SUPPLY PACKAGE; TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
MLM Z-PLUS PACKAGE
main53293-KK120iTGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC; TGN126..S;GUN125,126..GCC202308-202407
FRONT BUMPER-WITH(STEEL LOWER COVER)
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
MLM Z-PLUS PACKAGE
MLM Z-PLUS PACKAGE
MLM Z-PLUS PACKAGE
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-KK040supersedes 53294-KK120iGUN120,122..XTR; TGN121..L..GCC..CBU;GUN112,120,121,122,TGN121..GEN,IDN,PH,TH;GUN125,126,135,TGN110,120,126..SCB..THP..CBU; TGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC202308-202407
FRONT BUMPER-PAINTED; TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
main53294-KK110iGUN120,122,126..(L,S)..TH..CBU; GUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,TGN121..TH; GUN120,122..XTR; GUN125..S..GEN; GUN126,135..6FC..H..TH; GUN135,XPN135..TH;GUN125,126..XTR..(GEN,TH); GUN135..(L,S)..TH;GUN125,126..XTR..6F..TH202308-202407
COLD CHAIN PACKAGE; FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM PACKAGE; MLM Z-PLUS PACKAGE; POWER SUPPLY PACKAGE; TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
MLM Z-PLUS PACKAGE
main53294-KK120iTGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC; TGN126..S;GUN125,126..GCC202308-202407
FRONT BUMPER-WITH(STEEL LOWER COVER)
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
MLM Z-PLUS PACKAGE
MLM Z-PLUS PACKAGE
53298ESEAL, RADIATOR SIDE, RH
53299CSEAL, RADIATOR SIDE, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-KK350iGUN125,126..GCC; TGN121..LHD..THP;GUN11#,122,TGN11#,120,126..THP..(GCC,LA)202308-202407
FRONT BUMPER-WITH(STEEL LOWER COVER)
FRONT BUMPER-PAINTED
NO.2
NO.1
53702APRON SUB-ASSY, FRONT FENDER, LH
53704BSUPPORT SUB-ASSY, BATTERY, LH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
main53714-KK020iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP; GUN112,12#,13#,TGN110,121..RHD..THP202308-202407
EXC PLANT TMMIN,TSAM
PLANT TMMIN,TSAM
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731HPATCH, FRONT FENDER APRON, RH
53732EREINFORCEMENT, FRONT FENDER APRON, LH
53741BPLATE, FENDER APRON REINFORCE, RH
53742BPLATE, FENDER APRON REINFORCE, LH
53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53861FBRACKET, FRONT WHEEL OPENING, NO.1
main53861-0K010iTGN111,121..S; TGN121..S; TGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC; TGN126..S;GUN125,126..GCC202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&FRONT BUMPER-PAINTED; EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&FRONT BUMPER-PAINTED; FRONT BUMPER-PAINTED; FRONT BUMPER-WITH(STEEL LOWER COVER)
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&FRONT BUMPER-WITH(STEEL LOWER COVER)
55101PANEL SUB-ASSY, DASH
main55101-KK260iGUN125,135..6F..(L,S)..TH; GUN135..6F..H;GUN126..RHD..6F..(H,S);GUN122,125,135,TGN121..RHD..MTM..(ARL,GEN)202308-202309
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL
main55101-KK261iGUN125,135..6F..(L,S)..TH; GUN135..6F..H;GUN126..RHD..THP..6F..(H,S);GUN122,125,135,TGN121..RHD..MTM..(ARL,GEN)202309-202407
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL
main55101-KK280iGUN126,135..6FC..(L,S)..TH; GUN135..6FC..(L,S); GUN135..6FC..H;GUN125,136,TGN121..6FC;GUN126..RHD..6FC..(H,S)202308-202309
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL
main55101-KK281iGUN126,135..6FC..(L,S)..TH; GUN135..6FC..(L,S)..TH; GUN135..6FC..H;GUN125,136,TGN121..6FC..ARL;GUN126..RHD..THP..6FC..(H,S)202309-202407
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL
55210INSULATOR ASSY, DASH PANEL
main55210-0K340iGUN126..RHD..SCB..THP;GUN125,135..RHD..THP..L;GUN112,120,121,122,TGN110,121..RHD..THP202308-202407
55210ACLIP
IVORY
55210CCLIP
main90467-T0032×6iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP; GUN112,12#,13#,TGN110,121,XPN135..RHD..THP202308-202407
55223AINSULATOR, DASH PANEL, OUTER
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
55223CCLIP
main90467-T0032×2iGUN11#,12#,13#,XPN135..THP;TGN121,126..THP..(ARL,LA,TH); TGN121,126..GCC..CBU202308-202407
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
57161CMEMBER, FRONT CROSS
EXCEPT PLANT TSAM
PLANT TSAM
57225BRACE, FRONT MOUNTING BRACKET, RH
57226BRACE, FRONT MOUNTING BRACKET, LH
5752HOLE PLUG
87417DPACKING, AIR DUCT
9010506137
main90105-06137
90109T0074
main90109-T0074
90119T0130
main90119-T0130
90159T0034
main90159-T0034
90189T0014
main90189-T0014
90541T0006
main90541-T0006
9167380616
main91673-80616
54 parts on this diagram · 3 diagrams in section
