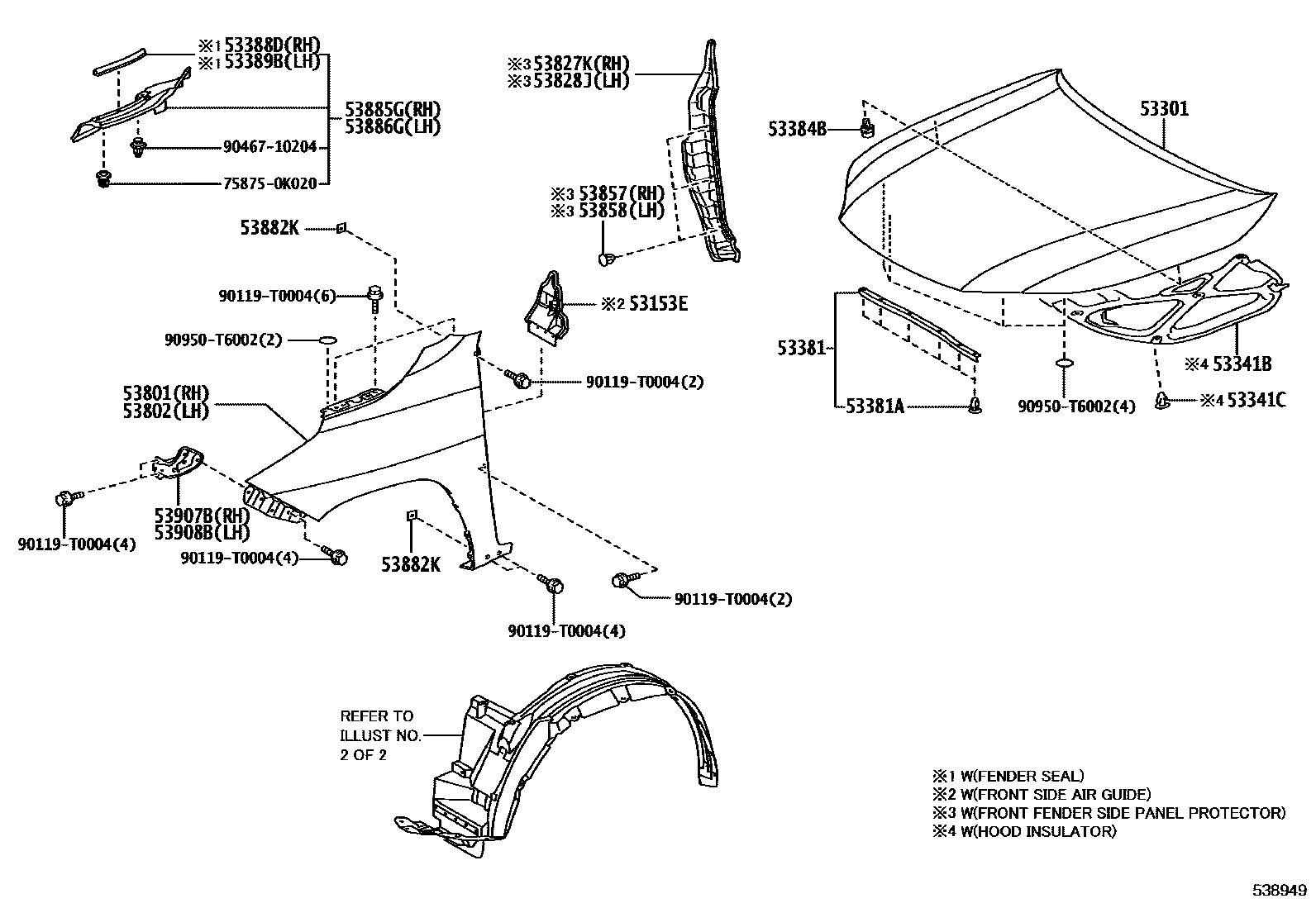

HOOD & FRONT FENDER
53153EGUIDE, FRONT SIDE AIR
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
main53153-0K020iGUN125,126..SCB..S..SA; GUN125..LHD..SCB..S; GUN135..S..SA;GUN125..XTR..SA;GUN126,136..H..SA202402-202410
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
main53153-0K100iGUN135..RHD..SCB..L..CBU;GUN122,125,126..SCB..(L,S)..(KEN,SA); GUN135..SCB..6F..S202402-202410
TIRE & DISC WHEEL-225/70R17C STEEL
53301HOOD SUB-ASSY
main53301-KK050iGUN120,122,126..(L,S)..TH..CBU; GUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,TGN121..TH; GUN120,122..XTR; GUN125,126,13#..XTR..THP202308-202407
COLD CHAIN PACKAGE; FRONT BUMPER-PAINTED(MLM); MLM PACKAGE; POWER SUPPLY PACKAGE; TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
53341BINSULATOR, HOOD
main53341-0K251iGUN11#,12#,13#,XPN135..THP;TGN110,121,126..THP..(ARL,GEN,IDN,LA,TH); TGN121,126..GCC..CBU; TGN121..GEN..CBU202308-202407
ECUADOR SPEC; IRAN SPEC
53341CCLIP(FOR HOOD INSULATOR)
main90467-T0014×12iGUN11#,12#,13#,XPN135..THP;TGN110,121,126..THP..(ARL,GEN,IDN,LA,TH); TGN121,126..GCC..CBU; TGN121..GEN..CBU202308-202407
ECUADOR SPEC; IRAN SPEC
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
main53811-KK010iGUN122..L..GCC;GUN126..RHD..SCB..THP;GUN112,121,125,135,TGN120,121..SCB..THP..L;GUN120,122,TGN110,126..THP..(GEN,IDN,LA,PH,TH)202308-202407
main53811-KK020iGUN125,126..SCB..S..SA; TGN126..AGTP;GUN125..RHD..S..SA..CBU; TGN136..LA;GUN122..RHD..SA202308-202410
OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main53811-KK030iGUN120,122..S..TH; GUN120,122..XTR; GUN125,126..XTR..THP;GUN13#,XPN135..RHD..THP..CBU; GUN126,135..6FC..H..TH; GUN135..(L,S)..TH;GUN125,126..XTR..6F..TH202308-202407
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM
53802FENDER SUB-ASSY, FRONT LH
main53812-KK010iGUN122..LHD..SA;GUN135..(AGTP,SAP)..L;GUN125,126,LAN125,TGN12#..SCB..(AGTP,SAP)..(L,S)202308-202410
main53812-KK020iGUN120,122..XTR; TGN110,126..GCC;GUN11#,122,126,TGN111,121..S..GCC; TGN121..GCC..IV3;GUN112,122,125,TGN120..L..GCC; TGN126..THP..LA;GUN120,122..S..TH202308-202407
OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL) & W(LOGO LAMP); OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main53812-KK030iGUN125,126..RHD..6F..S..SA..CBU; GUN125,126..SCB..S..SA; GUN125..LHD..SCB..S; GUN125..RHD..S..SA..CBU; GUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA202402-202410
TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main53812-KK050iGUN120,122..S..TH; GUN120,122..XTR; GUN125,126,13#..XTR..THP; GUN126,135..6FC..H..TH; GUN135..(L,S)..TH;GUN125,126..XTR..6F..TH202308-202407
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM
TIRE & DISC WHEEL-265/60R18, ALUMINUM
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53882KSEAL, FRONT FENDER
(L)
(J)
53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
main53807-0K110iGUN126..SCB..THP;GUN125,135..THP..L;GUN11#,120,121,122,TGN11#,12#,XPN135..THP202308-202407
main53807-0K120iGUN125..LHD..SCB..SA;GUN125..RHD..(KEN,SA);GUN122,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202402-202410
53886GSEAL, FENDER APRON MUDGUARD, LH
main53808-0K120iGUN125..LHD..SCB..SA;GUN125..RHD..(KEN,SA);GUN122,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202402-202410
53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH
main53907-KK020iGUN120,122..S..TH; GUN120,122..XTR; GUN125,126..XTR..THP;GUN13#,XPN135..RHD..THP..CBU202308-202407
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH
main53908-KK010iGUN125,126..SCB..(AGTP,SAP)..(L,S);GUN122,135,LAN125,TGN12#,136..(AGTP,SAP)..L202308-202410
758750K020MOULDING, BACK DOOR OUTSIDE, UPPER
main75875-0K020
90119T0004
main90119-T0004
9046710204
main90467-10204
90950T6002
main90950-T6002
24 parts on this diagram · 4 diagrams in section
