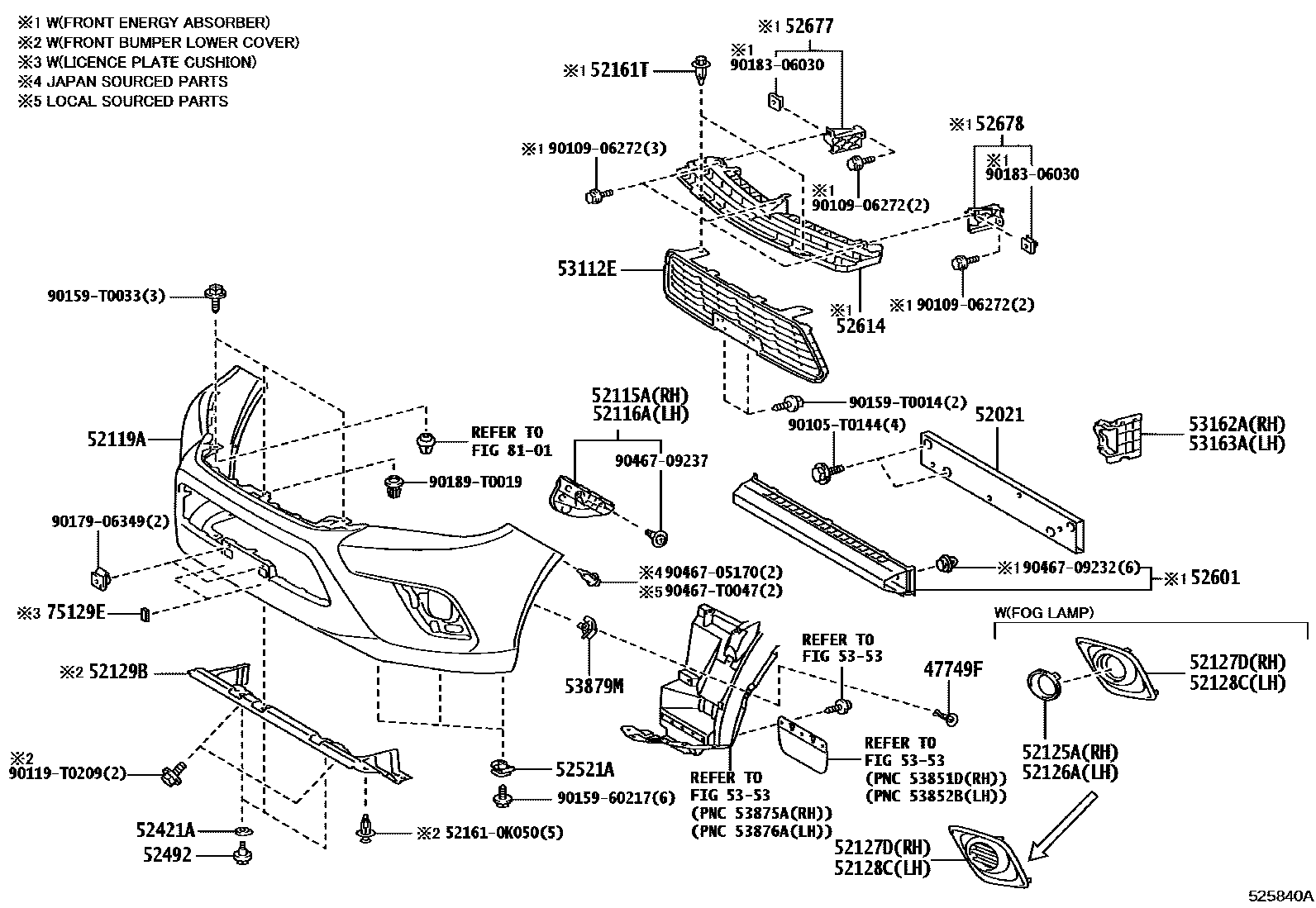

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-0K110iGUN120,122..S..TH; GUN120,122..XTR..L; GUN125,126,135..SCB..THP;GUN11#,120,121,122,TGN11#,12#..THP202308-202407
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-4-BULB HALOGEN MULTI; MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED
main52115-0K120iGUN135..L..SA;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..SA; GUN135..SCB..6F..S; TGN136..SA202402-202410
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&RADIATOR GRILLE-MATERIAL COLOR; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&RADIATOR GRILLE-PAINTING
main52115-0K180iGUN120,122..S..TH; GUN120,122..XTR..L; GUN125,126..XTR..THP;GUN13#,XPN135..RHD..THP..CBU202308-202407
FRONT BUMPER-PAINTED & WITH(WIDE FENDER); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED; FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
main52115-0K190iGUN125..6FC..CBU; GUN125..LHD..SCB..S; GUN125..RHD..6F..S..SA; GUN125..RHD..6F..S..SA..CBU; GUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA; GUN126..S..SA;GUN125..6FC..CBU;GUN125..LHD..SCB..S202402-202410
FRONT BUMPER-PAINTED & WITH(WIDE FENDER); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACKSONAR-WITH; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
main52115-YP040iGUN125..TH; GUN126,135..6FC..H..TH; GUN135..L..TH; GUN135..S..TH; GUN135..S..TH;GUN126..6F..H..TH202308-202407
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE &BACK SONAR-WITH; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-0K120iGUN135..L..SA;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..SA; GUN135..SCB..6F..S; TGN136..SA202402-202410
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&RADIATOR GRILLE-MATERIAL COLOR; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&RADIATOR GRILLE-PAINTING
main52116-0K180iGUN120,122..S..TH; GUN120,122..XTR..L; GUN125,126..XTR..THP;GUN13#,XPN135..RHD..THP..CBU202308-202407
FRONT BUMPER-PAINTED & WITH(WIDE FENDER); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED; FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
main52116-0K190iGUN125..6FC..CBU; GUN125..LHD..SCB..S; GUN125..RHD..6F..S..SA; GUN125..RHD..6F..S..SA..CBU; GUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA; GUN126..S..SA;GUN125..6FC..CBU;GUN125..LHD..SCB..S202402-202410
FRONT BUMPER-PAINTED & WITH(WIDE FENDER); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACKSONAR-WITH; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
main52116-YP040iGUN125..TH; GUN126,135..6FC..H..TH; GUN135..L..TH; GUN135..S..TH; GUN135..S..TH;GUN126..6F..H..TH202308-202407
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE &BACK SONAR-WITH; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
52119ACOVER, FRONT BUMPER
main52119-0K820iGUN112,120,122,125,135,TGN110,121,126..SCB..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202407
main52119-0M951iTGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC; TGN126..S; TGN126..S;GUN125,126..GCC202308-202407
PAINT REQ.; PAINT REQ.,FRONT BUMPER-WITH(STEEL LOWER COVER); PAINT REQ.,FRONT BUMPER-WITH(STEEL LOWER COVER)&FRONT FOG LAMP-WITH
main52119-0M977iGUN112,TGN111,121..S; GUN120,122..XTR;GUN126..SCB..THP;TGN121..L..GCC..CBU;GUN121,125,TGN110,120,126..SCB..(GCC,TH); TGN121..S;TGN126..THP..LA;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC,GEN;GUN125,TGN121..L..(GEN,IDN)202308-202407
PAINT REQ.; PAINT REQ.,FRONT BUMPER-PAINTED; PAINT REQ.,FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH
main52119-0M979supersedes 52119-0K860iGUN125..LHD..L..SA;GUN125..RHD..SCB..6F..SA..CBU;GUN122,135,LAN125,TGN121..L..SA; GUN125..RHD..6F..S..SA..CBU; GUN126..S..SA;GUN125..SA..IV3;GUN125..LHD..SCB..S;GUN125,TGN120..(5F,6FC)..SA202402-202410
PAINT REQ.; PAINT REQ.,FRONT BUMPER-PAINTED; PAINT REQ.,FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH
main52119-0M991iGUN125..LHD..SCB..S; GUN125..RHD..6F..S..SA; GUN125..XTR..SA;GUN135,TGN136..SCB..MTM..S; GUN126..6F..H..SA; GUN126..S..SA;GUN125..6FC..CBU;GUN125..LHD..SCB..S202402-202410
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER); PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
main52119-0M992iGUN125..6FC..CBU; GUN125..RHD..6F..S..SA..CBU; GUN125..XTR..S..SA;GUN135..SCB..6F..S; GUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202402-202410
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.; PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER); PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED; PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.
main52119-0K860iGUN125..LHD..L..SA;GUN125..RHD..SCB..6F..SA..CBU;GUN122,135,LAN125,TGN121..L..SA; GUN125..SA..IV3; GUN135..SCB..6F..S; TGN120..SA;GUN125..SA..IV3; TGN136..SA202402-202410
FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&RADIATOR GRILLE-MATERIAL COLOR; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&RADIATOR GRILLE-PAINTING
PAINT REQ.,FRONT BUMPER-PAINTED
PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
main52119-YP919iGUN120,122,126..SCB..TH..CBU; GUN120,122..S..TH; GUN120,122..TH..IV3; GUN120,122..XTR..L;GUN120,122..TH..IV3;GUN112,121,TGN121..TH202308-202407
PAINT REQ.,COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM); PAINT REQ.,FRONT BUMPER-PAINTED(MLM); PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM); PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-4-BULB HALOGEN MULTI; PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED; PAINT REQ.,POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)
PAINT REQ.,MLM Z-PLUS PACKAGE; PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&FRONT FOG LAMP-WITH(LED); PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT FOG LAMP-WITH(LED)
PAINT REQ.,MLM Z-PLUS PACKAGE
PAINT REQ.,MLM Z-PLUS PACKAGE; PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT FOG LAMP-WITH(LED)
52125ABRACKET, FOG LAMP MOUNTING, RH
main52125-0K040iGUN125,126..SCB..S..SA; GUN125..RHD..6F..S..SA..CBU; GUN125..SA..IV3; GUN135..SCB..6F..S202402-202410
FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH
52126ABRACKET, FOG LAMP MOUNTING, LH
main52126-0K040iGUN125,126..SCB..S..SA; GUN125..RHD..6F..S..SA..CBU; GUN125..SA..IV3; GUN135..SCB..6F..S202402-202410
FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH
52127DCOVER, FRONT BUMPER HOLE, RH
NO PAINT REQ.
main52127-0K200supersedes 52127-0K230iTGN121..L..GCC..CBU;GUN125,126,135,TGN110,120,126..SCB..THP;GUN112,120,121,122,TGN121..ARL,GEN,IDN,PH,TH; TGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC202308-202407
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-PAINTED
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
main52127-0K850iGUN120,122,126..SCB..TH..CBU; GUN120,122..S..TH; GUN120,122..TH..IV3; GUN120,122..XTR..L; GUN120,122..XTR..L;GUN120,122..TH..IV3;GUN112,121,TGN121..TH; GUN135..L..TH;GUN125,126,136..XTR..THP..(L,S)202308-202407
NO PAINT REQ.; NO PAINT REQ.,COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED; NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-4-BULB HALOGEN MULTI; NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED; NO PAINT REQ.,POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
main52127-0K880iGUN125..6FC..CBU; GUN125..LHD..SCB..S; GUN125..RHD..6F..S..SA; GUN125..RHD..6F..S..SA..CBU; GUN125..XTR..SA;GUN135,TGN136..S..SA; GUN126..S..SA;GUN125..6FC..CBU;GUN125..LHD..SCB..S202402-202410
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.
NO PAINT REQ.
main52127-0K180iGUN125,126..SCB..S..SA; GUN125..RHD..6F..S..SA..CBU; GUN125..SA..IV3; GUN135..SCB..6F..S202402-202410
NO PAINT REQ.,FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; NO PAINT REQ.,FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH; NO PAINT REQ.,FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&FRONTFOG LAMP-WITH
main52127-0K230iTGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC; TGN126..S;GUN125,126..GCC202308-202407
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-WITH(STEEL LOWER COVER)
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)
main52127-0K890iGUN125..6FC..CBU; GUN125..LHD..SCB..S; GUN125..RHD..6F..S..SA; GUN125..RHD..6F..S..SA..CBU; GUN125..XTR..S..SA;GUN135,TGN136..S..SA; GUN125..XTR..S..SA;GUN135..SCB..6F..S; GUN126..S..SA;GUN125..6FC..CBU;GUN125..LHD..SCB..S202402-202410
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
main52127-YP120iGUN125..TH; GUN126,135..6FC..H..TH; GUN135..L..TH; GUN135..S..TH; GUN135..S..TH;GUN126..6F..H..TH202308-202407
NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOGLAMP-WITH(LED); NO PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
NO PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); NO PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT FOG LAMP-WITH(LED)
52128CCOVER, FRONT BUMPER HOLE, LH
NO PAINT REQ.
NO PAINT REQ.
main52128-0K210iGUN135..L..SA;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..SA; GUN135..SCB..6F..S; TGN136..SA202402-202410
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&RADIATOR GRILLE-MATERIAL COLOR; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&RADIATOR GRILLE-PAINTING
NO PAINT REQ.
NO PAINT REQ.
main52128-0K850iGUN120,122,126..SCB..TH..CBU; GUN120,122..S..TH; GUN120,122..TH..IV3; GUN120,122..XTR..L; GUN120,122..XTR..L;GUN120,122..TH..IV3;GUN112,121,TGN121..TH; GUN135..L..TH;GUN125,126,136..XTR..THP..(L,S)202308-202407
NO PAINT REQ.; NO PAINT REQ.,COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED; NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-4-BULB HALOGEN MULTI; NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED; NO PAINT REQ.,POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
main52128-0K880iGUN125..6FC..CBU; GUN125..LHD..SCB..S; GUN125..RHD..6F..S..SA; GUN125..RHD..6F..S..SA..CBU; GUN125..XTR..SA;GUN135,TGN136..S..SA; GUN126..S..SA;GUN125..6FC..CBU;GUN125..LHD..SCB..S202402-202410
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.
NO PAINT REQ.
main52128-0K180iGUN125,126..SCB..S..SA; GUN125..RHD..6F..S..SA..CBU; GUN125..SA..IV3; GUN135..SCB..6F..S202402-202410
NO PAINT REQ.,FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; NO PAINT REQ.,FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH; NO PAINT REQ.,FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&FRONTFOG LAMP-WITH
main52128-0K230iTGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC; TGN126..S;GUN125,126..GCC202308-202407
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-WITH(STEEL LOWER COVER)
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)
main52128-0K890iGUN125..6FC..CBU; GUN125..LHD..SCB..S; GUN125..RHD..6F..S..SA; GUN125..RHD..6F..S..SA..CBU; GUN125..XTR..S..SA;GUN135,TGN136..S..SA; GUN125..XTR..S..SA;GUN135..SCB..6F..S; GUN126..S..SA;GUN125..6FC..CBU;GUN125..LHD..SCB..S202402-202410
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
main52128-YP120iGUN125..TH; GUN126,135..6FC..H..TH; GUN135..L..TH; GUN135..S..TH; GUN135..S..TH;GUN126..6F..H..TH202308-202407
NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOGLAMP-WITH(LED); NO PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
NO PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); NO PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT FOG LAMP-WITH(LED)
52129BCOVER, FRONT BUMPER, LOWER
52161TPIECE, FRONT BUMPER
52421APAD, FRONT BUMPER
main52421-60191×3iGUN112,TGN111,121..S; TGN121..L..GCC..CBU;GUN125,126,TGN110,120,126..THP;GUN112,120,121,122,13#,TGN121,XPN135..THP..(ARL,GEN,IDN,LA,PH,TH); TGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC202308-202407
FRONT BUMPER-PAINTED; FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH
MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
52492BOLT, BUMPER PAD, NO.2
main52491-60010×3iGUN112,TGN111,121..S; TGN121..L..GCC..CBU;GUN125,126,TGN110,120,126..THP;GUN112,120,121,122,13#,TGN121,XPN135..THP..(ARL,GEN,IDN,LA,PH,TH); TGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC202308-202407
FRONT BUMPER-PAINTED; FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH
52521ACLIP(FOR FRONT BUMPER RETAINER)
main90467-05114×6iGUN112,TGN111,121..S; TGN121..L..GCC..CBU;GUN125,126,TGN110,120,126..THP;GUN112,120,121,122,13#,TGN121,XPN135..THP..(ARL,GEN,IDN,LA,PH,TH); TGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC202308-202407
FRONT BUMPER-PAINTED; FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH
53112EGRILLE, RADIATOR, LOWER NO.1
main53112-0K120iGUN112,TGN111,121..S; TGN121..L..GCC..CBU;GUN125,126,135,TGN110,120,126..SCB..THP;GUN112,120,121,122,TGN121..ARL,GEN,IDN,PH,TH; TGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC202308-202407
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-PAINTED; NO PAINT REQ.,FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED; NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
main53112-0K360iGUN125..6FC..CBU; GUN125..LHD..SCB..S; GUN125..RHD..6F..S..SA; GUN125..RHD..6F..S..SA..CBU; GUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA; GUN126..S..SA;GUN125..6FC..CBU;GUN125..LHD..SCB..S202402-202410
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
53162ADEFLECTOR, FRONT BUMPER STONE, RH
main53162-KK010iTGN121..L..GCC..CBU;GUN125,126,TGN110,120,126..THP;GUN112,120,121,122,13#,TGN121,XPN135..THP..(ARL,GEN,IDN,LA,PH,TH); TGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC202308-202407
FRONT BUMPER-PAINTED
53163ADEFLECTOR, FRONT BUMPER STONE, LH
main53163-KK010iTGN121..L..GCC..CBU;GUN125,126,TGN110,120,126..THP;GUN112,120,121,122,13#,TGN121,XPN135..THP..(ARL,GEN,IDN,LA,PH,TH); TGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC202308-202407
FRONT BUMPER-PAINTED
5353HOOD & FRONT FENDER
53879MRETAINER, FRONT FENDER LINER
75129ECUSHION, FRONT LICENCE PLATE
8101HEADLAMP
521610K050CUSHION, REAR BUMPER GUARD, NO.1
main52161-0K050
90105T0144
main90105-T0144
9010906272
main90109-06272
90119T0209
main90119-T0209
9015960217
main90159-60217
90159T0014
main90159-T0014
90159T0033
main90159-T0033
9017906349
main90179-06349
9018306030
main90183-06030
90189T0019
main90189-T0019
9046705170
main90467-05170
9046709232
main90467-09232
9046709237
main90467-09237
90467T0047
main90467-T0047
39 parts on this diagram · 6 diagrams in section
