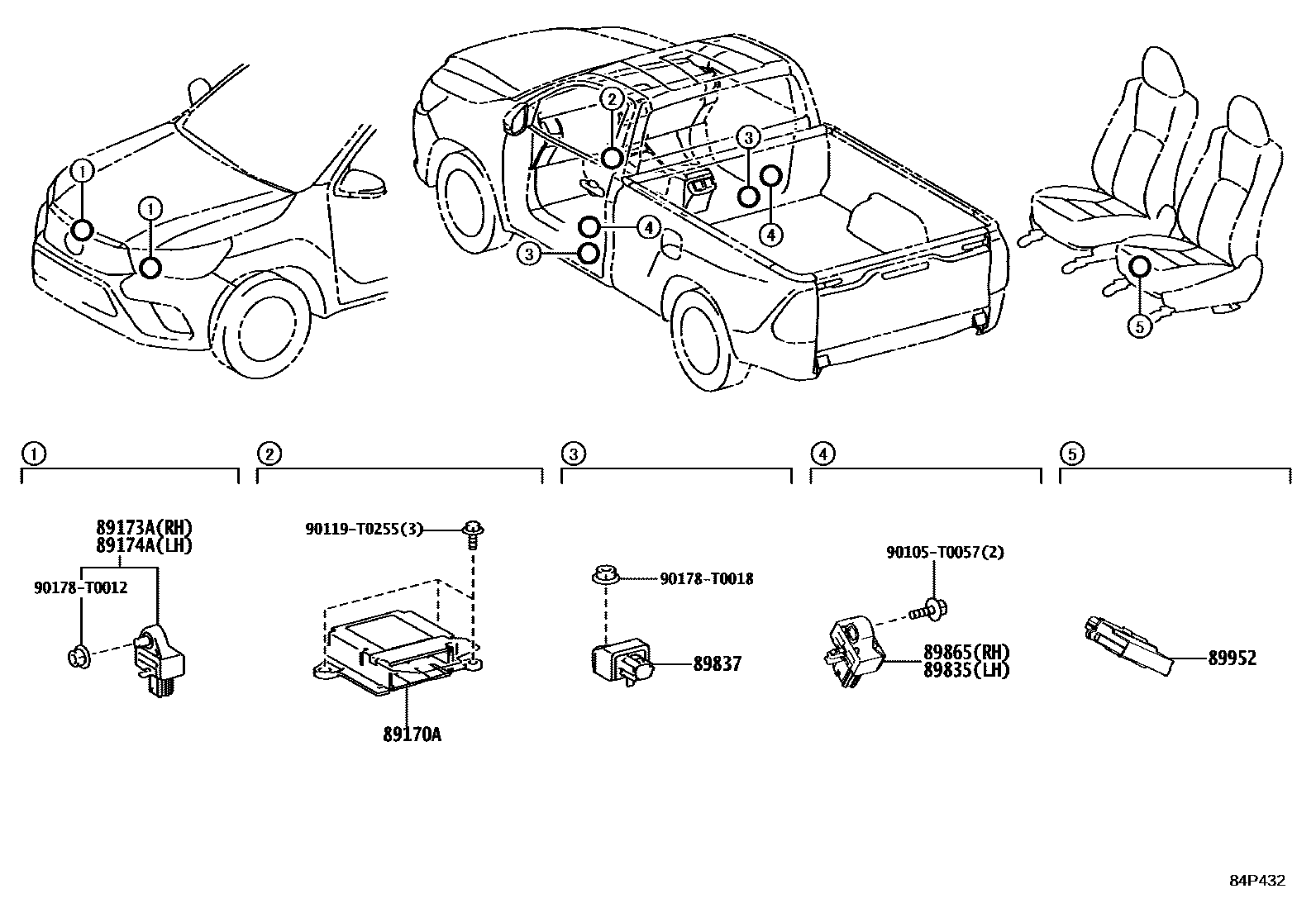

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-0K560iGUN125,126,13#..SCB..6FC..SA; GUN125,135..RHD..SCB..6F..S..SA; TGN136..SA202301-202401
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITH(*HSAC & *TSC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)); VSC-WITHOUT&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)); VSC-WITHOUT&POWER DOOR LOCK-WITHOUT
main89170-0KB50supersedes 89170-0KB30iGUN125..RHD..6F..GEN; GUN125..S..GEN; GUN135..L..TH;GUN126..6F..L..TH; GUN135..S..TH;GUN135..THP..LA;GUN125,126..6FC..L..CBU;GUN125,TGN126..THP..(LA,TH)202208-202307
ASEAN GENERAL SPEC; CENTRAL AND SOUTH AMERICA SPEC; VSC-WITH(*HSAC & *TSC)
ASEAN GENERAL SPEC&VSC-WITHOUT; CAMBODIA SPEC&VSC-WITHOUT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT; VSC-WITHOUT
main89170-0KD40supersedes 89170-0K580iGUN125,135..S..TH; GUN125..H; GUN125..S..GEN; GUN126,135..H..TH202208-202307
ASEAN GENERAL SPEC; ASEAN GENERAL SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); COSTA RICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
ASEAN GENERAL SPEC; CAMBODIA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); CENTRAL AND SOUTH AMERICA SPEC; VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
VSC-WITHOUT
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KB20supersedes 89170-0K400iGUN125,135..THP..LA; GUN125..IDN; GUN125..LHD..L..GEN; GUN125..RHD..6F..GEN202208-202307
CENTRAL AND SOUTH AMERICA SPEC; CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT; VSC-WITHOUT
ASEAN GENERAL SPEC&VSC-WITHOUT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIRBAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASEAN GENERAL SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89835SENSOR, DOOR SIDE AIRBAG, LH
main89831-0K040iGUN125,135..H;GUN125,13#,TGN121..ARL;GUN126..RHD..THP..(H,S); GUN135..S..TH;GUN125..S..GEN;GUN125..IDN,TH;GUN112,122,125,TGN110..(5F,6FC)..(GEN,IDN)202208-202307
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89837SENSOR, FRONT FLOOR SIDE AIRBAG
89865SENSOR, DOOR SIDE AIRBAG, RH
main89831-0K040iGUN125,135..H;GUN125,13#,TGN121..ARL;GUN126..RHD..THP..(H,S); GUN135..S..TH;GUN125..S..GEN;GUN125..IDN,TH;GUN112,122,125,TGN110..(5F,6FC)..(GEN,IDN)202208-202307
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89952COMPUTER, OCCUPANT DETECTION
90105T0057
main90105-T0057
90119T0255
main90119-T0255
90178T0012
main90178-T0012
90178T0018
main90178-T0018
11 parts on this diagram · 2 diagrams in section
