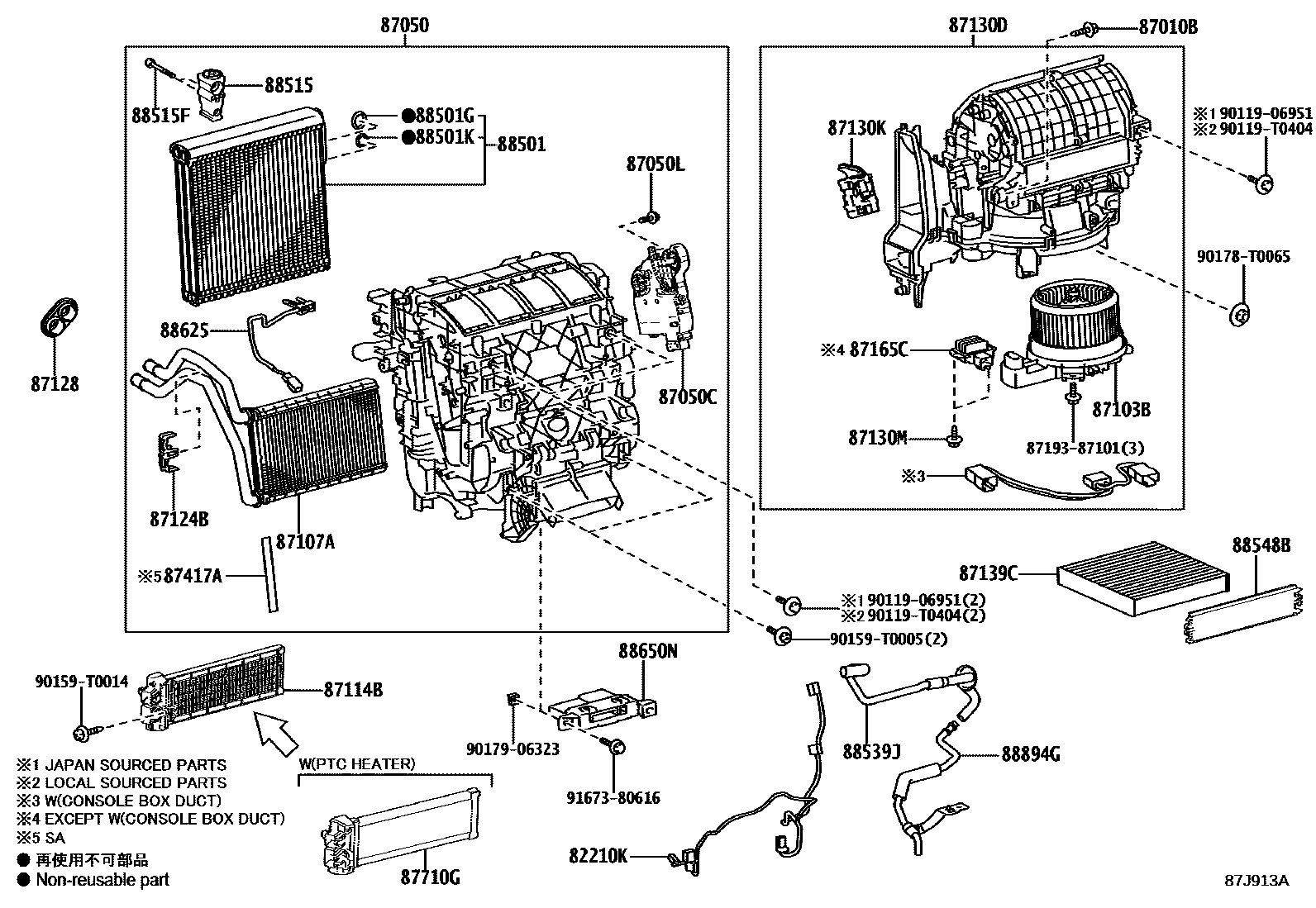

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1MANUAL COOLER 0004 1MANUAL HEATER 0005 1AUTO AIR CONDITIONER 0006 1MANUAL AIR CONDITIONER 0007 1MANUAL COOLER 0008 1MANUAL HEATER 0009 1BOOST VENTILATOR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0K050iGUN126,135..THP..H202108-202207

FRONT AIR CONDITIONER-AUTO

main82212-0K060iGUN125..XTR..H202108-202207

87010BSCREW(FOR AIR CONDITIONER UNIT)

main90068-00042×2iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

main90094-90426×2iGUN125,126,135,TGN126,136..AGTP202111-202210

main90099-00968×2iGUN125..MA202110-202208

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0KC70iGUN112,12#,135,TGN110,121..(L,S)..(IDN,TH)202108-202207

main87050-0KC80iGUN122..PH202108-202207

main87050-0KC90iGUN126..ARL..IV3;GUN122,125,13#,TGN121..RHD..(ARL,GEN)202108-202207

FRONT AIR CONDITIONER-MANUAL

main87050-0KD10iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP..(L,S)..(GCC,GEN,LA)202108-202207

main87050-0KE90iGUN125,126,135,TGN126,136..AGTP202111-202210

main87050-0KF30iGUN122,125,LAN125,TGN121..LHD..SA202109-202301

main87050-0KG20supersedes 87050-0KG80iGUN125,135..L..KEN;GUN125,126,13#,TGN136..RHD..(H,S)..(KEN,SA)202109-202303

main87050-0KJ00iGUN125..MA202110-202208

main87050-0KJ20iGUN122,126,TGN121..PKN202202-202301

main87050-0KP30iGUN125..XTR..H202108-202207

main87050-0KP70iGUN126,135..THP..H202108-202207

FRONT AIR CONDITIONER-AUTO

main87050-0KF20iGUN125..AGTP..LA202111-202210

FRONT AIR CONDITIONER-COOLER LESS

main87050-0KG00iGUN122,125..LHD..L..SA202109-202301

FRONT AIR CONDITIONER-COOLER LESS

main87050-0KM71iGUN125,135..(L,S)..TH202108-202207

TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL

main87050-0KP80iGUN126..H..TH;GUN135..6F..H202108-202207

TOYOTA STOP & START SYSTEM-WITH

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-F4060iGUN125,126,135..XTR..THP..H202108-202207

FRONT AIR CONDITIONER-AUTO

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main90068-00042iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

TOYOTA STOP & START SYSTEM-WITH

main90094-90426iGUN125,126,135,TGN126,136..AGTP202111-202210

main90099-00968iGUN125..MA202110-202208

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0K321iGUN112,12#,135,TGN110,121..(L,S)..(IDN,TH)202108-202207

main87103-0K331iGUN122..PH202108-202207

main87103-0K381iGUN135..H;GUN126..RHD..THP..(H,S);GUN122,125,13#,TGN121..RHD..(ARL,GEN)202108-202207

TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL

main87103-0K391iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP..(GCC,GEN,LA)202108-202207

main87103-0K461iGUN125,126,135,TGN126,136..AGTP202111-202210

main87103-0K491iGUN122,125,126,13#,TGN120,136..RHD..(KEN,SA)202109-202303

main87103-0K501iGUN122,125,LAN125,TGN121..LHD..SA202109-202301

main87103-0K531iGUN125..MA202110-202208

main87103-0K551iGUN122,126,TGN121..PKN202202-202301

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0K110iGUN135..H;GUN126..THP..(H,S);GUN11#,122,125,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA)202108-202207

TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL

main87107-0K150iGUN125,126,135,TGN126,136..AGTP202111-202210

main87107-0K170iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main87107-0K190iGUN122,126,TGN121..PKN202202-202301

87114BCOVER, HEATER

main87114-0K040iGUN125..THP..6F;GUN125..6FC..IV3;GUN11#,120,121,122,126,13#,TGN11#,12#..THP202108-202207

main87114-0K050iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main87114-0K070iGUN125,126,135,TGN126,136..AGTP202111-202210

main87114-0K090iGUN125..MA202110-202208

87124BCLAMP, HEATER

main87124-06140iGUN135..H;GUN126..THP..(H,S);GUN11#,122,125,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA)202108-202207

TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL

main87124-0K220iGUN125,126,135,TGN126,136..AGTP202111-202210

main87124-0K230iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

87128GROMMET, HEATER

main87128-0K170iGUN112,12#,135,TGN110,121..(L,S)..(IDN,PH,TH)202108-202207

main87128-0K180iGUN135..H;GUN126..THP..(H,S);GUN11#,122,125,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA)202108-202207

TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL

main87128-0K190iGUN125,126,135,TGN126,136..AGTP202111-202210

main87128-0K200iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main87128-0K210iGUN125..MA202110-202208

87130DBLOWER ASSY

main87130-0K531iGUN112,12#,135,TGN110,121..(L,S)..(IDN,TH)202108-202207

main87130-0K551iGUN122..PH202108-202207

main87130-0K561iGUN126..ARL..IV3;GUN122,125,13#,TGN121..RHD..(ARL,GEN)202108-202207

TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL

main87130-0K581iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP..(L,S)..(GCC,GEN,LA)202108-202207

main87130-0K621iGUN126,135..THP..H202108-202207

FRONT AIR CONDITIONER-AUTO

main87130-0K631iGUN125..XTR..H202108-202207

main87130-0K711iGUN125,126,135,TGN126,136..AGTP202111-202210

main87130-0K761iGUN122,125,LAN125,TGN121..LHD..SA202109-202301

main87130-0K791iGUN122,125,126,13#,TGN120,136..RHD..(KEN,SA)202109-202303

main87130-0K831iGUN125..MA202110-202208

main87130-0K861iGUN122,126,TGN121..PKN202202-202301

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-0K241iGUN125..XTR..H202108-202207

main87106-0K251iGUN126,135..THP..H202108-202207

FRONT AIR CONDITIONER-AUTO

87130MSCREW(FOR BLOWER)

main90068-00042×3iGUN125,126,135..XTR..THP..H202108-202207

FRONT AIR CONDITIONER-AUTO

main90094-90426×3iGUN125,126,135,TGN126,136..AGTP202111-202210

main90099-00968×3iGUN125..MA202110-202208

87139CFILTER, CLEAN AIR

main87139-0K060iGUN112,12#,135,TGN110,121..IDN,PH,TH202108-202207

POLLEN FILTER

main87139-0K070iGUN11#,122,125,126,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA)202108-202207

POLLEN FILTER,OE PART

main87139-0K080iGUN125,126,135,TGN126,136..AGTP202111-202210

POLLEN FILTER,OE PART

main87139-0K090iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202301

POLLEN FILTER,OE PART

main87139-0K100iGUN125..MA202110-202208

POLLEN FILTER

main87139-58010iGUN125,126,135,TGN126,136..AGTP202108-202210

DEODORANT FILTER

87165CCONTROL, BLOWER MOTOR

main87165-0K060iGUN125,126,135..XTR..THP..H202108-202207

FRONT AIR CONDITIONER-AUTO

87417APACKING, AIR DUCT

main87417-0K050iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

87710GQUICK HEATER ASSY

main87710-0K100iGUN125..6FC..GEN202108-202207

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0K320iGUN112,12#,13#,TGN110,121..RHD..THP202108-202207

main88501-0K390iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP202108-202207

main88501-0K420iGUN122,125,LAN125,TGN121..LHD..SA202109-202301

main88501-0K430iGUN125,135..L..KEN;GUN125,126,13#,TGN136..RHD..(H,S)..(KEN,SA)202109-202303

main88501-0K480iGUN125,126,135,TGN126,136..AGTP202111-202210

main88501-0K510iGUN125..MA202110-202208

main88501-0K520iGUN122,126,TGN121..PKN202202-202301

main88501-0K330iGUN126..H..TH;GUN135..6F..H202108-202207

TOYOTA STOP & START SYSTEM-WITH

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14044iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

ID=10.2,OD=15.0

main90099-14121iGUN125,126,135,TGN126,136..AGTP202110-202210

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90068-14043iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

ID=13.4,OD=18.2

main90099-14120iGUN125..MA202110-202208

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-0K580iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

main88515-0K670iGUN126..H..TH;GUN135..6F..H202108-202207

TOYOTA STOP & START SYSTEM-WITH

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90068-04042×2iGUN125,126,135,TGN126,136..AGTP202111-202210

main90068-04062×2iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

main90099-04542×2iGUN125..MA202110-202208

88539JHOSE, DRAIN COOLER

main88539-0K380iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP202108-202207

main88539-0K390iGUN112,12#,13#,TGN110,121..RHD..THP202108-202207

main88539-0K410iGUN125,126,135,TGN126,136..AGTP202111-202210

main88539-0K420iGUN122,125,LAN125,TGN121..LHD..SA202109-202301

main88539-0K430iGUN122,125,126,13#,TGN120,136..RHD..(KEN,SA)202109-202303

main88539-0K470iGUN125..MA202110-202208

main88539-0K490iGUN122,126,TGN121..PKN202202-202301

88548BCASE, AIR FILTER

main88548-0K111iGUN125,126,135,TGN126,136..AGTP202111-202210

main88548-0K121iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main88548-0K131iGUN125..MA202110-202208

main88899-06330iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

88625THERMISTOR, COOLER, NO.1

main88620-0K010iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

main88620-0K020iGUN126..H..TH;GUN135..6F..H202108-202207

TOYOTA STOP & START SYSTEM-WITH

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0K400iGUN125..MA202108-202208

main88650-0K480iGUN125,126,135,TGN126,136..AGTP202111-202210

main88650-0K590iGUN125,126,135..XTR..THP..H202108-202207

FRONT AIR CONDITIONER-AUTO

main88650-0K830iGUN111202108-202207

SAUDI ARABIA SPEC&TOYOTA STOP & START SYSTEM-WITH

88894GCONNECTOR, DRAIN HOSE

main88894-0K010iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP202108-202207

main88894-0K020iGUN112,12#,13#,TGN110,121..RHD..THP202108-202207

main88894-0K090iGUN125,126,135,TGN126,136..AGTP202111-202210

main88894-0K100iGUN122,125,LAN125,TGN121..LHD..SA202109-202301

main88894-0K110iGUN122,125,126,13#,TGN120,136..RHD..(KEN,SA)202109-202303

main88894-0K130iGUN125..MA202110-202208

8719387101

main87193-87101

9011906951

main90119-06951

90119T0404

main90119-T0404

90159T0005

main90159-T0005

90159T0014

main90159-T0014

90178T0065

main90178-T0065

9017906323

main90179-06323

9167380616

main91673-80616

35 parts on this diagram · 9 diagrams in section
