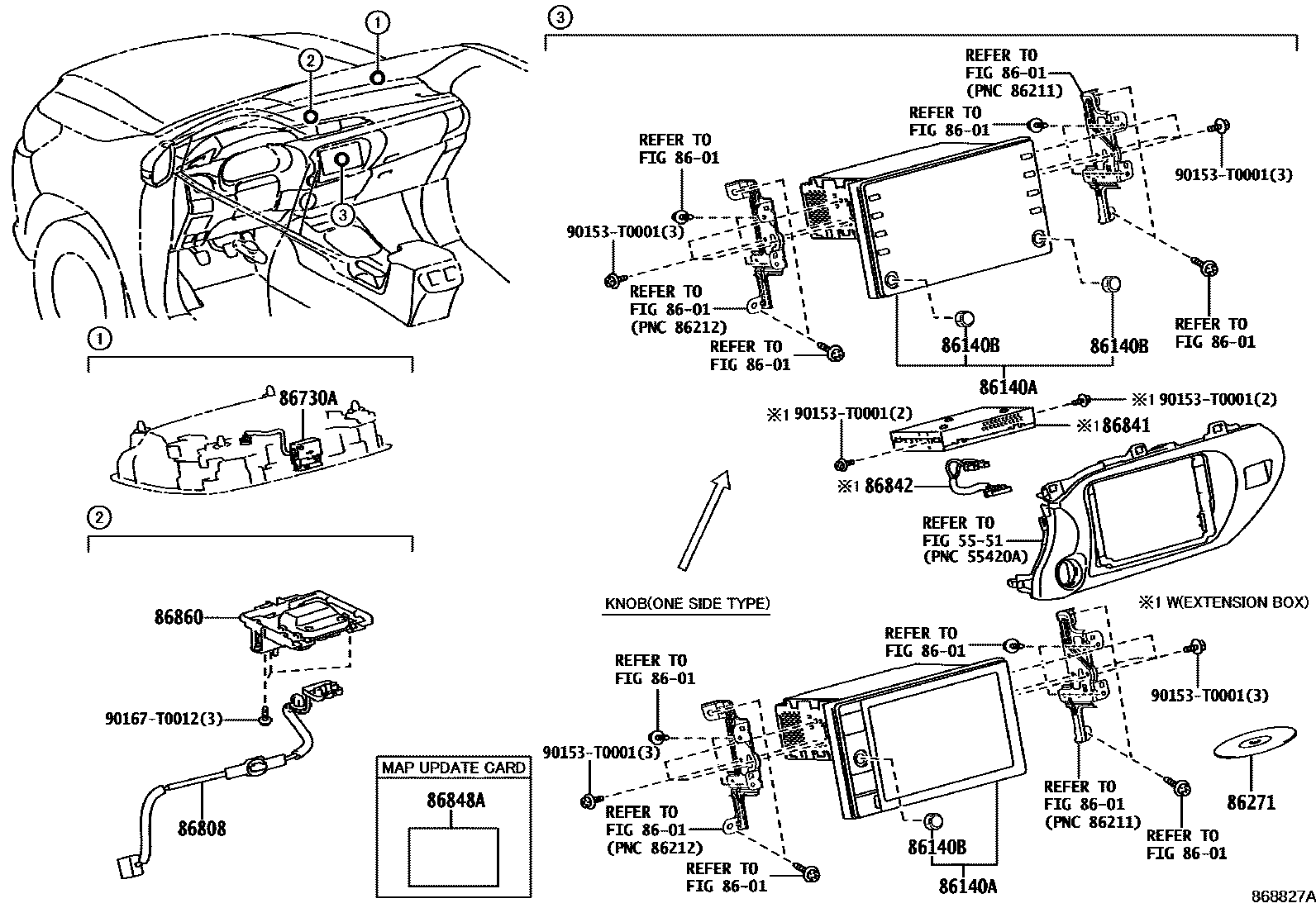

NAVIGATION & FRONT MONITOR DISPLAY
5551
8601
86140ARECEIVER ASSY, RADIO & DISPLAY
PANASONIC
DENSO TEN
PIONEER
DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
sub86140-0KU51
DENSO TEN
main86140-0KY31iGUN126..S..SA;GUN125..S..KEN;GUN125..XTR..SA;GUN125,LAN125..LHD..SCB..SA..CBU202201-202303
DENSO TEN
sub86140-0KY32
DENSO TEN
sub86140-0KZ91
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)
sub86140-0KN51
DENSO TEN,EXPORT FROM SA&AUDIO-*DA(8INCH) & *BT
sub86140-0KN71
PANASONIC,ASEAN GENERAL SPEC&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM)
PANASONIC,ASEAN GENERAL SPEC&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM)
DENSO TEN,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
PIONEER,AUDIO-AVN(8INCH) & *BT & DAB
DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
sub86140-0KY61
DENSO TEN,UAE SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGINGMARKET) & DAB
sub86140-0KY81
DENSO TEN,SUDAN SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
sub86140-F0281
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
ASEAN GENERAL SPEC&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM)
AUDIO-*DA(FOR EMERGING MARKET)
86271DISC, DISC PLAYER
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB
86730AMICROPHONE ASSY, TELEPHONE
main86730-20060iGUN125..ARL;GUN125..RHD..THP..(H,S);GUN112,120,121,122,126,13#,TGN121..ARL,TH202108-202207
AUDIO-*DA(FOR EMERGING MARKET)
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(8INCH) & *BT & DAB
DATA COMMUNICATION MODULE-WITH(G-DCM)
86841COMPUTER, NAVIGATION
AUDIO-AVN(8INCH) & *BT & DAB
86842WIRE, NAVIGATION, NO.1
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
86848ACARD, SERIAL NUMBER MAP UPDATE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB
86860ANTENNA ASSY, NAVIGATION
DATA COMMUNICATION MODULE-WITH(G-DCM)
90153T0001
main90153-T0001
90167T0012
main90167-T0012
13 parts on this diagram · 1 diagram in section
