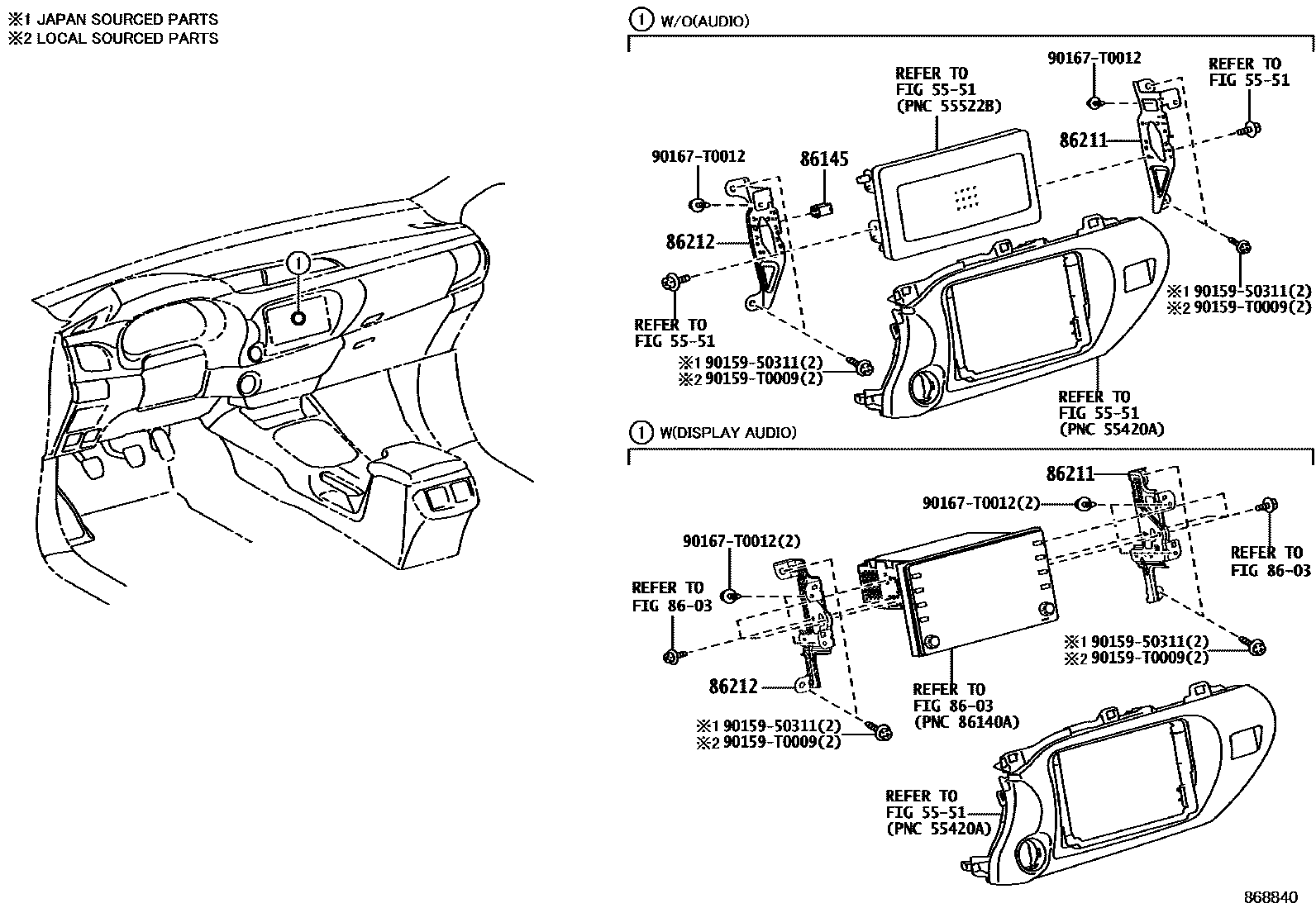

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RADIO RECEIVER 0002 1JACK ADAPTER

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86145CONNECTOR, ANTENNA MALE

main86145-52010iTGN136..BZAG;GUN126,TGN126..AGTP;GUN125,135..AGTP..CBU202108-202303

86211BRACKET, RADIO, NO.1

main86211-KK050iGUN125..MA202108-202303

main86211-KK100iGUN135..SCB..6F..S;GUN125..XTR..L..CBU;GUN125..LHD..L..SA..CBU;GUN125..6F..S..(KEN,SA);GUN126,LAN125,TGN136..(L,S)..SA..CBU202108-202303

main86211-KK100iGUN112,12#,135,TGN121..(L,S)..TH202108-202210

AUDIO-*DA(FOR EMERGING MARKET)

main86211-KK100iGUN112,12#,135,TGN121..(L,S)..TH202108-202207

AUDIO-*DA(FOR EMERGING MARKET) & DAB

main86211-KK130iGUN125..XTR..H;GUN125,135..S..TH202108-202207

AUDIO-*DA(8INCH) & *BT

main86211-KK130iGUN135..XTR..SA;GUN126,136..H..SA;GUN125,135..SCB..6FC..SA202108-202301

86212BRACKET, RADIO, NO.2

main86212-KK050iTGN136..BZAG;GUN126,TGN126..AGTP;GUN125,135..AGTP..CBU202108-202303

main86212-KK100iGUN125,135,TGN136..BZAG..CBU202108-202210

AUDIO-*DA(FOR EMERGING MARKET)

main86212-KK100iGUN135..SCB..6F..S;GUN125..XTR..L..CBU;GUN125..LHD..L..SA..CBU;GUN125..6F..S..(KEN,SA);GUN126,LAN125,TGN136..(L,S)..SA..CBU202108-202303

main86212-KK100iGUN112,12#,135,TGN121..(L,S)..TH202108-202207

AUDIO-*DA(FOR EMERGING MARKET) & DAB

main86212-KK130iGUN135..XTR..SA;GUN126,136..H..SA;GUN125,135..SCB..6FC..SA202108-202301

main86212-KK130iGUN125..XTR..H;GUN125,135..S..TH202108-202207

AUDIO-*DA(8INCH) & *BT

9015950311

main90159-50311

90159T0009

main90159-T0009

90167T0012

main90167-T0012

8 parts on this diagram · 2 diagrams in section
