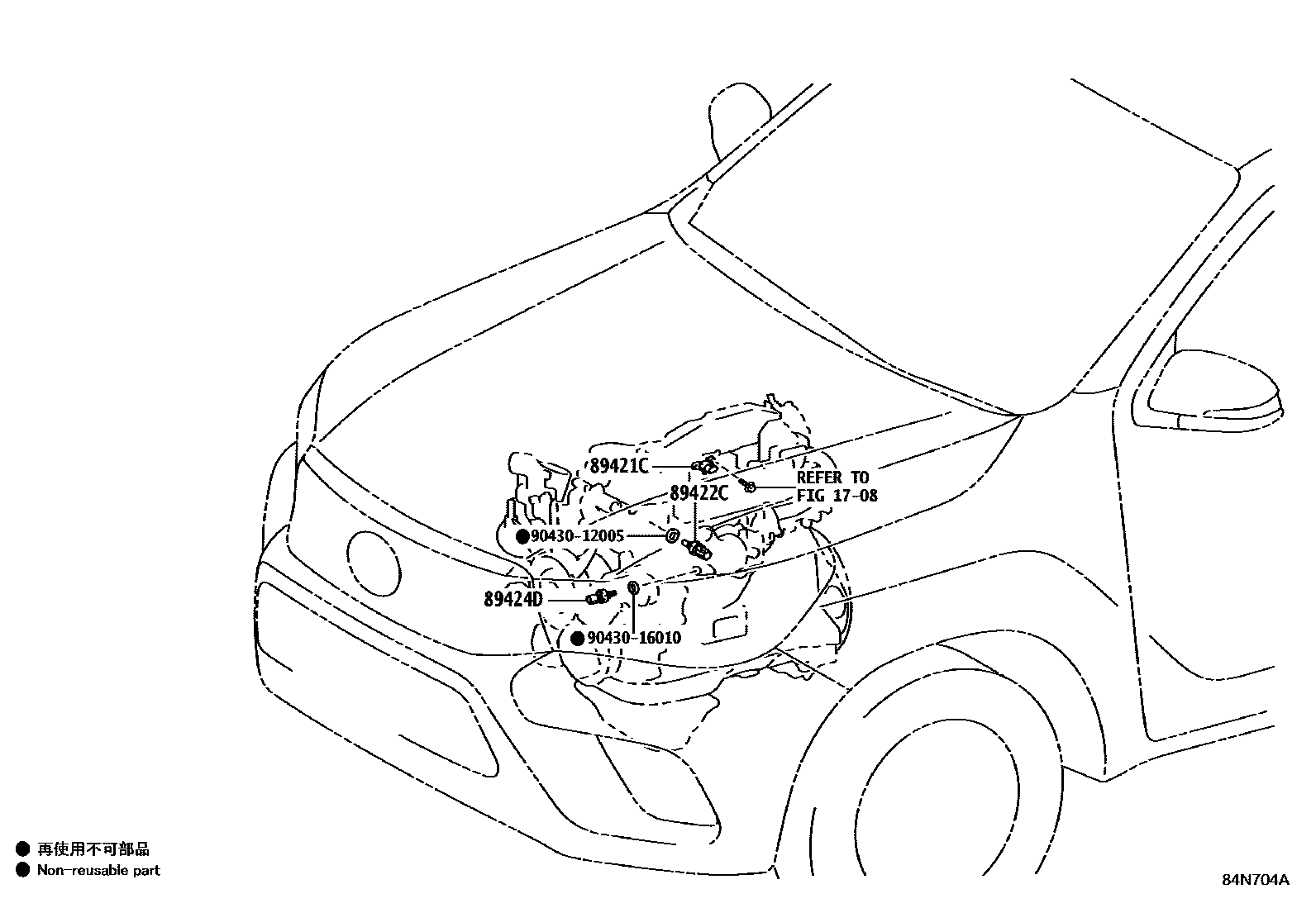

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1COWL 0004 1COWL

1708

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-12150iLAN125202109-202301

main89421-71030iGUN11#,12#,13#..THP202108-202207

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iGUN11#,12#,13#..THP202108-202207

89424DSENSOR, INLET AIR TEMPERATURE

main89424-12010iLAN125202109-202301

main89424-60010iGUN122,126..PKN202108-202301

9043012005

main90430-12005

9043016010

main90430-16010

6 parts on this diagram · 4 diagrams in section
