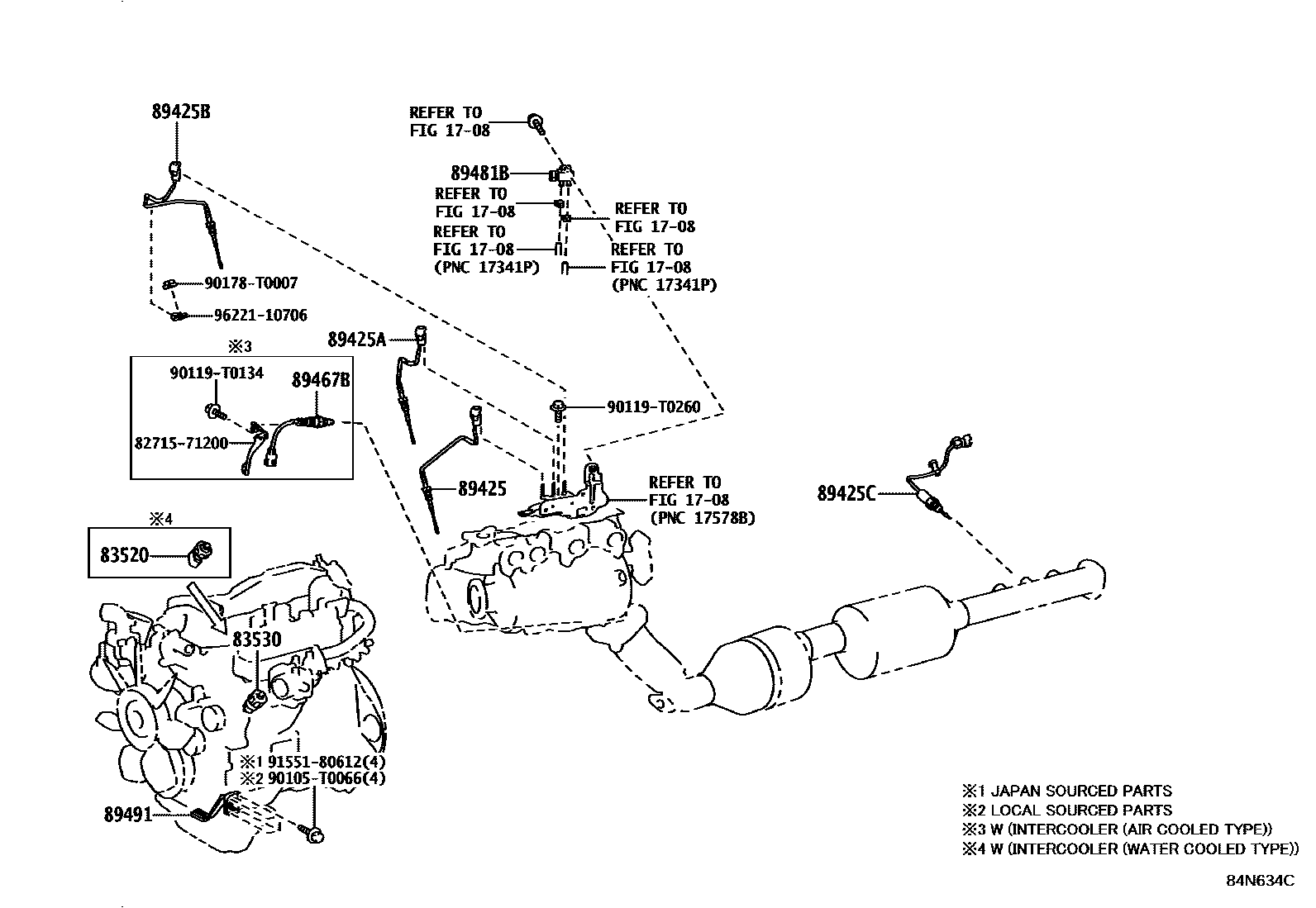

1708

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iGUN125..RHD..6F..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010supersedes 83530-60010iGUN122,125,126,13#..KEN,SA202108-202303

DENSO

main83530-28020iTGN120,121,136..PKN,SA202108-202301

DENSO

main83530-60010iGUN122..GCC..IV3202108-202207

SYRIA SPEC,YAZAKI

main83530-60020iTGN120,121,136..PKN,SA202108-202301

YAZAKI

main83530-60030iLAN125202109-202301

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070iGUN125..6FC..L;GUN126,13#..ARL;GUN125..6F..ARL202108-202207

OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71080iGUN125..6FC..L;GUN126,13#..ARL;GUN125..6F..ARL202108-202207

OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71090iGUN125..6FC..L;GUN126,13#..ARL;GUN125..6F..ARL202108-202207

OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

89467BSENSOR, AIR FUEL RATIO

main89467-71120iGUN125..6FC..L;GUN126,13#..ARL;GUN125..6F..ARL202108-202207

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main89467-71130iTGN11#,12#..THP202108-202207

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGUN125..AGTP;GUN126,135..BZAG202108-202210

89491SENSOR, ENGINE OIL LEVEL

main89491-26190iGUN122,125,126,13#..KEN,SA202108-202303

8271571200BRACKET,WIRING HARNESS CLAMP

main82715-71200

90105T0066

main90105-T0066

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90178T0007

main90178-T0007

9155180612

main91551-80612

9622110706

main96221-10706

17 parts on this diagram · 19 diagrams in section
