EPC Data

SEAT & SEAT TRACK

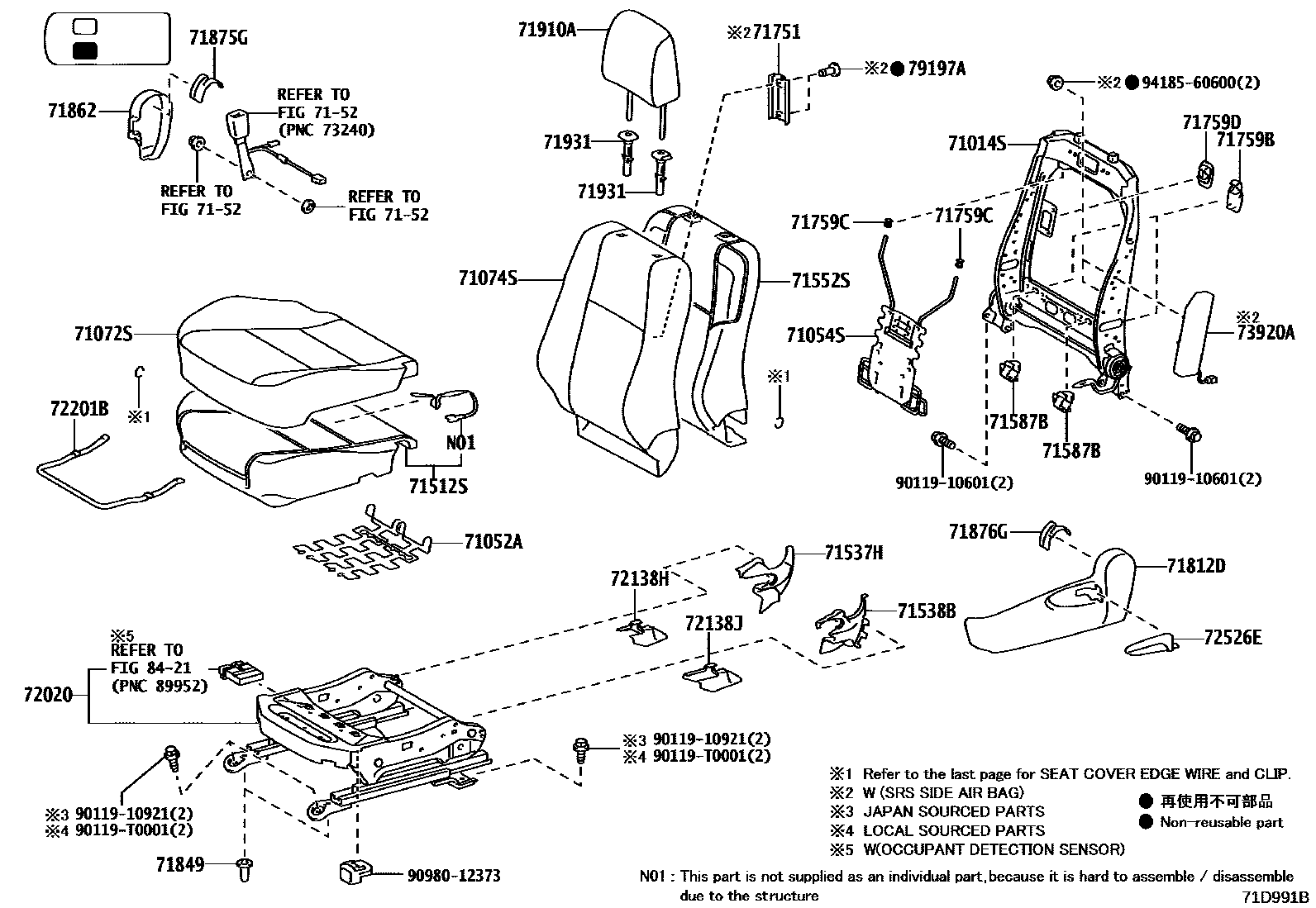

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-0K340i202108-202207
CENTRAL AND SOUTH AMERICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71014-0K460i202109-202301
main71014-0K360i202108-202207
COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-06070i202108-202207
COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71051-0D060i202109-202301
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71051-0K090i202111-202210
main71051-0K230i202108-202207
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-0K030i202108-202207
COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71053-0K040i202109-202301
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0KG50-C1i202108-202207
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71072-0KG60-C1i202108-202207
BLACK,TRIM2#
main71072-0KG70-C2i202108-202207
SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71072-0KG70-D2i202108-202207
MAROON,TRIM3#
main71072-0KJ00-C2i202108-202207
BLACK,TRIM2#
main71072-0KK60-C1i202109-202301
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71072-0KK90-C2i202109-202303
BLACK,TRIM2#
main71072-0KL20-C2i202109-202303
BLACK,TRIM2#
main71072-0KM50-C1i202111-202210
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71072-0KM61-C4i202111-202210
BLACK,TRIM2#
main71072-0KQ71-C2i202109-202301
BLACK/GRAY,TRIM2#
main71072-0KS20-C0i202110-202208
BLACK,TRIM2#
main71072-0KS90-C0i202202-202301
BLACK,TRIM2#
main71072-0KT30-C0i202108-202207
BLACK,TRIM2#
main71072-0KT62-C4i202108-202207
BLACK,TRIM2#
main71072-0KT70-C1i202108-202207
BLACK,TRIM2#
main71072-0KU70-C0supersedes 71072-0KK80-C1i202109-202301
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-0KX40-C2i202109-202301
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71072-0KX61-C1i202111-202210
BLACK,TRIM2#
main71072-F0040-C3i202108-202207
BLACK/GRAY,TRIM2#
sub71072-F0041
main71072-F0B90-C0supersedes 71072-0KQ80-C0i202108-202207
BLACK,TRIM2#
main71072-F0C40-C0i202108-202207
BLACK,TRIM2#
main71072-0KN60-C2i202108-202207
SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71072-0KT80-C0supersedes 71072-0KQ80-C0i202108-202207
BOLIVIA URUGUAY SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-0KU60-C0i202109-202301
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-0KX20-C0i202108-202207
ASEAN GENERAL SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-F0010-C1supersedes 71072-0KQ80-C0i202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-F0170-C3i202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK/GRAY,TRIM2#
sub71072-F0171
main71072-F0B60-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH),BLACK,TRIM2#
main71072-F0B70-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-F0B80-C0supersedes 71072-0KQ80-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71072-F0C30-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP320-C0i202108-202207
MLM ADVENTURE PACKAGE,BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0K430-C5i202108-202207
BLACK,TRIM2#
main71074-0K460-C3i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71074-0K460-D3supersedes 71074-0KP20-D1i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),MAROON,TRIM3#
main71074-0K710-C2i202109-202301
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71074-0K760-C4i202109-202303
BLACK,TRIM2#
main71074-0K800-C3i202109-202303
BLACK,TRIM2#
main71074-0K810-C5i202109-202301
BLACK,TRIM2#
main71074-0K850-C2supersedes 71074-0KD40-C1i202109-202301
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71074-0KB00-C3i202111-202210
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71074-0KB10-C4i202111-202210
BLACK,TRIM2#
main71074-0KD51-C4supersedes 71074-0K820-C5i202109-202301
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71074-0KG10-C4i202108-202207
BLACK,TRIM2#
main71074-0KK70-C2i202110-202208
BLACK,TRIM2#
main71074-0KL80-C1i202202-202301
BLACK,TRIM2#
main71074-0KM90-C1i202111-202210
BLACK,TRIM2#
main71074-0KP10-C1i202108-202207
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71074-0KP20-C1i202108-202207
SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71074-0KT60-C0i202108-202207
BLACK,TRIM2#
main71074-0KT70-C1i202108-202207
BLACK,TRIM2#
main71074-0KT80-C1i202108-202207
BLACK,TRIM2#
main71074-0KT90-C2i202108-202207
BLACK/GRAY,TRIM2#
main71074-0KY10-C0i202108-202207
BLACK/GRAY,TRIM2#
main71074-0KY40-C0supersedes 71074-0KR10-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK/GRAY,TRIM2#
main71074-0KY90-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-NATURAL LEATHER&SRSAIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK/GRAY,TRIM2#
main71074-0K240-C4i202108-202207
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71074-0K400-C3i202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71074-0K480-C3i202108-202207
SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71074-0K591-24supersedes 71074-0KR10-C0i202108-202207
BOLIVIA URUGUAY SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK/GRAY,TRIM2#
main71074-0KG31-C7supersedes 71074-0KR10-C0i202108-202207
COSTA RICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71074-0KM30-C1i202109-202301
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71074-0KM80-C1i202108-202207
ASEAN GENERAL SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71074-0KR20-C0supersedes 71074-0KR10-C0i202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71074-0KY20-C0i202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK/GRAY,TRIM2#
main71074-0KY30-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#
main71074-0KY80-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71074-YP360-C0i202108-202207
MLM ADVENTURE PACKAGE,BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-0K050i202108-202207
main71502-0K080i202109-202303
main71502-0K100i202109-202303
main71502-0K190i202202-202301
main71502-0K231i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main71502-0K251i202109-202301
SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71502-0K270i202110-202208
main71502-0K460i202108-202207
main71512-0K081i202108-202207
COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71512-0K170i202109-202301
main71512-0K240i202111-202210
main71512-0K571i202108-202207
CENTRAL AND SOUTH AMERICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71512-0KA90supersedes 71512-0K580i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)
7152
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-02170-C0i202108-202207
BOLIVIA URUGUAY SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71537-02200-C0i202109-202303
BLACK,TRIM2#
main71537-06130-C0i202108-202210
BLACK,TRIM2#
main71537-0D400i202108-202207
MLM ADVENTURE PACKAGE
main71537-02300-C0i202108-202207
BOLIVIA URUGUAY SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71537-0D400i202108-202207
main71538-02110-C0i202109-202303
BLACK,TRIM2#
main71538-02120-C0i202108-202207
COSTA RICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71538-06140-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71538-02230-C0i202108-202207
BOLIVIA URUGUAY SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0K120i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main71552-0K140i202108-202207
main71552-0K320i202109-202303
main71552-0K330i202109-202301
SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0K340i202109-202303
main71552-0K350i202109-202301
main71552-0K490i202111-202210
main71552-0KA20i202202-202301
main71552-0KA70i202111-202210
main71552-0KC20supersedes 71552-0K360i202109-202301
SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0KC40i202110-202208
main71552-0KD80i202108-202207
main71552-0KD90i202108-202207
main71552-0KE00i202108-202207
main71552-0KG40i202108-202207
main71552-0KG70supersedes 71552-0KG20i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0K130i202108-202207
ASEAN GENERAL SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0K160supersedes 71552-0KG20i202108-202207
CENTRAL AND SOUTH AMERICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0K200supersedes 71552-0KG20i202108-202207
COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0KG30supersedes 71552-0KG20i202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0KG50i202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0KG60i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-NATURAL LEATHER
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-0K030×4i202108-202207
COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71587-0K040×4i202109-202301
71751HANGER, SEAT COVER
main71751-0K070×2i202108-202207
COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
71759BHOOK, FRONT SEATBACK
main71759-0K140×4i202109-202301
71759CHOOK, FRONT SEATBACK, NO.1
main71759-0K060×4i202108-202207
COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71759-0K080×4i202109-202301
71759DHOOK, FRONT SEATBACK, NO.2
main71759-0K070-C0×2i202108-202207
BLACK,TRIM2#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-06390-C0i202108-202210
BLACK,TRIM2#
main71812-0D560-C0i202108-202207
BLACK,TRIM2#
main71812-0D570-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71812-0D590-C0i202108-202203
BLACK,TRIM2#
main71812-0D660-C1i202204-202207
BLACK,TRIM2#
main71812-0K100-C0i202108-202207
COSTA RICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71812-0K130-C0i202108-202207
BLACK,TRIM2#
main71812-0K150-C0i202109-202301
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71812-0K300-C0i202109-202301
BLACK,TRIM2#
main71812-0K330-C0i202109-202303
BLACK,TRIM2#
main71812-0K470-C0i202109-202303
BLACK,TRIM2#
main71812-0D580-C0i202108-202203
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71812-0D650-C1i202204-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71812-0K110-C0i202108-202207
BOLIVIA URUGUAY SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-02040×2i202109-202303
main71848-47010×2i202108-202207
COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-06270-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71862-0D440-C0i202108-202207
BLACK,TRIM2#
main71862-0D450-C0i202108-202207
BLACK,TRIM2#
main71862-0K120-C0i202108-202208
BLACK,TRIM2#
main71862-0K140-C0i202109-202301
BLACK,TRIM2#
main71862-0K240-C0i202108-202207
COSTA RICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71862-0K270-C0i202109-202303
BLACK,TRIM2#
main71862-0K330-C0i202109-202303
BLACK,TRIM2#
main71862-0K250-C0i202108-202207
BOLIVIA URUGUAY SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-06450-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71875-0K120-C0i202108-202207
BLACK,TRIM2#
main71875-0K160-C0i202109-202301
BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-06470-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71876-0K120-C0i202108-202207
BLACK,TRIM2#
main71876-0K160-C0i202109-202301
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-0KL30-C0×2i202109-202301
BLACK,TRIM2#
main71910-0KL40-C0×2i202109-202301
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71910-0KL90-C0×2i202108-202207
COSTA RICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71910-0KM00-C0×2i202108-202207
BLACK,TRIM2#
main71910-0KN00-C0×2i202108-202207
BLACK,TRIM2#
main71910-0KN10-C0×2supersedes 71910-0KM90-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71910-0KN30-C1×2i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-NATURAL LEATHER&SRSAIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK/GRAY,TRIM2#
main71910-0KM10-C0×2supersedes 71910-0KM90-C0i202108-202207
BOLIVIA URUGUAY SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-0D140-C1×2i202108-202207
W(LOCK),BLACK,TRIM2#
main71930-0K050-C1×2i202108-202207
W(LOCK),CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71930-47050-C5×2i202109-202301
W(LOCK),BLACK,TRIM2#
main71931-0D150-C1×2i202108-202207
W/O(LOCK),MLM ADVENTURE PACKAGE,BLACK,TRIM2#
main71931-0K040-C1×2i202108-202207
W/O(LOCK),COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71931-47030-C4×2i202109-202301
W/O(LOCK),BLACK,TRIM2#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-0K060i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main72020-0K140i202109-202303
main72020-0K180i202111-202210
main72020-0K400i202108-202207
main72020-0K070i202108-202207
COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
72138COVER, SEAT TRACK, OUTER LH
main72125-0D120i202108-202207
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
main72158-KK010-C0i202108-202207
BOLIVIA URUGUAY SPEC,BLACK,TRIM2#
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72137-KK010-C0i202108-202207
BOLIVIA URUGUAY SPEC,BLACK,TRIM2#
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-0D160i202108-202207
COSTA RICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main72211-0K120i202109-202303
main72211-0K200i202108-202207
72526EHANDLE, RECLINING ADJUSTER RELEASE, LH
main72525-0K010-C0i202108-202301
BLACK,TRIM2#
main72526-0D260-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main72526-0D360-C0i202108-202207
BLACK,TRIM2#
main72526-06130-C0i202108-202207
BOLIVIA URUGUAY SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0K050i202111-202210
sub73920-0K190
main73920-0K070i202109-202301
SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main73920-0K170i202108-202207
main73920-0K210i202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
79197ARIVET
main79197-0K010×4i202108-202210
8421
9011910601
main90119-10601
9011910921
main90119-10921
90119T0001
main90119-T0001
9098012373
main90980-12373
9418560600
main94185-60600

36 parts on this diagram · 17 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
