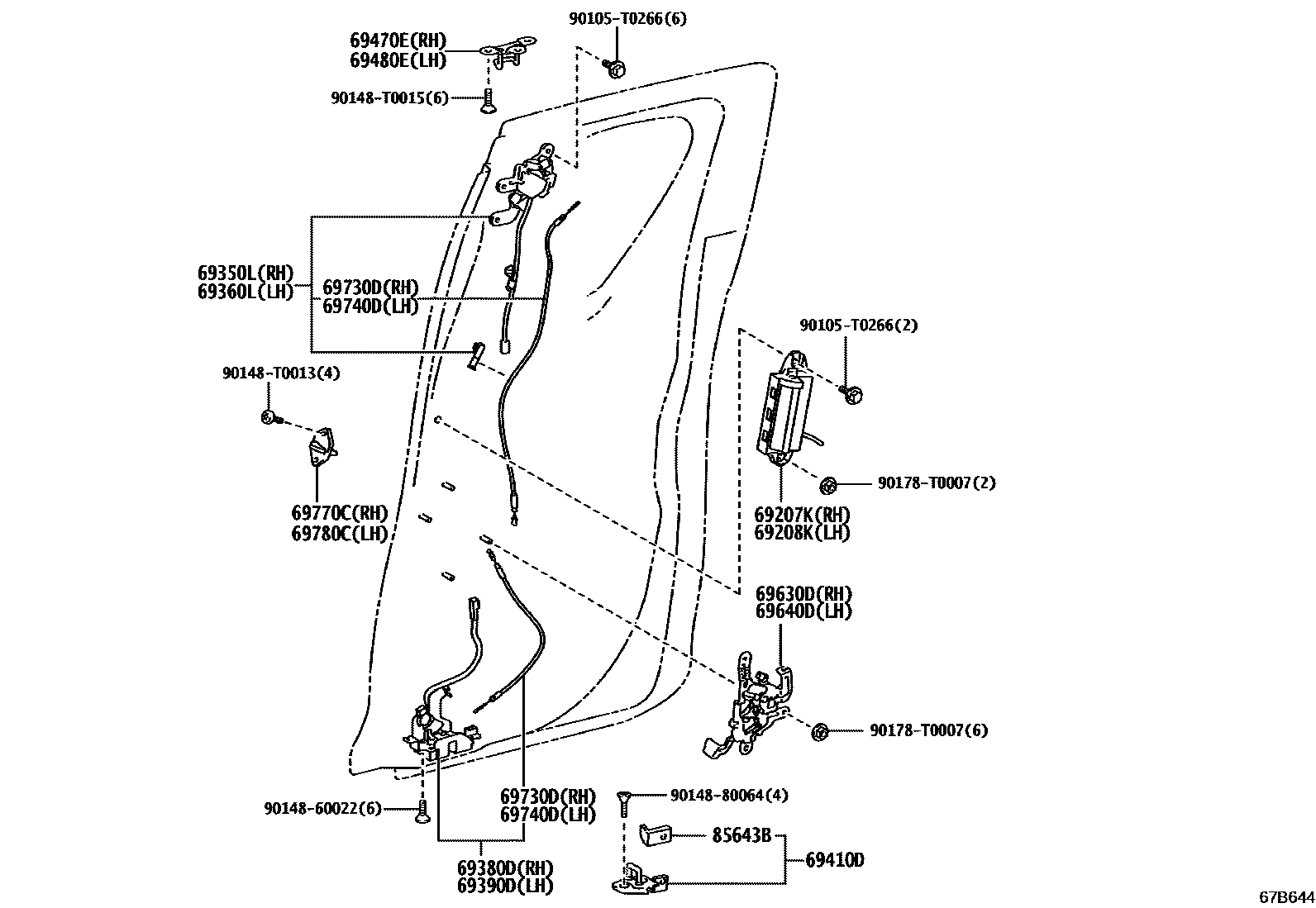

REAR DOOR LOCK & HANDLE

69207KHANDLE SUB-ASSY, ACCESS PANEL INSIDE, RH

main69207-0K020-C0iGUN120,122,125,126,13#..XTR..THP202108-202207

BLACK,TRIM2#

69208KHANDLE SUB-ASSY, ACCESS PANEL INSIDE, LH

main69208-0K020-C0iGUN120,122,125,126,13#..XTR..THP202108-202207

BLACK,TRIM2#

69350LLOCK ASSY, ACCESS PANEL, UPPER RH

main69350-0K181iGUN120,122,125,126,13#..XTR..THP202108-202207

69360LLOCK ASSY, ACCESS PANEL, UPPER LH

main69360-0K021iGUN120,122,125,126,13#..XTR..THP202108-202207

69380DLOCK ASSY, ACCESS PANEL, LOWER RH

main69380-0K020iGUN120,122,125,126,13#..XTR..THP202108-202207

69390DLOCK ASSY, ACCESS PANEL, LOWER LH

main69390-0K020iGUN120,122,125,126,13#..XTR..THP202108-202207

69410DPLATE ASSY, ACCESS PANEL LOCK STRIKER

main69410-0K100iGUN120,122,125,126,13#..XTR..THP202108-202207

RH

main69420-0K020iGUN120,122,125,126,13#..XTR..THP202108-202207

LH

69470ESTRIKER ASSY, ACCESS PANEL UPPER LOCK, RH

main69470-0K010iGUN120,122,125,126,13#..XTR..THP202108-202207

69480ESTRIKER ASSY, ACCESS PANEL UPPER LOCK, LH

main69480-0K010iGUN120,122,125,126,13#..XTR..THP202108-202207

69630DCONTROL ASSY, ACCESS PANEL LOCK REMOTE, RH

main69630-0K020iGUN120,122,125,126,13#..XTR..THP202108-202207

69640DCONTROL ASSY, ACCESS PANEL LOCK REMOTE, LH

main69640-0K020iGUN120,122,125,126,13#..XTR..THP202108-202207

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69703-0K020iGUN125,126,13#..XTR..SA202108-202301

LOWER

main69704-0K020iGUN125,126,13#..XTR..SA202108-202301

UPPER

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69703-0K020iGUN125,126,13#..XTR..SA202108-202301

LOWER

main69704-0K020iGUN125,126,13#..XTR..SA202108-202301

UPPER

69770CLEVER ASSY, ACCESS PANEL LOCK CANCEL, RH

main69770-0K230iGUN120,122,125,126,13#..XTR..THP202108-202207

69780CLEVER ASSY, ACCESS PANEL LOCK CANCEL, LH

main69780-0K150iGUN120,122,125,126,13#..XTR..THP202108-202207

85643BCUSHION, STOPPER

main85643-0K010iGUN120,122,125,126,13#..XTR..THP202108-202207

RH

main85643-0K020iGUN125,126,13#..XTR..SA202108-202301

LH

90105T0266

main90105-T0266

9014860022

main90148-60022

9014880064

main90148-80064

90148T0013

main90148-T0013

90148T0015

main90148-T0015

90178T0007

main90178-T0007

22 parts on this diagram · 1 diagram in section
