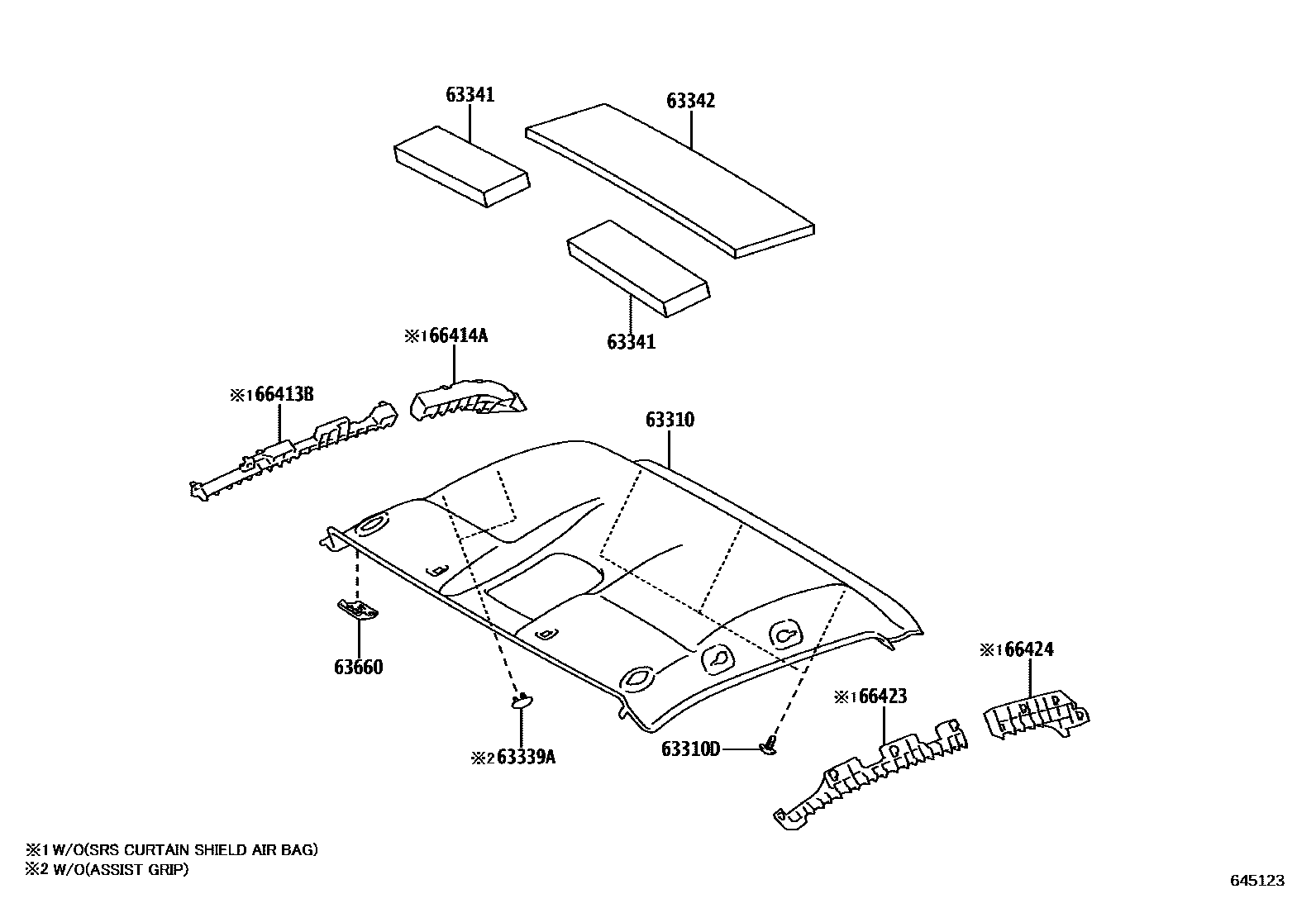

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
main63310-0KB20-B0supersedes 63310-0KA40-B0iGUN135..AGTP..CBU;GUN126,TGN126..AGTP;GUN125,TGN136..BZAG..CBU202111-202210
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
main63310-F0110-B0iGUN125..LHD..SA..IV3;GUN122,TGN121..LHD..SA;GUN122,LAN125..SA..IV3;GUN125,135..RHD..SCB..L..(KEN,SA)202109-202303
LT. GRAY,TRIM2#
main63310-F0120-B0iGUN125..S..KEN;GUN122..RHD..SA..CBU;GUN126,TGN120..(L,S)..SA;GUN125,LAN125..LHD..SCB..SA..CBU202109-202303
LT. GRAY,TRIM2#
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#
AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM20
LT. GRAY,TRIM20
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
main63310-F0410-B0iGUN125..SCB..H;GUN125..6FC..GEN;GUN112,12#,13#,TGN110,121..SCB..(ARL,IDN,TH)202108-202207
LT. GRAY,TRIM2#,3#
LT. GRAY,TRIM20
BLACK,TRIM21
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT. GRAY,TRIM2#
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#
AUDIO-*DA(8INCH) & *BT,BLACK,TRIM21
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM20
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM21
AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,3#
63310DCLIP, ROOF HEADLINING
LT.GRAY,TRIM2#,3#
BLACK,TRIM21
63339ACOVER, ROOF HEADLINING SERVICE HOLE
LT.GRAY,TRIM2#,3#
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63660COVER ASSY, ROOF HEADLINING TRIM, NO.1
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT.GRAY,TRIM2#
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM2#
BLACK,TRIM21
66413BSPACER, SIDE RAIL, FRONT RH
66414ASPACER, SIDE RAIL, REAR RH
66423SPACER, SIDE RAIL, FRONT LH
66424SPACER, SIDE RAIL, REAR LH
10 parts on this diagram · 2 diagrams in section
