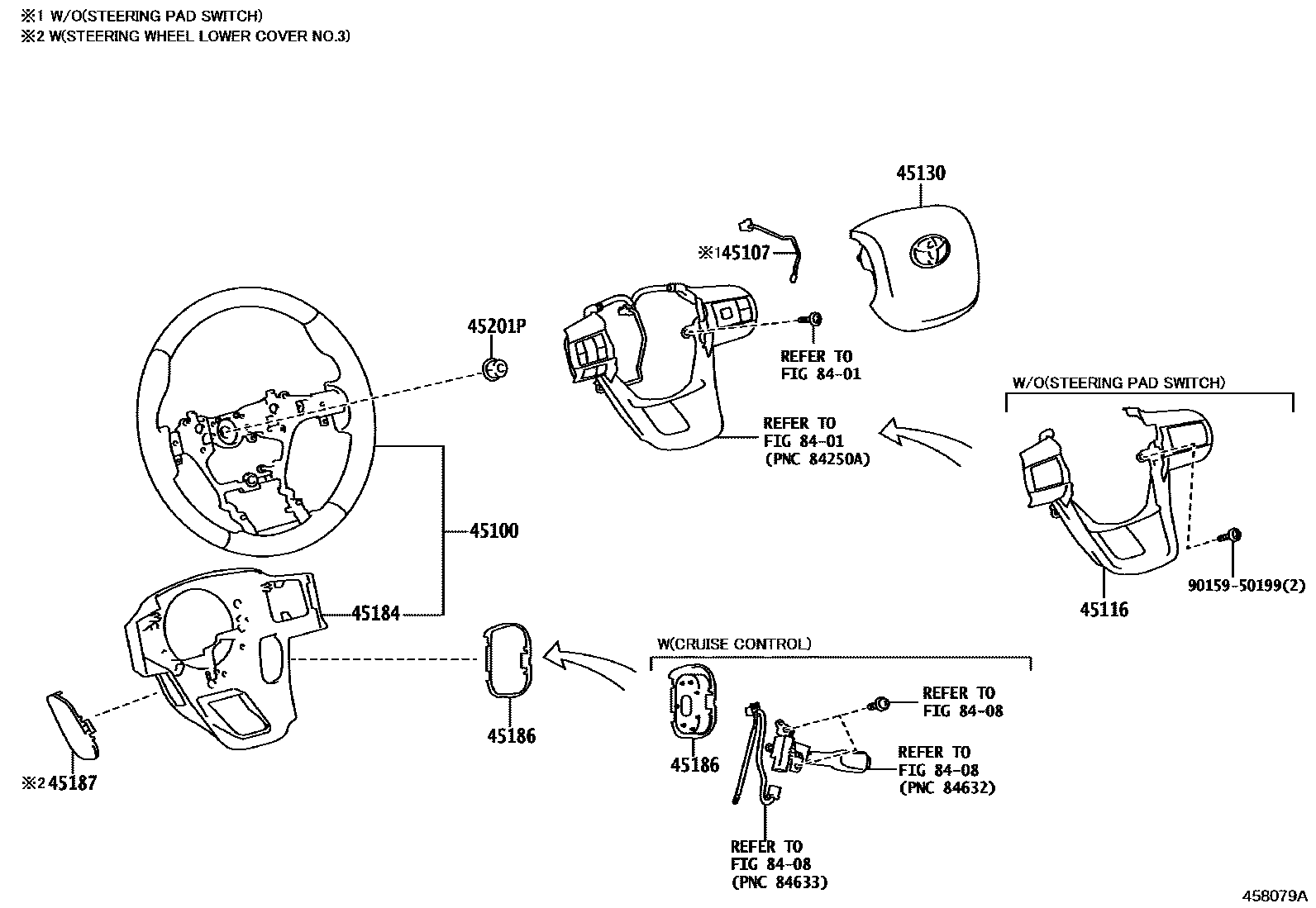

STEERING WHEEL
45100WHEEL ASSY, STEERING
main45100-0K250-C0iGUN122,136..S..(ARL,GEN);GUN125,126..THP..(L,S)..(ARL,GEN,IDN,LA,TH);GUN112,120,121,122,135,TGN110,121,126..THP..L..(ARL,GEN,IDN,LA,PH,TH)202108-202207
3-SPOKE,URETHANE,STEERING WHEEL-URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY NO.205,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
45107WIRE SUB-ASSY, HORN BUTTON
45116ORNAMENT, STEERING WHEEL, NO.1
STEERING SWITCH-WITHOUT,BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITHOUT,BLACK,TRIM2#
45130BUTTON ASSY, HORN
BLACK,TRIM2#
BLACK,TRIM2#
MLM PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM2#
CRUISE CONTROL-WITH,BLACK,TRIM2#
main45186-0K150-C0iGUN125..LHD..L..SA;GUN125..XTR..S..SA;GUN125..RHD..(KEN,SA);GUN122,126,135,LAN125,TGN120,136..(L,S)..(KEN,SA)202109-202303
BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM2#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM2#
45201PNUT, STEERING WHEEL SET
8401
8408
9015950199
main90159-50199
11 parts on this diagram · 1 diagram in section
