MIRROR

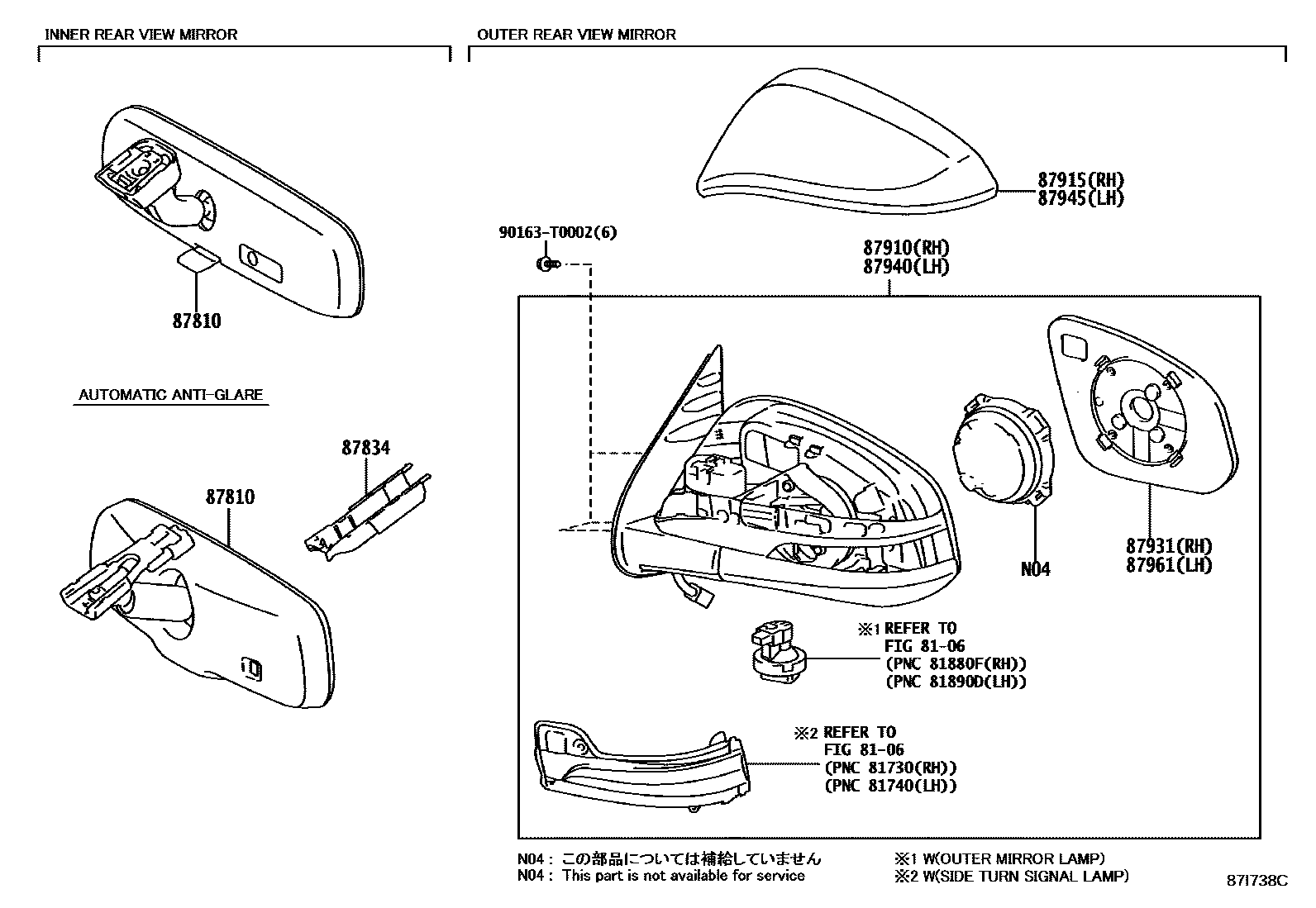

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
87810MIRROR ASSY, INNER REAR VIEW
main87810-06041i202006-202111
main87810-0WG30i202006-202108
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0K010i202006-202108
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-0K741i202006-202111
NO PAINT REQ.
main87910-0K751i202011-202110
NO PAINT REQ.
main87910-0K792i202012-202110
NO PAINT REQ.
main87910-0KC31i202006-202201
NO PAINT REQ.
main87910-0KC41i202006-202109
NO PAINT REQ.
main87910-0KC61i202006-202012
NO PAINT REQ.
main87910-0KD02supersedes 87910-0KC51i202006-202108
NO PAINT REQ.; NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&HIGH MOUNT STOPLAMP-WITH&OUTSIDE REAR VIEW MIRROR- *RCM(BLACK) & W(*SITL) & W(LOGO LAMP); NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR- *RCM(*CR) & W(*SITL) & W(LOGO LAMP)
main87910-0KD12i202006-202008
NO PAINT REQ.; NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL)
main87910-0KD13i202009-202106
NO PAINT REQ.; NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&OUTSIDE REARVIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL)
main87910-0KD22i202006-202008
NO PAINT REQ.; NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
main87910-0KD23i202009-202106
NO PAINT REQ.; NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
main87910-0KD80supersedes 87910-0KF81i202011-202110
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK)
main87910-0KE11i202011-202110
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
main87910-0KF91i202011-202110
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main87910-0KG72i202106-202109
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main87910-0KG73i202009-202106
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main87910-0KJ31i202009-202110
NO PAINT REQ.
main87910-0K722i202006-202008
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
main87910-0K723i202009-202106
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
main87910-0K810i202006-202008
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
main87910-0K811i202009-202106
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
main87910-0KE00i202011-202110
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK); NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main87910-0KE42i202006-202008
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
main87910-0KE43i202009-202106
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&OUTSIDE REARVIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
main87910-0KE71i202011-202110
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
main87910-0KF81i202011-202110
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & WITH(*SITL)
main87910-0KG22i202006-202108
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & WITH(*SITL)
main87910-0KG92i202009-202109
NO PAINT REQ.,EXPORT FROM SOUTH AFRICA&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & WITH(*SITL)&AUDIO-*DA(FOR EMERGING MARKET); NO PAINT REQ.,EXPORT FROM SOUTH AFRICA&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & WITH(*SITL)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER); NO PAINT REQ.,POWER WINDOW-WITHOUT
main87910-0KL10i202006-202108
NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&HIGH MOUNT STOPLAMP-WITH&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
87915COVER, OUTER MIRROR, RH
main87915-0K390i202006-202201
NO PAINT REQ.,BLACK
main87915-0K400i202012-202301
PLATED,*CR
main87915-0K440i202011-202110
NO PAINT REQ.,BLACK; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK),BLACK; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK),BLACK
main87915-0K450i202011-202110
PLATED,*CR; PLATED,OUTSIDE REAR VIEW MIRROR-*551(*CR),*CR; PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL),*CR
main87915-0K600i202006-202108
PLATED,*CR
main87915-0K630i202009-202111
PLATED,BLACK
main87915-0K916i202009-202101
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA),BLACK; PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL),BLACK; PAINT REQ.,TIRE & DISC WHEEL-265/60R18, ALUMINUM,BLACK
main87915-0K917i202009-202010
PAINT REQ.,TIRE & DISC WHEEL-265/60R18, ALUMINUM,BLACK
main87915-0K918i202101-202108
PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR- *RCM(BLACK) & W(*SITL)& W(LOGO LAMP); PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) &W(*MIH); PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL)
87931OUTER MIRROR, RH
main87931-0K750i202011-202110
main87931-0KC60i202006-202111
main87931-0KD00i202006-202108
main87931-0KF80i202011-202110
OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
main87931-0KJ30i202009-202110
main87931-0KC80i202006-202108
MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-0KA91i202006-202201
NO PAINT REQ.
main87940-0KB01i202006-202109
NO PAINT REQ.
main87940-0KB21i202006-202111
NO PAINT REQ.
main87940-0KB62supersedes 87940-0KB11i202006-202108
NO PAINT REQ.; NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&HIGH MOUNT STOPLAMP-WITH&OUTSIDE REAR VIEW MIRROR- *RCM(BLACK) & W(*SITL) & W(LOGO LAMP); NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR- *RCM(*CR) & W(*SITL) & W(LOGO LAMP)
main87940-0KB72i202006-202008
NO PAINT REQ.; NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL)
main87940-0KB73i202009-202106
NO PAINT REQ.; NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&OUTSIDE REARVIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL)
main87940-0KB82i202106-202301
NO PAINT REQ.; NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL)
main87940-0KB83i202009-202106
NO PAINT REQ.; NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
main87940-0KC30supersedes 87940-0KF41i202011-202110
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK)
main87940-0KC61i202011-202110
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
main87940-0KE41i202006-202111
NO PAINT REQ.
main87940-0KE51i202011-202110
NO PAINT REQ.
main87940-0KE92i202012-202110
NO PAINT REQ.
main87940-0KF51i202011-202110
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main87940-0KG42i202106-202109
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main87940-0KG43i202009-202106
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main87940-0KJ01i202009-202110
NO PAINT REQ.
main87940-0K702i202006-202008
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
main87940-0K703i202009-202106
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
main87940-0KC50i202011-202110
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK); NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main87940-0KC92i202106-202109
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&OUTSIDE REARVIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
main87940-0KC93i202009-202106
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&OUTSIDE REARVIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA); NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
main87940-0KD21i202011-202110
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
main87940-0KF41i202011-202110
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & WITH(*SITL)
main87940-0KF60i202006-202008
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
main87940-0KF61i202009-202106
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
main87940-0KF92i202006-202108
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & WITH(*SITL)
main87940-0KG62i202009-202109
NO PAINT REQ.,EXPORT FROM SOUTH AFRICA&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & WITH(*SITL)&AUDIO-*DA(FOR EMERGING MARKET); NO PAINT REQ.,EXPORT FROM SOUTH AFRICA&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & WITH(*SITL)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER); NO PAINT REQ.,POWER WINDOW-WITHOUT
main87940-0KL10i202006-202108
NO PAINT REQ.,MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&HIGH MOUNT STOPLAMP-WITH&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
87945COVER, OUTER MIRROR, LH
main87945-0K390i202006-202201
NO PAINT REQ.,BLACK
main87945-0K400i202006-202201
PLATED,*CR
main87945-0K440i202011-202110
NO PAINT REQ.,BLACK; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK),BLACK; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK),BLACK
main87945-0K450i202011-202110
PLATED,*CR; PLATED,OUTSIDE REAR VIEW MIRROR-*551(*CR),*CR; PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL),*CR
main87945-0K600i202006-202108
PLATED,*CR
main87945-0K630i202009-202111
PLATED,BLACK
main87945-0K916i202101-202109
PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) &W(*FLA),BLACK; PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL),BLACK; PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,BLACK
main87945-0K917i202009-202010
PAINT REQ.,TIRE & DISC WHEEL-265/60R18, ALUMINUM,BLACK
main87945-0K918i202101-202108
PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR- *RCM(BLACK) & W(*SITL)& W(LOGO LAMP); PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) &W(*MIH); PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & WITH(*SITL)
87961MIRROR OUTER, LH
main87961-0KB20i202006-202111
main87961-0KB60i202006-202108
main87961-0KE50i202011-202110
main87961-0KF40i202011-202110
OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
main87961-0KJ00i202009-202110
main87961-0KB40i202006-202108
MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
90163T0002
main90163-T0002

10 parts on this diagram · 1 diagram in section
