E
EPC Data

ARMREST & VISOR

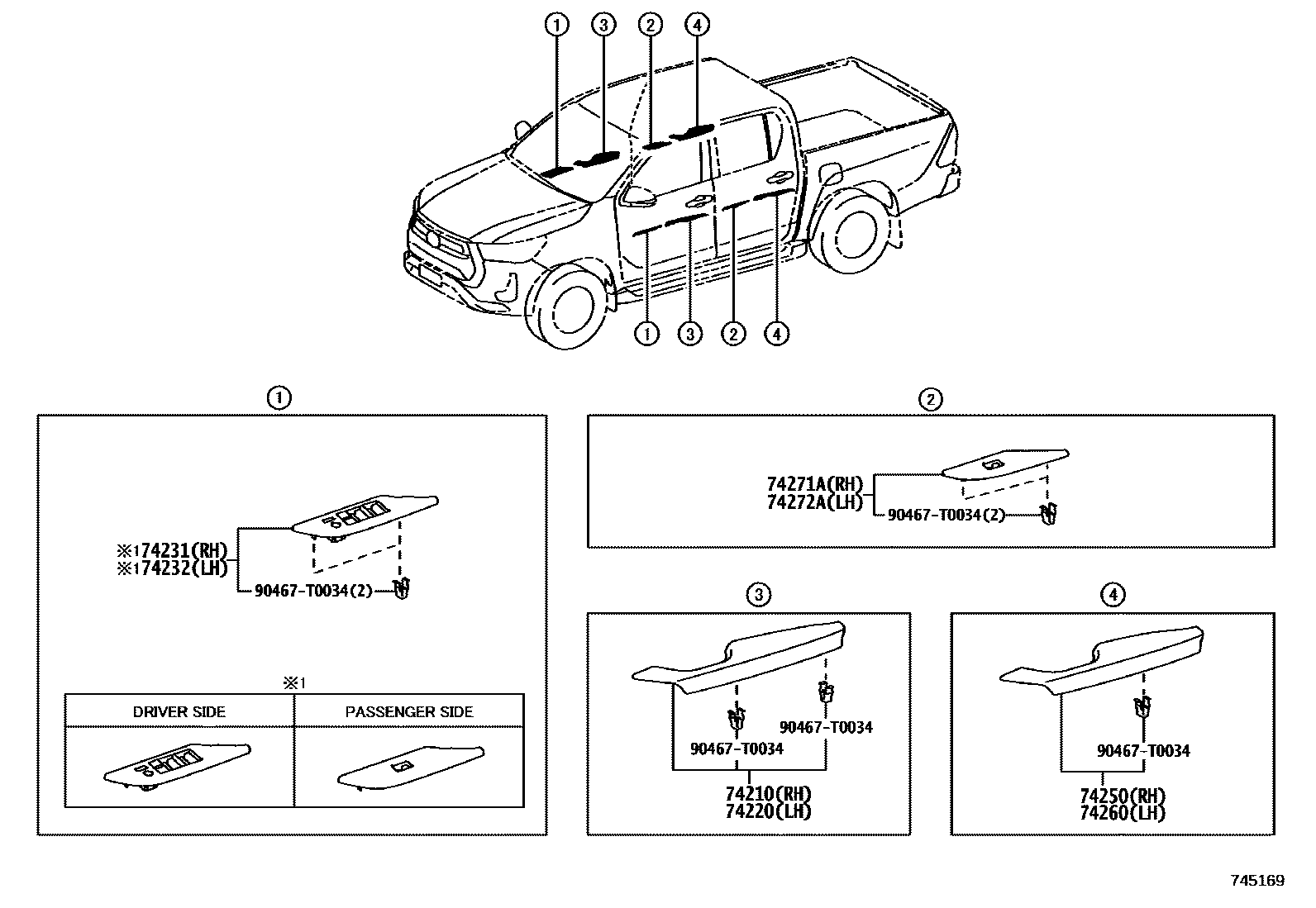

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-0K010-C0i202006-202201
BLACK,TRIM2#
main74210-0K020-C2i202006-202110
BLACK,TRIM2#
main74210-0K020-D1supersedes 74210-0K010-D0i202006-202108
MAROON,TRIM3#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
main74210-0K050-C0i202006-202201
BLACK,TRIM2#
main74210-0K060-C3i202006-202201
BLACK,TRIM2#
main74210-0K060-D2supersedes 74210-0K050-D0i202006-202108
MAROON,TRIM3#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
main74210-0K080-C2i202006-202301
BLACK,TRIM2#
main74210-0K140-C0i202011-202110
BLACK,TRIM2#
main74210-0K160-C0i202011-202110
BLACK,TRIM2#
main74210-0K170-C2i202011-202110
BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74210-0K190-C2i202011-202110
BLACK,TRIM2#; DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74210-0K230-C0i202009-202111
BLACK,TRIM2#
main74210-0K240-C2i202009-202109
BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74210-0K270-C3supersedes 74210-0K260-C0i202009-202111
BLACK,TRIM2#
main74210-0K290-C2i202009-202111
BLACK,TRIM2#
main74210-0K440-C0i202006-202108
BLACK,TRIM2#; DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
main74210-0K150-C1i202011-202110
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74210-0K260-C0i202009-202111
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT,BLACK,TRIM2#
main74210-0K450-C0i202009-202109
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#; DOOR TRIM-LEATHER(MLM),BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-0K010-C0i202006-202201
BLACK,TRIM2#
main74220-0K020-C2i202006-202110
BLACK,TRIM2#
main74220-0K020-D1supersedes 74220-0K010-D0i202006-202108
MAROON,TRIM3#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
main74220-0K050-C0i202006-202201
BLACK,TRIM2#
main74220-0K060-C3i202006-202201
BLACK,TRIM2#
main74220-0K060-D2supersedes 74220-0K050-D0i202006-202108
MAROON,TRIM3#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
main74220-0K080-C2i202006-202201
BLACK,TRIM2#
main74220-0K140-C0i202011-202110
BLACK,TRIM2#
main74220-0K160-C0i202011-202110
BLACK,TRIM2#
main74220-0K170-C2i202011-202110
BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K190-C2i202011-202110
BLACK,TRIM2#; DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74220-0K230-C0i202009-202111
BLACK,TRIM2#
main74220-0K240-C2i202009-202109
BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K270-C3supersedes 74220-0K260-C0i202009-202111
BLACK,TRIM2#
main74220-0K290-C2i202009-202111
BLACK,TRIM2#
main74220-0K440-C0i202006-202108
BLACK,TRIM2#; DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
main74220-0K150-C1i202011-202110
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K260-C0i202009-202109
BLACK,TRIM2#; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&DOOR TRIM-FABRIC & WITHOUT(*PW),BLACK,TRIM2#
main74220-0K450-C0i202009-202109
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#; DOOR TRIM-LEATHER(MLM),BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-0K591supersedes 74231-0K580i202006-202109
main74231-0K600i202006-202108
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main74231-0K611i202006-202301
main74231-0K620i202006-202110
main74231-0K640i202006-202110
main74231-0K651i202006-202108
main74231-0K660i202006-202110
main74231-0K671i202006-202108
DOOR TRIM-FABRIC & PAINT(SILVER)
main74231-0K720supersedes 74231-0K710i202011-202110
DOOR TRIM-FABRIC & PAINT(SILVER)
main74231-0K770i202009-202109
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main74231-0K790i202009-202111
main74231-0K800i202009-202111
main74231-0K810supersedes 74231-0KA80i202009-202111
main74231-0KA90i202009-202111
main74231-0KB60i202006-202108
main74231-0KB80i202009-202110
main74231-0KC00i202106-202201
main74231-0K580i202009-202109
OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
main74231-0K710i202011-202110
DOOR TRIM-FABRIC & PAINT(BLACK); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main74231-0KA80i202009-202109
DOOR TRIM-FABRIC & PAINT(SILVER); DOOR TRIM-LEATHER & PAINT(SILVER)
main74231-0KB10i202009-202109
DOOR TRIM-LEATHER & PAINT(SILVER)
main74231-0KB70i202009-202109
OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-0K591i202006-202108
OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)&DOOR TRIM-FABRIC & PAINT(SILVER)
main74232-0K600i202006-202110
main74232-0K611i202006-202108
DOOR TRIM-FABRIC & PAINT(SILVER)
main74232-0K620i202006-202108
main74232-0K651i202006-202301
main74232-0K660i202006-202108
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main74232-0K671i202006-202108
DOOR TRIM-FABRIC & PAINT(SILVER)
main74232-0K700i202011-202110
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
main74232-0K740supersedes 74232-0K730i202011-202110
DOOR TRIM-FABRIC & PAINT(SILVER)
main74232-0K770i202009-202109
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&DOOR TRIM-FABRIC & PAINT(BLACK)
main74232-0K790i202009-202111
main74232-0K800i202009-202111
main74232-0K810i202009-202111
main74232-0K820i202009-202111
main74232-0K840i202109-202111
main74232-0KB70i202009-202110
main74232-0KB90i202106-202201
main74232-0K640i202006-202108
OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
main74232-0K730i202011-202110
DOOR TRIM-FABRIC & PAINT(BLACK); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main74232-0KA60i202009-202109
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&DOOR TRIM-LEATHER & PAINT(SILVER)
main74232-0KB20i202006-202109
OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
main74232-0KB40i202006-202108
DOOR TRIM-FABRIC & PAINT(SILVER)
74250ARMREST ASSY, REAR RH
main74250-0K010-C0i202006-202201
BLACK,TRIM2#
main74250-0K020-C3i202006-202201
BLACK,TRIM2#
main74250-0K020-D2supersedes 74250-0K010-D0i202006-202108
MAROON,TRIM3#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
main74250-0K040-C2i202006-202201
BLACK,TRIM2#
main74250-0K100-C0i202011-202110
BLACK,TRIM2#
main74250-0K110-C2i202011-202110
BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74250-0K130-C2i202011-202110
BLACK,TRIM2#; DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74250-0K180-C3supersedes 74250-0K170-C0i202009-202111
BLACK,TRIM2#
main74250-0K200-C2i202009-202111
BLACK,TRIM2#
main74250-0K170-C0i202009-202109
BLACK,TRIM2#; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&DOOR TRIM-FABRIC & WITHOUT(*PW),BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
main74260-0K010-C0i202006-202201
BLACK,TRIM2#
main74260-0K020-C3i202006-202201
BLACK,TRIM2#
main74260-0K020-D2supersedes 74260-0K010-D0i202006-202108
MAROON,TRIM3#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
main74260-0K040-C2i202006-202301
BLACK,TRIM2#
main74260-0K100-C0i202011-202110
BLACK,TRIM2#
main74260-0K110-C2i202011-202110
BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74260-0K130-C2i202011-202110
BLACK,TRIM2#; DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74260-0K180-C3supersedes 74260-0K170-C0i202009-202111
BLACK,TRIM2#
main74260-0K200-C2i202009-202111
BLACK,TRIM2#
main74260-0K170-C0i202009-202109
BLACK,TRIM2#; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&DOOR TRIM-FABRIC & WITHOUT(*PW),BLACK,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-0K310i202006-202110
main74271-0K321i202006-202301
main74271-0K370supersedes 74271-0K360i202011-202110
DOOR TRIM-FABRIC & PAINT(SILVER)
main74271-0K390i202009-202111
main74271-0K400i202009-202111
main74271-0K480i202009-202110
main74271-0K510i202106-202201
main74271-0K360i202011-202110
DOOR TRIM-FABRIC & PAINT(BLACK); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-0K310i202006-202110
main74272-0K321i202006-202301
main74272-0K370supersedes 74272-0K360i202011-202110
DOOR TRIM-FABRIC & PAINT(SILVER)
main74272-0K390i202009-202111
main74272-0K400i202009-202111
main74272-0K480i202009-202110
main74272-0K500i202106-202201
main74272-0K360i202011-202110
DOOR TRIM-FABRIC & PAINT(BLACK); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & WITH(*SITL); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
90467T0034
main90467-T0034

9 parts on this diagram · 2 diagrams in section
