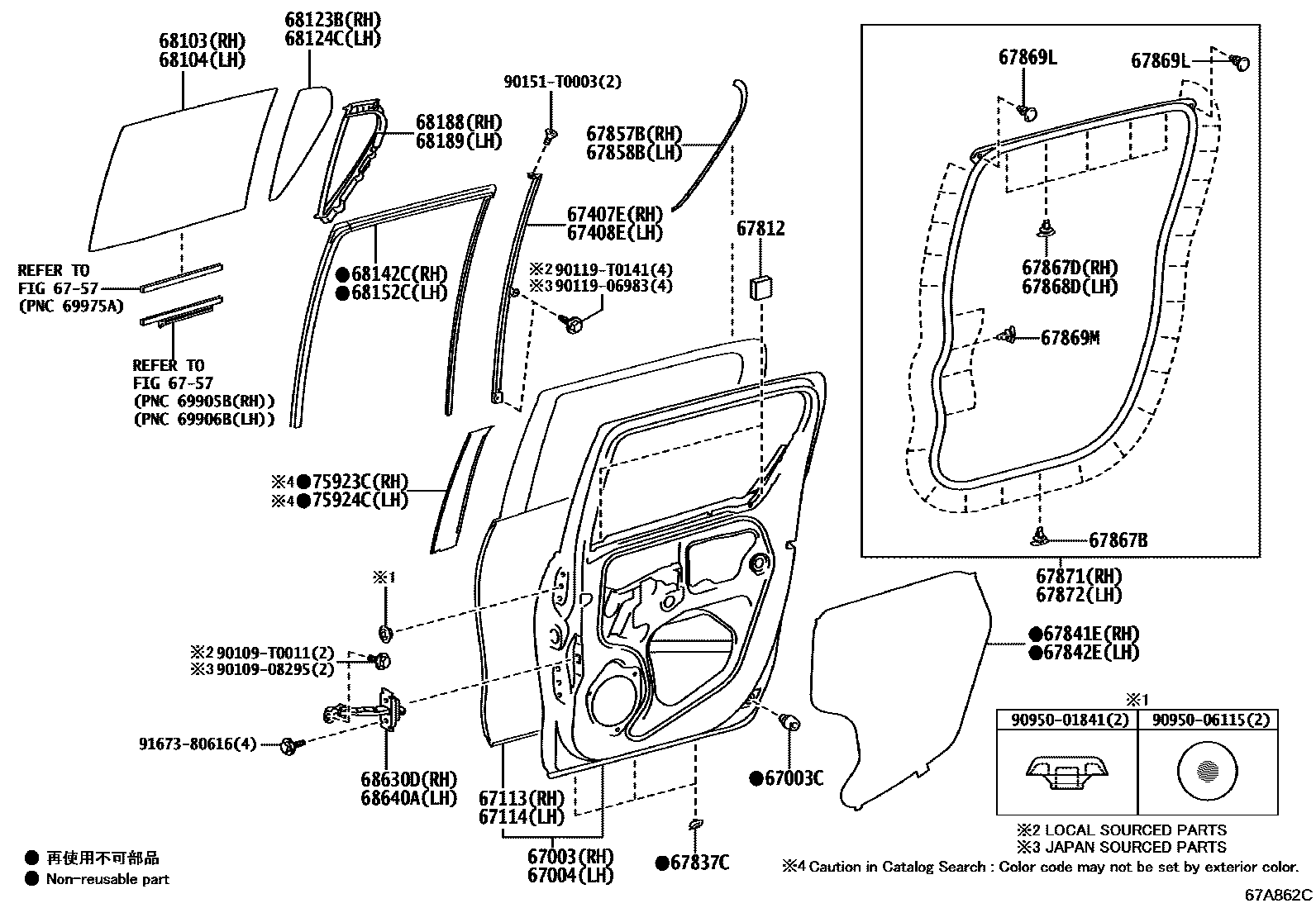

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM,W(POWER WINDOW) 0004 1DOOR TRIM,W/O(POWER WINDOW) 0005 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-KK011iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

67003CCUSHION, REAR DOOR PANEL

main90541-09131×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-KK011iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

67113PANEL, REAR DOOR, OUTER RH

main67113-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

67114PANEL, REAR DOOR, OUTER LH

main67114-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0K100iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0K100iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

6757REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-57

67812PAD, REAR DOOR SILENCER

main69759-0K030×4iGGN125,GUN120,122,125,126,13#,TGN120,121,126,136..MD,MMD,TD202006-202301

main69759-0K060×4iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K091×6iGUN120,122,125,126,13#,TGN121..TD..(ARL,TH)202006-202108

main67837-0K092×4iGUN120,122,125,126,13#..TX; GUN122..RHD..TD..GEN;GGN125,GUN122,125,126,TGN121,126..TD..(H,S)..GCC; GUN125..LHD..TD..L..(GCC,GEN);GUN122,TGN120,121,126..TD..L..GCC202006-202108

SPEAKER-2SPEAKER; SPEAKER-4SPEAKER,PLANT TMT

main67837-0K102×6iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main67837-0K121×6iGUN126..(H,S)..PKN202011-202201

EXCEPT PLANT TMT

main67837-0K210×6iGUN125,126..MD202009-202110

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0K130iGUN125..TD..L..LA;GUN122,TGN121..TD..L..GEN;GUN125..RHD..TD..L..(GEN,IDN);GUN135,TGN126..TD..(GEN,LA,PH,TH,VN);GUN135,TGN126..(SD,TD)..(H,S)..(GCC,SA);GUN122,125,LAN125,TGN121..(MD,SD,TD)..(H,S);GGN125,GUN120,126,136,TGN136..KD,MD,MMD,SD,TD202006-202301

main67841-0K140iGUN125..LHD..L..GEN;GUN135..(SD,TD)..L..(ARL,SA);GUN122,125,LAN125,TGN120,121,126..(GD,KD,MD,SD,TD)..L..(ARL,GCC,GHA,KEN,MA,PH,SA,TH)202006-202111

main67841-0K150iGUN126..(H,S)..PKN202106-202201

main67841-0K190iGUN126..PD..L202106-202201

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0K010iGUN125..TD..L..LA;GUN122,TGN121..TD..L..GEN;GUN125..RHD..TD..L..(GEN,IDN);GUN135,TGN126..TD..(GEN,LA,PH,TH,VN);GUN135,TGN126..(SD,TD)..(H,S)..(GCC,SA);GUN122,125,LAN125,TGN121..(MD,SD,TD)..(H,S);GGN125,GUN120,126,136,TGN136..KD,MD,MMD,SD,TD202006-202301

main67842-0K020iGUN125..LHD..L..GEN;GUN135..(SD,TD)..L..(ARL,SA);GUN122,125,LAN125,TGN120,121,126..(GD,KD,MD,SD,TD)..L..(ARL,GCC,GHA,KEN,MA,PH,SA,TH)202006-202111

main67842-0K060iGUN126..(H,S)..PKN202106-202201

main67842-0K080iGUN126..PD..L202106-202201

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-0K030iTGN126..(H,S)..GEN202006-202108

main67857-0K080iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main67857-0K090iGUN125,126,13#..SX202009-202109

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0K030iTGN126..(H,S)..GEN202006-202108

main67858-0K080iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main67858-0K090iGUN125,126,13#..SX202009-202109

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12150×46iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52010×5iGUN126..PD202006-202201

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-52010×4iGUN120,122,125,126,13#..SX,TX202006-202109

main67867-52030×5iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-0K010×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main9004A-46317×4iGUN126202212-202301

main90467-06084×4iGUN125,126..GHA202006-202111

67869MCLIP, DOOR WEATHERSTRIP

main67867-0K020×8iGGN125,GUN120,122,125,126,13#,TGN120,121,126,136..MMD,TD202006-202301

main67867-50050×8iGGN125,GUN125,126,13#,TGN126,128,13#..AD202009-202110

main67869-20030×2iGUN120,122,125,126,13#..SX,TX202006-202109

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0K080iGGN125,GUN120,122,125,126,13#,TGN120,121,126,136..MMD,TD202006-202105

main67871-0K081iGUN126..PD202106-202201

main67871-0K110iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SD202009-202102

main67871-0K111iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202103-202111

main67871-0K120iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main67871-0K200iGUN125,126..MD202009-202102

main67871-0K201iGUN125,126..MD202103-202110

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0K080iGGN125,GUN120,122,125,126,13#,TGN120,121,126,136..MMD,TD202006-202105

main67872-0K081iGUN126..PD202106-202201

main67872-0K110iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SD202009-202102

main67872-0K111iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202103-202111

main67872-0K120iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main67872-0K200iGUN125,126..MD202009-202102

main67872-0K201iGUN125,126..MD202103-202110

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0K210iGUN126,136..TD..(L,S);GGN125,GUN120,122,125,135,TGN120,121,126,136..TD;GUN126,136..(MMD,TD)..H..(GCC,GEN,LA,MMR,PH,TH,VN)202006-202301

main68113-0K220iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main68113-0K230iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main68113-0K240iGUN126,136..TD..H..(ARL,TWN); GUN126..LHD..6FC..H..GEN202006-202108

BACK GLASS-FIX TYPE(PRIVACY)

main68113-0K380iGUN125,126..MD202009-202110

main68113-0K470iGUN126..PD202106-202201

main68113-0K250iGGN125,GUN125,126,13#,LAN125,TGN126,136..SD..(H,S)202009-202109

BACK GLASS-SLIDING TYPE(PRIVACY)

main68113-0K410iGGN125,GUN122,125,126,TGN121,126..H..GCC202006-202108

BACK GLASS-SLIDING TYPE(GREEN, *HSEA)

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0K210iGUN126,136..TD..(L,S);GGN125,GUN120,122,125,135,TGN120,121,126,136..TD;GUN126,136..(MMD,TD)..H..(GCC,GEN,LA,MMR,PH,TH,VN)202006-202301

main68114-0K220iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main68114-0K230iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main68114-0K240iGUN126,136..TD..H..(ARL,TWN); GUN126..LHD..6FC..H..GEN202006-202108

BACK GLASS-FIX TYPE(PRIVACY)

main68114-0K380iGUN125,126..MD202009-202110

main68114-0K470iGUN126..PD202106-202201

main68114-0K250iGGN125,GUN125,126,13#,LAN125,TGN126,136..SD..(H,S)202009-202109

BACK GLASS-SLIDING TYPE(PRIVACY)

main68114-0K410iGGN125,GUN122,125,126,TGN121,126..H..GCC202006-202108

BACK GLASS-SLIDING TYPE(GREEN, *HSEA)

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0K231iGUN126,136..TD..(L,S);GGN125,GUN120,122,125,135,TGN120,121,126,136..TD;GUN126,136..(MMD,TD)..H..(GCC,GEN,LA,MMR,PH,TH,VN)202006-202301

main68123-0K241iGUN126,136..TD..H..(ARL,TWN); GUN126..LHD..6FC..H..GEN202006-202108

BACK GLASS-FIX TYPE(PRIVACY)

main68123-0K250iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main68123-0K270iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main68123-0K280iGUN125,126..MD202009-202110

main68123-0K380iGUN126..PD202106-202201

main68123-0K260iGGN125,GUN125,126,13#,LAN125,TGN126,136..SD..(H,S)202009-202109

BACK GLASS-SLIDING TYPE(PRIVACY)

main68123-0K330iGGN125,GUN122,125,126,TGN121,126..H..GCC202006-202108

BACK GLASS-SLIDING TYPE(GREEN, *HSEA)

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0K231iGUN126,136..TD..(L,S);GGN125,GUN120,122,125,135,TGN120,121,126,136..TD;GUN126,136..(MMD,TD)..H..(GCC,GEN,LA,MMR,PH,TH,VN)202006-202301

main68124-0K241iGUN126,136..TD..H..(ARL,TWN); GUN126..LHD..6FC..H..GEN202006-202108

BACK GLASS-FIX TYPE(PRIVACY)

main68124-0K250iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main68124-0K270iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main68124-0K280iGUN125,126..MD202009-202110

main68124-0K380iGUN126..PD202106-202201

main68124-0K260iGGN125,GUN125,126,13#,LAN125,TGN126,136..SD..(H,S)202009-202109

BACK GLASS-SLIDING TYPE(PRIVACY)

main68124-0K330iGGN125,GUN122,125,126,TGN121,126..H..GCC202006-202108

BACK GLASS-SLIDING TYPE(GREEN, *HSEA)

68142CRUN, REAR DOOR GLASS, RH

main68142-0K080iGUN126..PD202006-202201

main68142-0K100iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main68142-0K110iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

68152CRUN, REAR DOOR GLASS, LH

main68152-0K080iGUN126..PD202006-202201

main68152-0K100iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main68152-0K110iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0K111iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MMD,SD,TD202006-202301

main68188-0K141iGUN125,126..MD202009-202110

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0K111iGUN126..PD202006-202201

main68189-0K141iGUN125,126..MD202009-202110

68630DCHECK ASSY, REAR DOOR, RH

main68630-0K080iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main68630-0K091iGUN126..PD202006-202201

main68630-0K100iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

68640ACHECK ASSY, REAR DOOR, LH

main68630-0K080iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main68630-0K091iGGN125,GUN120,122,125,126,13#,TGN120,121,126,136..MD,MMD,TD202006-202301

main68630-0K100iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

75923CTAPE, BLACK OUT, NO.2 RH

main75923-0K030iGUN126..(H,S)..PKN202006-202201

main75923-0K040iGGN125,GUN125,126,13#,TGN126,128,13#..AD..(H,S)202011-202110

main75923-0K090iGUN125..S..GHA;GGN125,GUN125,126,136..(GD,KD,SD)..H202009-202111

75924CTAPE, BLACK OUT, NO.2 LH

main75924-0K030iGUN126..(H,S)..PKN202006-202201

main75924-0K040iGGN125,GUN125,126,13#,TGN126,128,13#..AD..(H,S)202011-202110

main75924-0K090iGUN125..S..GHA;GGN125,GUN125,126,136..(GD,KD,SD)..H202009-202111

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

90151T0003

main90151-T0003

9095001841

main90950-01841

9095006115

main90950-06115

9167380616

main91673-80616

41 parts on this diagram · 5 diagrams in section
