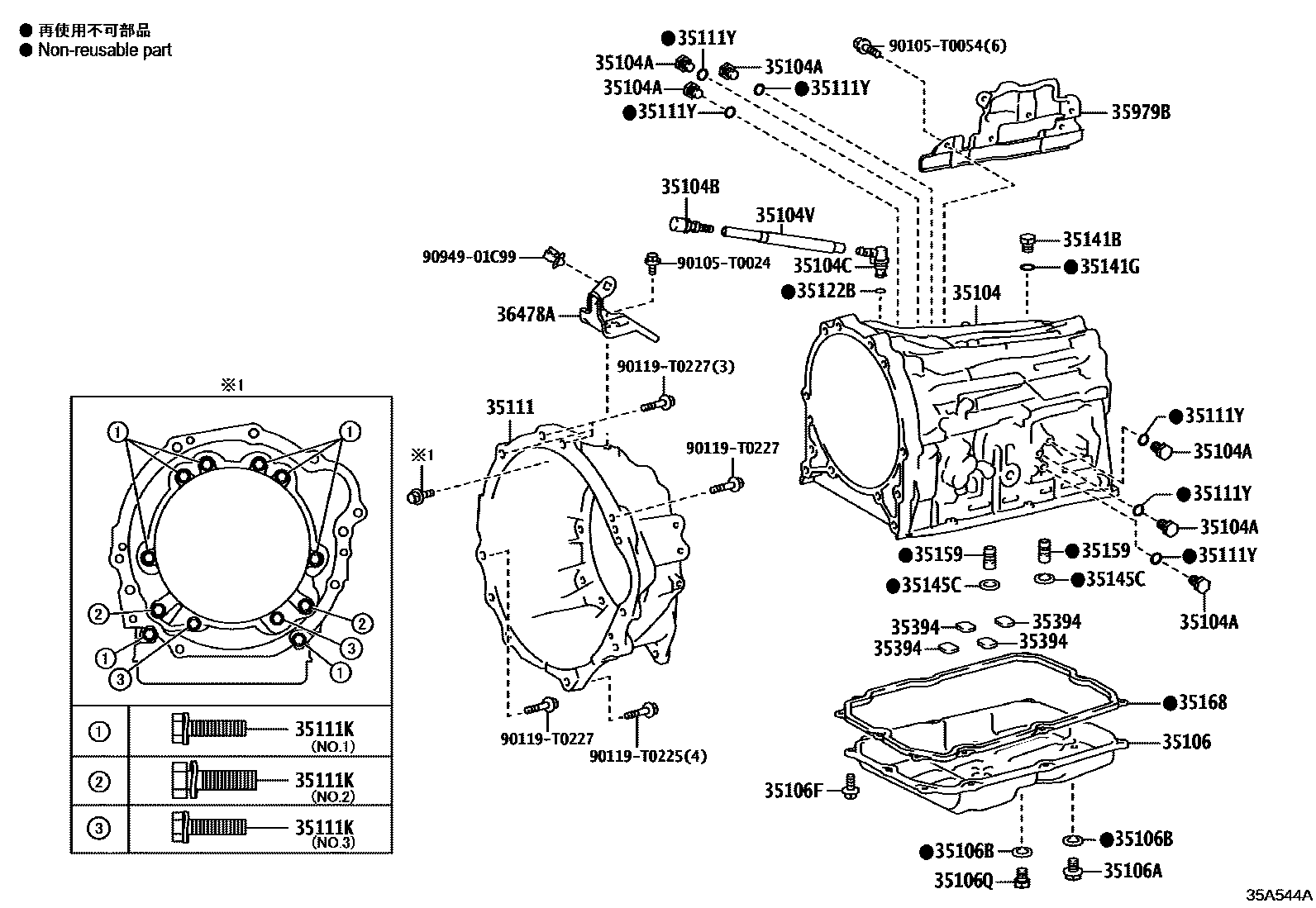

TRANSMISSION CASE & OIL PAN (ATM)

0001 1AC60F 0002 1AC60E,AC60F 0003 1AC60E,AC60F

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0K010iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..6FC..GCC;GUN126..TX..6FC..TH;GUN135..6FC..(L,S)..TH;GUN135..TD..6FC..H..TH; GUN126..TD..6FC..TH202006-202108

(L); TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT,(L)

main35104-71020iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..TD..6FC..TH202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×6iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03211iGUN126..GHA202009-202111

main90930-T3004iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03220iGGN125,GUN125,126,13#,TGN126..6FC..(KEN,PKN,SA)202009-202201

main90930-T3006iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

35104VHOSE (FOR BREATHER PLUG)

main90447-11078iTGN121,126,128,138..6FC202006-202110

main90447-11079iGGN125202006-202110

main90447-11080iGUN125,126..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202006-202301

main90447-11081iGUN120,13#..6FC202006-202110

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0K010iGUN126..(MD,MMD,TD)..6FC..(MA,MMR,TH);GGN125,GUN125,136,TGN121,126..(MD,TD,TS,TX)..6FC202006-202301

main35106-71050iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..TD..6FC..TH202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGUN126..6FC..PKN202006-202201

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..6FC..GCC;GUN126..TX..6FC..TH;GUN135..6FC..(L,S)..TH;GUN135..TD..6FC..H..TH; GUN126..TD..6FC..TH202006-202108

TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06A02×10iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0K010iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..6FC..GCC;GUN126..TX..6FC..TH;GUN135..6FC..(L,S)..TH;GUN135..TD..6FC..H..TH; GUN126..TD..6FC..TH202006-202108

(L); TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT,(L)

main35111-0K020iTGN121,126..(TD,TS)..6FC202006-202108

main35111-0K030iGGN125..GCC202006-202108

main35111-71030iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..TD..6FC..TH202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35111-71040iTGN126,128,138..6FC..(BZAG,SA)202009-202110

main35111-71050iGGN125..AD,SD202009-202110

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-08C62iGUN125,13#..6FC;GGN125,GUN120,126,TGN126..(TD,TS,TX)..6FC202006-202110

*8-1.25PX30-23.5

main90119-10232×8iGUN126..6FC..PKN202006-202201

*10-1.5PX35-30,NO.1:REFER ILLUST.

main90119-10947×2iGUN126..GHA202006-202111

*10-1.50PX35-29.3,NO.3:REFER ILLUST.

main90119-12378×2iGUN126..GHA202006-202111

*12-1.75PX38-30,NO.2:REFER ILLUST.

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×6iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..TD..6FC..TH202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90301-T0067×6iGUN126..(MD,MMD,TD)..6FC..(MA,MMR,TH);GGN125,GUN125,136,TGN121,126..(MD,TD,TS,TX)..6FC202006-202301

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-08015iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..TD..6FC..TH202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90301-T0070iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..6FC..GCC;GUN126..TX..6FC..TH;GUN135..6FC..(L,S)..TH;GUN135..TD..6FC..H..TH; GUN126..TD..6FC..TH202006-202108

(L); TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT,(L)

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..TD..6FC..TH202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90301-T0069iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..6FC..GCC;GUN126..TX..6FC..TH;GUN135..6FC..(L,S)..TH;GUN135..TD..6FC..H..TH; GUN126..TD..6FC..TH202006-202108

(L); TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT,(L)

35145CGASKET, TRANSAXLE CASE

main35145-60020×2iGUN126..6FC..PKN202006-202201

35159GASKET, BRAKE DRUM

main35159-0K010×2iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..6FC..GCC;GUN126..TX..6FC..TH;GUN135..6FC..(L,S)..TH;GUN135..TD..6FC..H..TH; GUN126..TD..6FC..TH202006-202108

(L); TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT,(L)

main35159-71010×2iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..TD..6FC..TH202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35168-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202110

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35979BINSULATOR, TRANSMISSION, RH

main35979-0K010iGUN126..6FC..PKN202006-202201

main35979-0K020iGUN125,126,13#..AD..6FC202011-202110

36478ABRACKET, TRANSMISSION BREATHER

main36478-0K030iGGN125202006-202110

main36478-0K040iTGN121,126,128,138..6FC202006-202110

main36478-0K060iGUN125,126..AD..6FC202006-202110

90105T0024

main90105-T0024

90105T0054

main90105-T0054

90119T0225

main90119-T0225

90119T0227

main90119-T0227

9094901C99

main90949-01C99
